Removal

ENGINE IMMOBILISER: TRANSPONDER KEY ECU (w/o Smart Key System): REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Removal

HINT
Refer to the procedures from "Remove Instrument Panel Safety Pad Assembly".

2. REMOVE AIR CONDITIONER UNIT ASSEMBLY

Removal

HINT
Refer to the procedures from "Remove Air Conditioner Unit Assembly".

3. REMOVE TRANSPONDER KEY ECU ASSEMBLY

(a) Disconnect the connector.

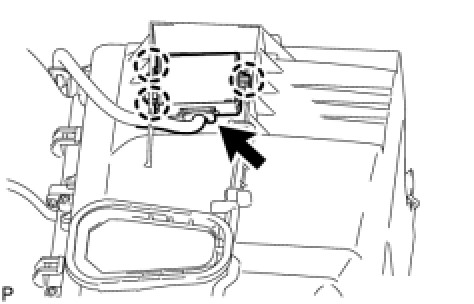

(b) Disengage the 3 claws and remove the transponder key ECU assembly.
