Alarm Horn: Testing and Inspection
THEFT DETERRENT: SECURITY HORN ASSEMBLY: INSPECTION
1.
INSPECT SECURITY HORN ASSEMBLY
(a)
Check operation of the horn.

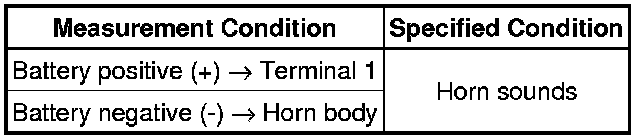

Standard:
If the result is not as specified, replace the security horn assembly.
