P2770

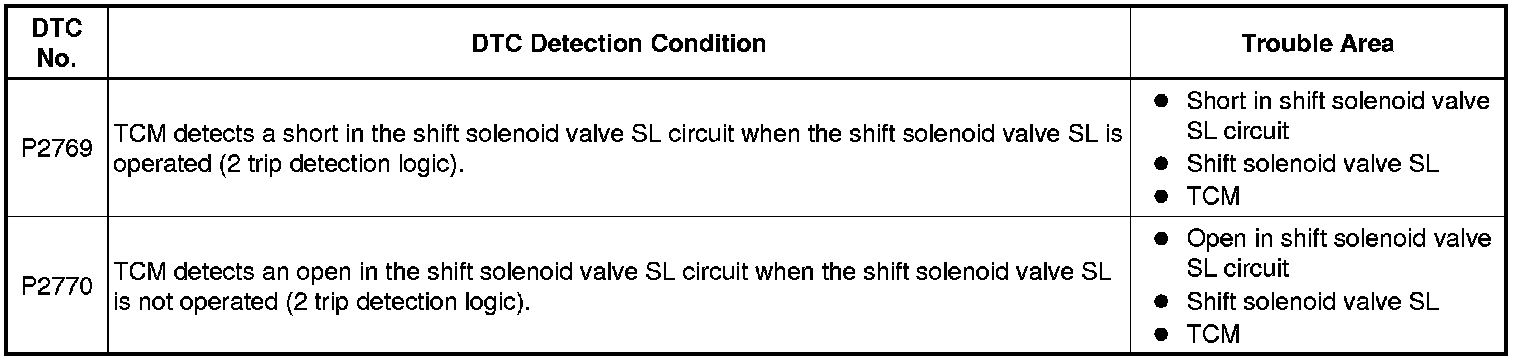

U760E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P2769,P2770: Short in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL)
P2770 - Open in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL)

DESCRIPTION

Shift solenoid valve SL is turned on and off by signals from the TCM to control the hydraulic pressure acting on the lock-up relay valve, which then controls operation of the lock-up clutch.





Fail-safe function:

If the TCM detects a malfunction, it turns shift solenoid valve SL off.

MONITOR DESCRIPTION

Based on the signals from the throttle position sensor, the air flow meter and the crankshaft position sensor, the TCM sends a signal to shift solenoid valve SL to regulate the hydraulic pressure and provide smoother torque converter clutch engagement. Shift solenoid valve SL responds to commands from the TCM. The valve controls the lock-up relay valve to perform the torque-converter lock-up function. If the TCM detects an open or short circuit for shift solenoid valve SL, it will illuminate the MIL.

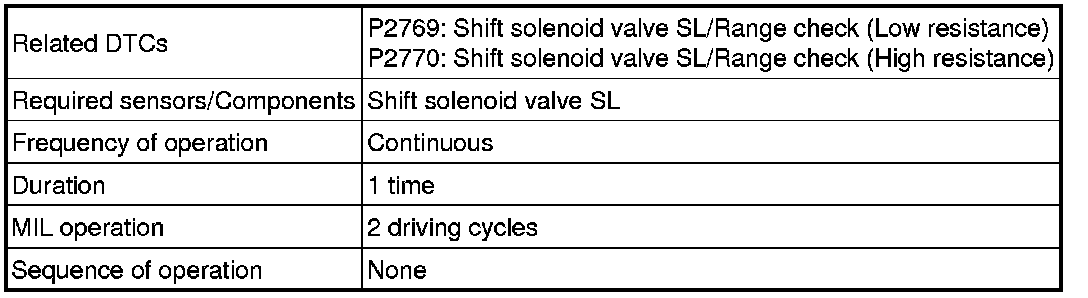

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

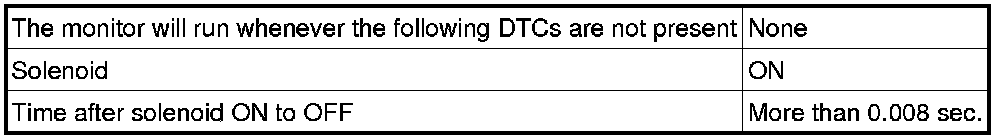

P2769: Range check (Low resistance):

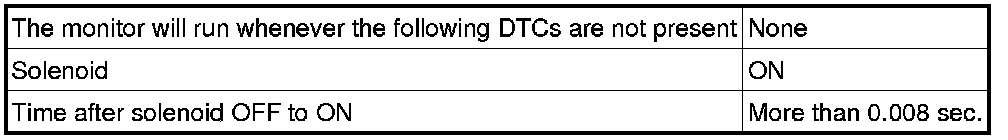

P2770: Range check (High resistance):





TYPICAL MALFUNCTION THRESHOLDS

P2769: Range check (Low resistance):





P2770: Range check (High resistance):





COMPONENT OPERATING RANGE





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

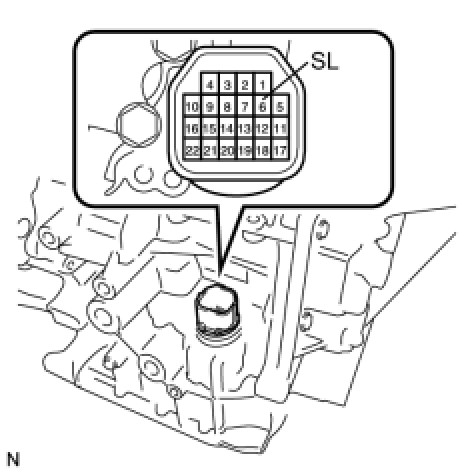

1. INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SL)

(a) Remove the TCM from the transaxle.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Result:





B -- REPLACE TCM Removal
A -- Continue to next step.

2. INSPECT SHIFT SOLENOID VALVE SL

(a) Remove shift solenoid valve SL.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE SHIFT SOLENOID VALVE SL Removal

OK -- REPLACE TRANSMISSION WIRE Removal
