P2716

U760E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)
P2716 - Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

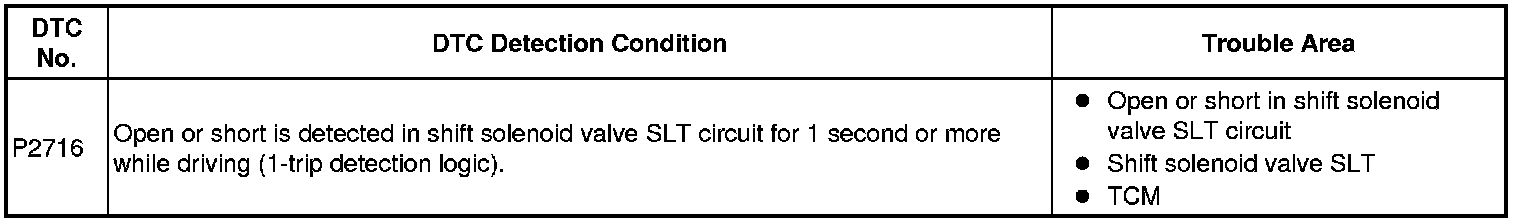

DESCRIPTION

Refer to DTC P2714 P2714.





MONITOR DESCRIPTION

When an open or short in the linear solenoid valve (SLT) circuit is detected, the TCM interprets this as a fault. The TCM will turn on the MIL and store the DTC.

MONITOR STRATEGY

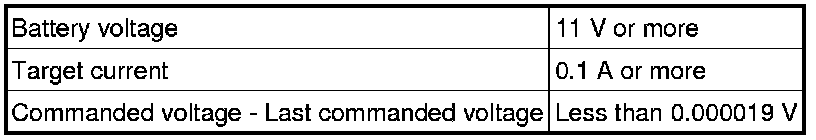

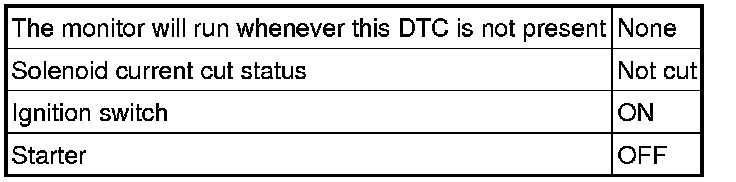

TYPICAL ENABLING CONDITIONS

ALL:





Malfunction (A):





Malfunction (B):





Malfunction (C):





Malfunction (D):





Malfunction (E):





TYPICAL MALFUNCTION THRESHOLDS

Malfunction (A) and (B):





Malfunction (C):





Malfunction (D):





Malfunction (E):





COMPONENT OPERATING RANGE

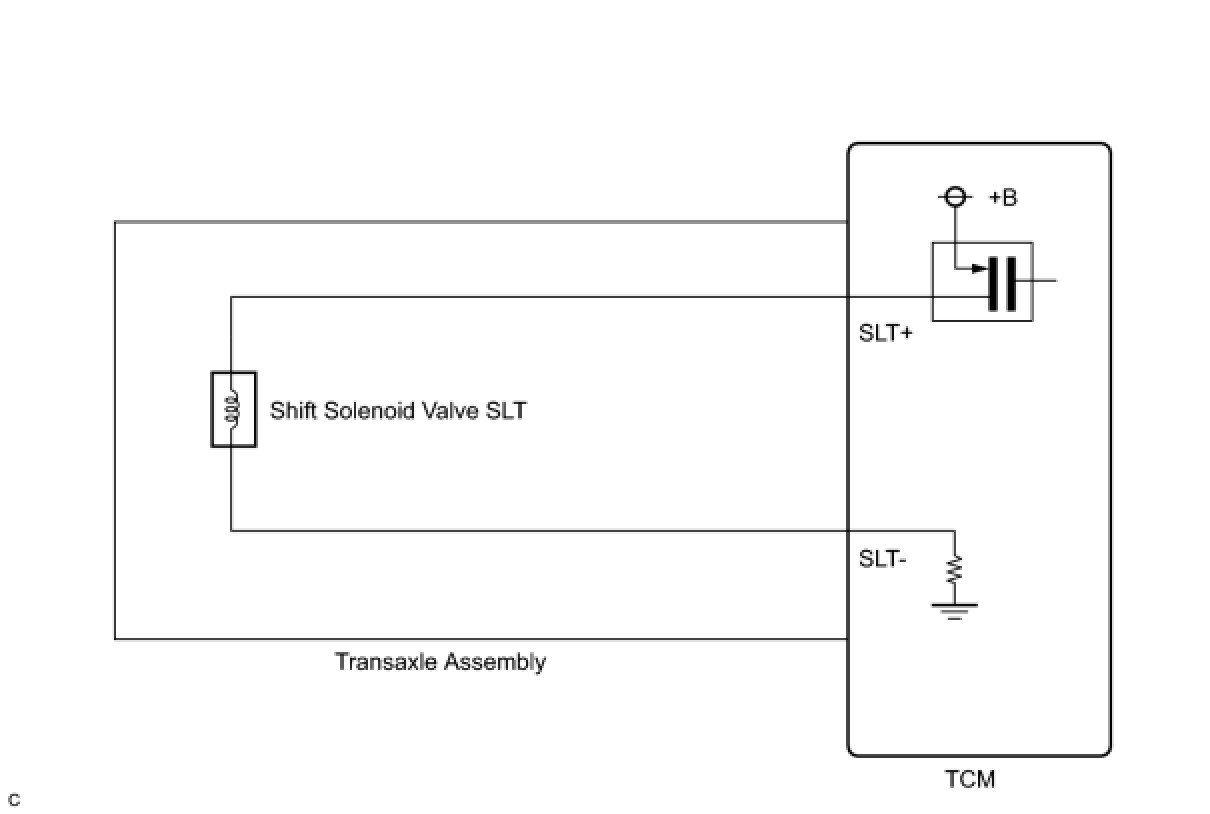

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

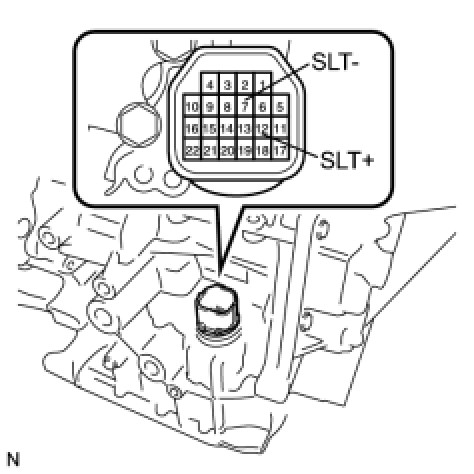

1. INSPECT TRANSMISSION WIRE (SLT)

(a) Remove the TCM from the transaxle.

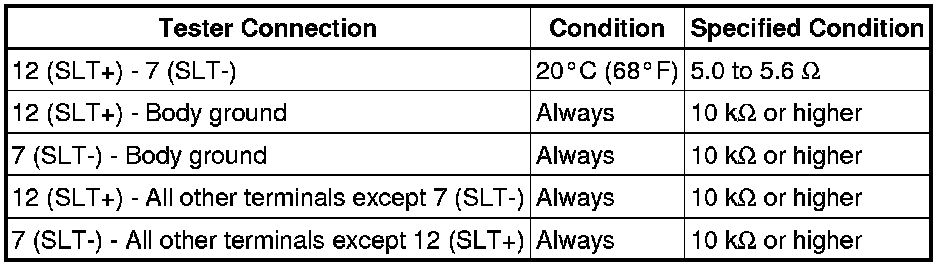

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Result:





B -- REPLACE TCM Removal
A -- Continue to next step.

2. INSPECT SHIFT SOLENOID VALVE SLT

(a) Remove shift solenoid valve SLT.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Connect a battery positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating sound.

OK:

Valve moves and makes an operating sound.

NG -- REPLACE SHIFT SOLENOID VALVE SLT Removal

OK -- REPLACE TRANSMISSION WIRE Removal
