P2010
2AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2009,P2010: Intake Manifold Runner Control Circuit Low (Bank 1)
DESCRIPTION
The ECM activates the DC motor for the tumble control valve, which opens and closes the tumble control valve. The ECM activates the DC motor based on engine speed, coolant temperature, intake air temperature and other conditions.
MONITOR DESCRIPTION

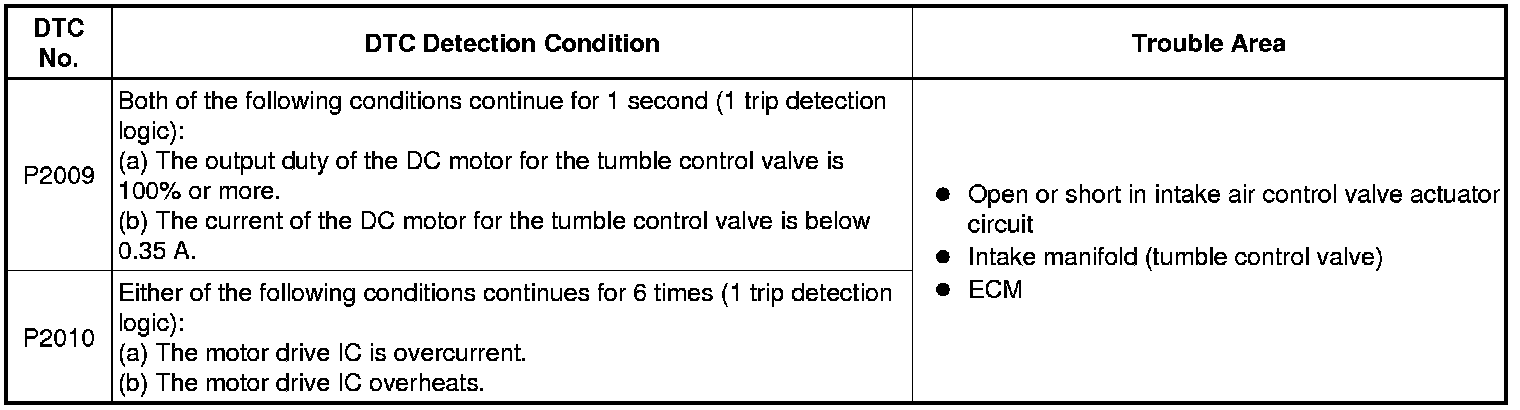

When the voltage of the DC motor deviates from the standard range, the ECM determines that a malfunction has occurred and outputs a DTC.

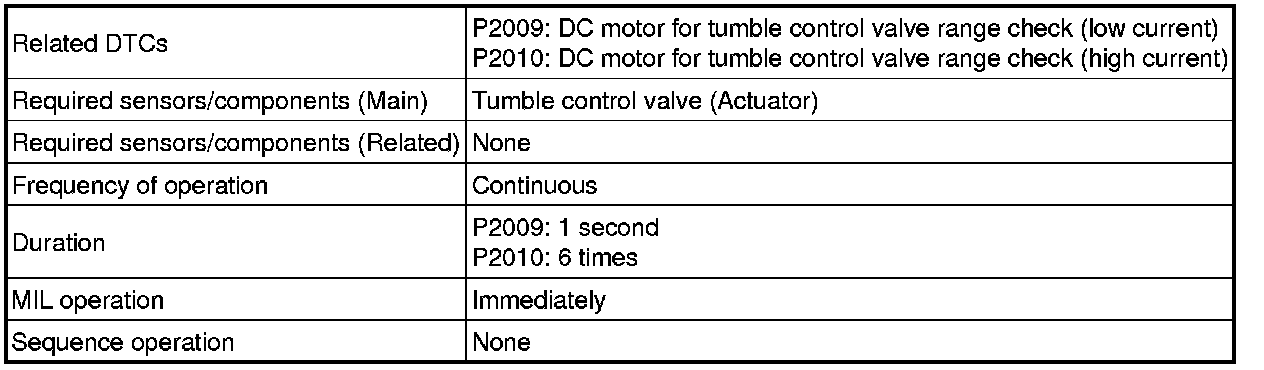

MONITOR STRATEGY

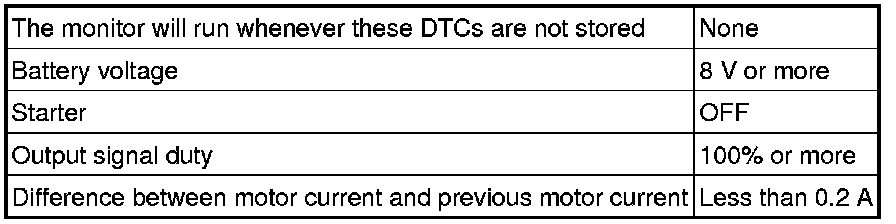

TYPICAL ENABLING CONDITIONS
P2009
P2010
TYPICAL MALFUNCTION THRESHOLDS
P2009
P2010
COMPONENT OPERATING RANGE
P2009
P2010

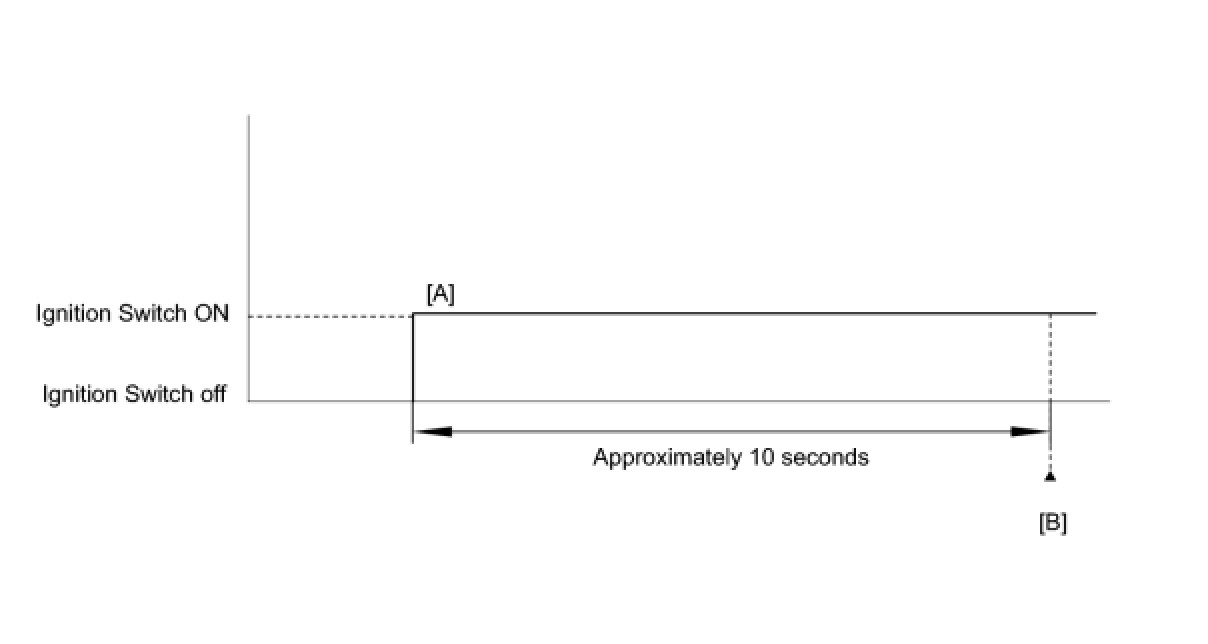

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON and turn the Techstream on [A].
7. Enter the following menus: Powertrain / Engine / Data List / Coolant Temp.
8. Check that the coolant temperature is 60°C (140°F) or higher.
9. Wait approximately 10 seconds.
10. Enter the following menus: Powertrain / Engine / Utility / All readiness.
11. Input the DTC: P2009 or P2010.
12. Check the DTC judgment result [B].
HINT
If the judgment result shows ABNORMAL, the system has a malfunction.
13. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
14. Read Pending DTCs.
HINT
If a pending DTC is output, the system is malfunctioning.
15. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Refer to DTC P2004 P2004.
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
PROCEDURE
1. INSPECT INTAKE AIR CONTROL VALVE ACTUATOR (FOR TUMBLE CONTROL VALVE)
(a) Inspect the intake air control valve actuator Testing and Inspection.
NG -- REPLACE INTAKE AIR CONTROL VALVE ACTUATOR Removal
OK -- Continue to next step.
2. INSPECT INTAKE MANIFOLD (TUMBLE CONTROL VALVE OPERATION)
(a) Inspect the intake manifold Intake System.
NG -- REPLACE INTAKE MANIFOLD Removal
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (ECM - INTAKE AIR CONTROL VALVE ACTUATOR)
(a) Disconnect the ECM connector.
(b) Disconnect the intake air control valve actuator connector.
(c) Measure the resistance according to the value(s) in the table below.

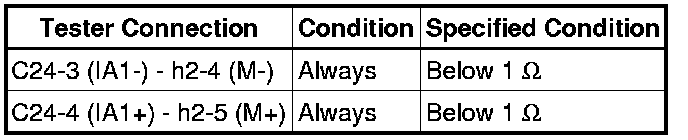

Standard Resistance (Check for Open):

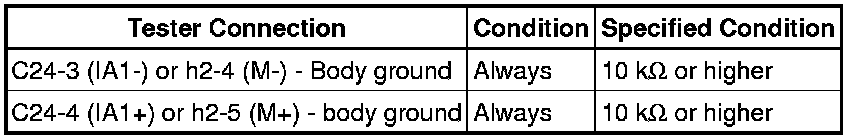

Standard Resistance (Check for Short):
(d) Reconnect the ECM connector.
(e) Reconnect the intake air control valve actuator connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK WHETHER DTC OUTPUT RECURS (DTC P2009 OR P2010)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
(f) Enter the following menus: Powertrain / Engine / Trouble Codes.
(g) Read the DTCs.

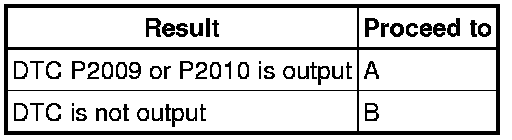

Result:
B -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
A -- REPLACE ECM Removal
