P0630

2AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0630: VIN not Programmed or Mismatch - ECM / PCM
P0630 - VIN not Programmed or Mismatch - ECM / PCM

MONITOR DESCRIPTION

DTC P0630 is stored when the Vehicle Identification Number (VIN) is not stored in the Engine Control Module (ECM) or the input VIN is not accurate. Input the VIN with the Techstream.

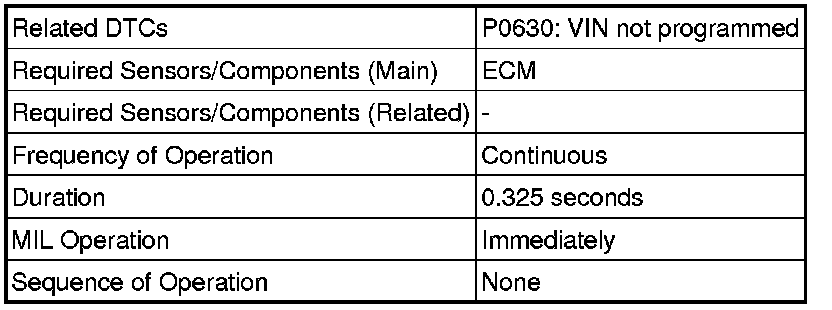

MONITOR STRATEGY

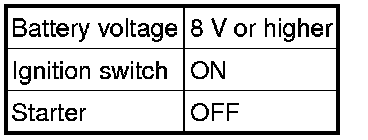

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the ignition switch off and wait for at least 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on [A].

6. Wait 5 seconds or more.

7. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

8. Input the DTC: P0630.

9. Check the DTC judgment result [B].





HINT
If the judgment result shows ABNORMAL, the system has a malfunction.

10. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

11. Read Pending DTCs.

HINT
If a pending DTC is output, the system is malfunctioning.

12. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0630)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

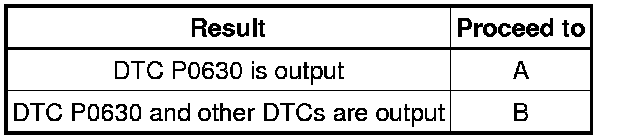

Result:





If any DTCs other than P0630 are output, troubleshoot those DTCs first.

NOTICE:
If P0630 is output, the VIN must be input into the ECM using the Techstream. However, all DTCs are cleared automatically by the Techstream when inputting the VIN. If DTCs other than P0630 are output, check them first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. INPUT VIN

(a) Input the VIN Programming and Relearning.

NEXT -- END
