Cruise Control System

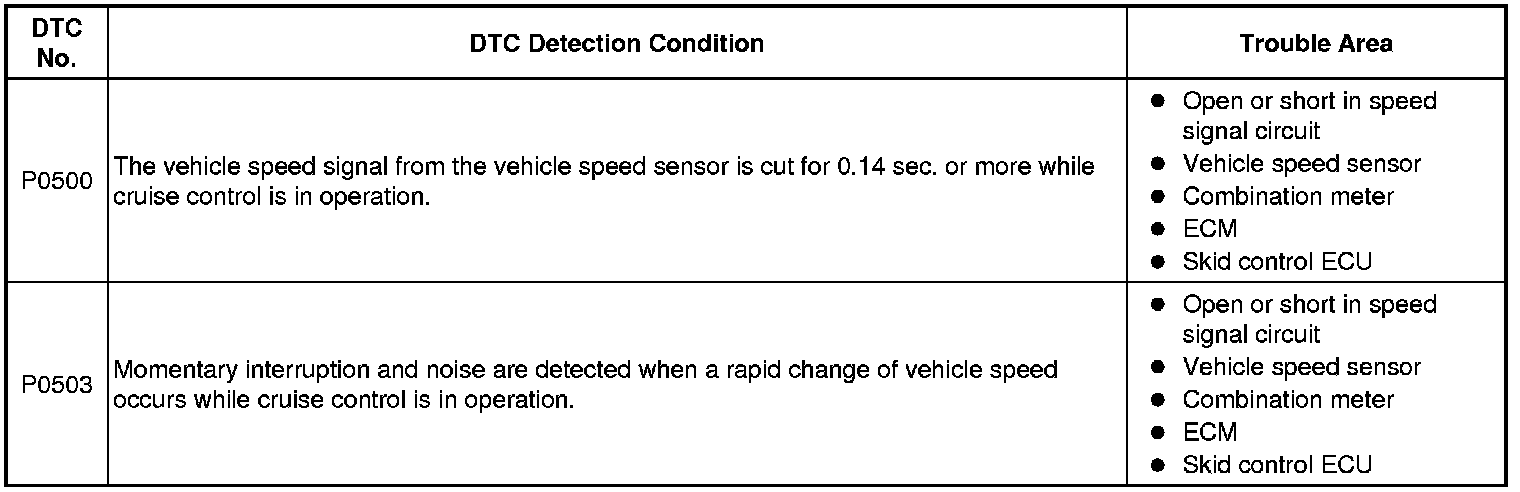

CRUISE CONTROL: CRUISE CONTROL SYSTEM: P0500,P0503: Vehicle Speed Sensor Malfunction


DESCRIPTION

The cruise control system uses the same vehicle speed signal that is sent to the ECM for the SFI system. If DTC P0500 is detected, perform the diagnosis using the inspection procedure for DTC P0500 in the SFI system P0500 for 2AR-FE, or P0500 for 2GR-FE). The speed signal is converted for use by the cruise control inside the ECM. Both the SFI system and the cruise control system can set DTC P0500, however, the detection conditions of the two systems are different.





WIRING DIAGRAM

Refer to the SFI system (for 2AR-FE) P0500.

Refer to the SFI system (for 2GR-FE) P0500.

INSPECTION PROCEDURE

Refer to the SFI system (for 2AR-FE) P0500.

Refer to the SFI system (for 2GR-FE) P0500.
