2AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0111: Intake Air Temperature Sensor Gradient Too High
P0111 - Intake Air Temperature Sensor Gradient Too High

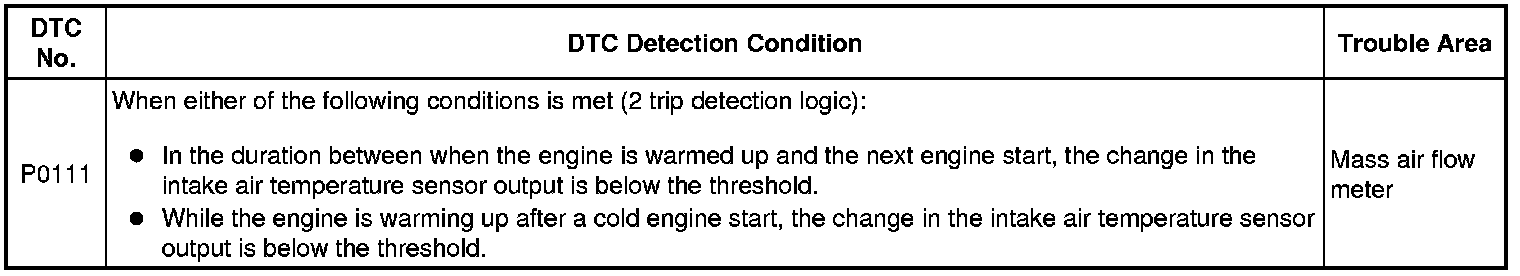

DESCRIPTION





- The intake air temperature sensor, mounted on the mass air flow meter, monitors the intake air temperature. The intake air temperature sensor has a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the intake air temperature is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (see Fig. 1).

- The intake air temperature sensor is powered by a 5 V supply from the THA terminal of the ECM, via resistor R.

- Resistor R and the intake air temperature sensor are connected in series. When the resistance value of the intake air temperature sensor changes, according to changes in the intake air temperature, the voltage at terminal THA also varies. Based on this signal, the ECM increases the fuel injection volume when the engine is cold to improve driveability.





MONITOR DESCRIPTION

After warmed engine stop

The ECM monitors the intake air temperature variation in the period from when the engine was warmed up on the previous trip until the next engine start. If the change in intake air temperature sensor output is less than the threshold, it is determined that a malfunction has occurred in the intake air temperature sensor. When this is detected, the MIL is illuminated and the DTC is stored.

After cold engine start

The monitor runs when the engine is started cold after 5 hours or more have elapsed since the engine stopped. If the intake air temperature sensor output variation until the engine has warmed up completely is less than the threshold, it is determined that a malfunction has occurred in the intake air temperature sensor. When this is detected in 2 consecutive driving cycles, the MIL is illuminated and the DTC is stored.

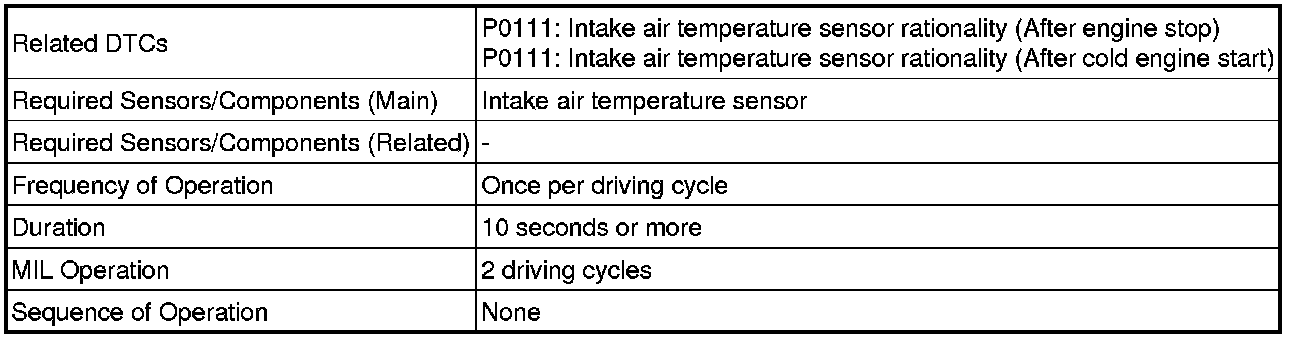

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

All

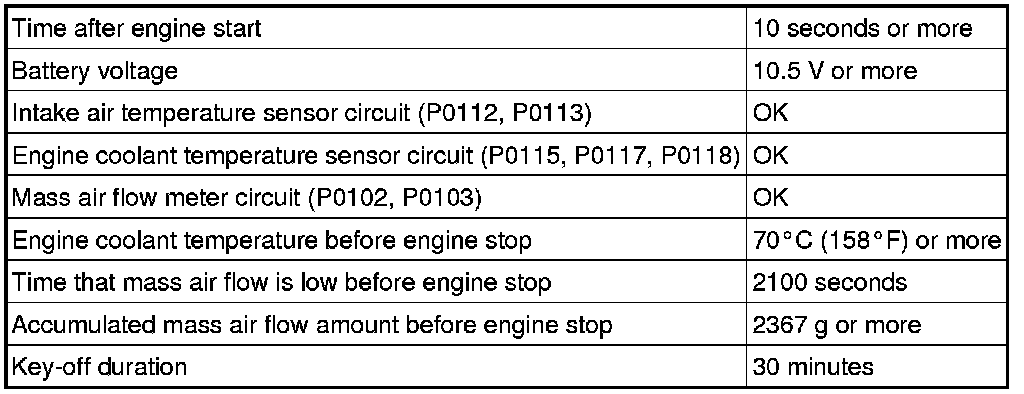

After engine stop

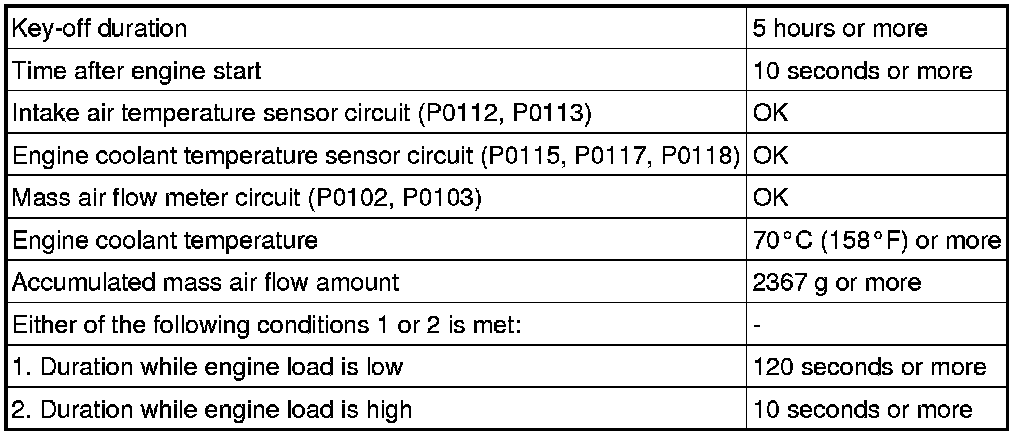

After cold engine start





TYPICAL MALFUNCTION THRESHOLDS

After engine stop





After cold engine start

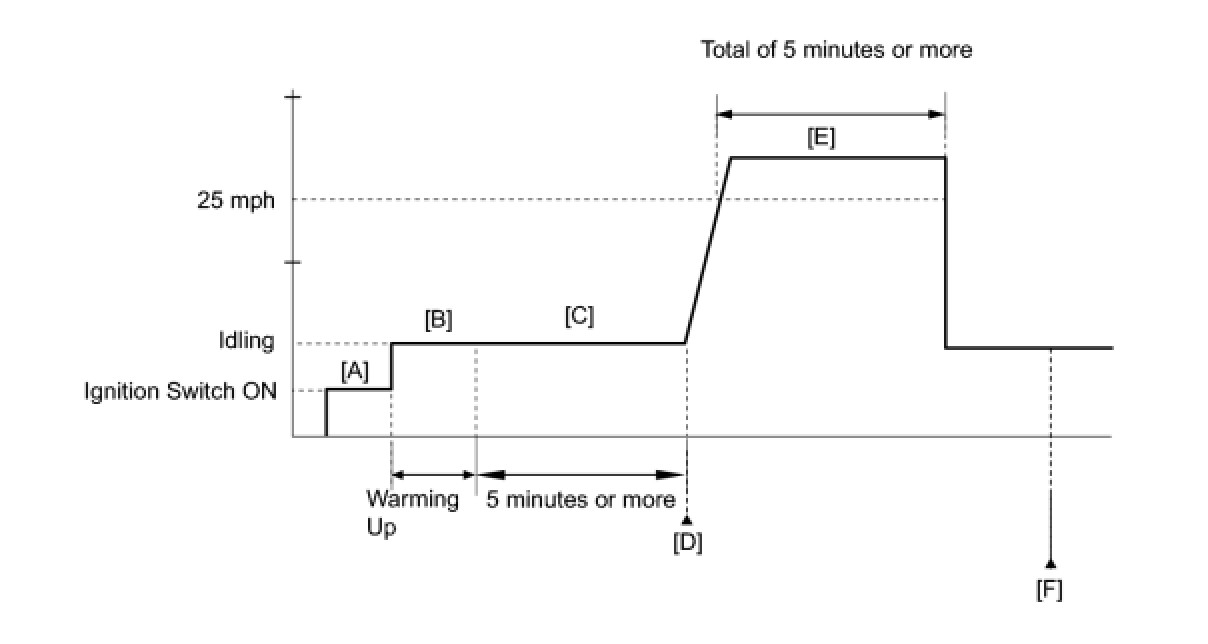

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the ignition switch off and wait for at least 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on [A].

6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].

7. Idle the engine for 5 minutes or more [C].

HINT
During steps [A] through [C], if the change in the intake air temperature is below 1°C (1.8°F), the intake air temperature sensor (mass air flow meter) is malfunctioning. It is not necessary to continue this procedure.

8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

9. Input the DTC: P0111.

10. Check the DTC judgment result [D].





HINT
* If the judgment result shows ABNORMAL, the system has a malfunction.
* If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] and [F].

11. Drive the vehicle at 25 mph (40 km/h) or more for a total of 5 minutes or more [E].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

12. Check the DTC judgment result again [F].

HINT
If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] and [F] again.

13. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

14. Read Pending DTCs.

HINT
If a pending DTC is output, the system is malfunctioning.

15. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.

WIRING DIAGRAM

Refer to DTC P0112 P0112.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0111)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

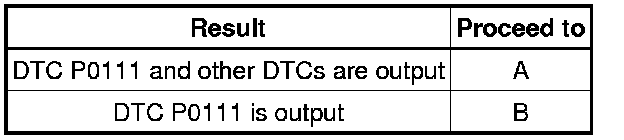

Result:





HINT
If any DTCs other than P0111 are output, troubleshoot those DTCs first.

B -- REPLACE MASS AIR FLOW METER SUB-ASSEMBLY Removal

A -- GO TO DTC CHART SFI System
