DTC 63-47

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 62-47,63-47: High Temperature
63-47 - High Temperature

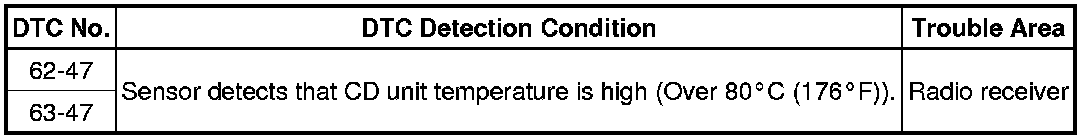

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK RADIO RECEIVER

(a) Park the vehicle in a cool place.

(b) Check that the temperature of the radio receiver becomes sufficiently low.

(c) Start the engine.

NEXT -- Continue to next step.

2. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

3. RECHECK FOR DTC

(a) Recheck for DTCs and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER Removal

OK -- END
