Passenger Airbag ON/OFF Indicator Circuit Malfunction - Airbag System (for TMC Made)

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM (for TMC Made): B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction
B1660/43 - Passenger Airbag ON/OFF Indicator Circuit Malfunction

DESCRIPTION

The passenger airbag ON/OFF indicator circuit consists of the center airbag sensor assembly and the clock assembly.

The passenger airbag ON/OFF indicator indicates the operation condition of the front passenger airbag assembly and the front seat side airbag assembly RH.

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.

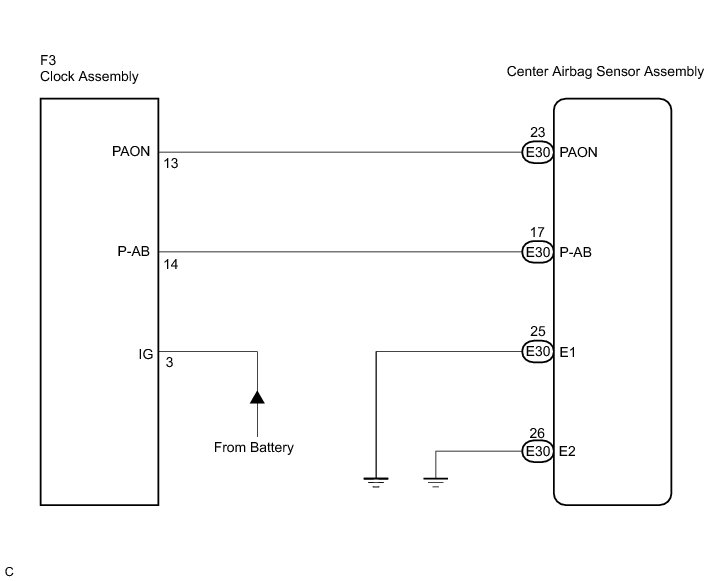

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CONDITION

(a) Turn the ignition switch on (IG).

(b) Check the passenger airbag ON/OFF indicator operation.

HINT
Refer to the normal condition of the passenger airbag ON/OFF indicator Diagnosis System.





Result:





B -- CHECK CONNECTION OF CONNECTORS
A -- Continue to next step.

2. CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor assembly and the clock assembly.

OK:

The connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

3. CHECK CONNECTORS

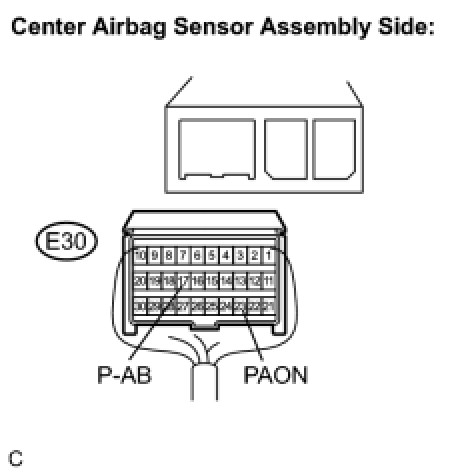

(a) Disconnect the connectors from the center airbag sensor assembly and the clock assembly.

(b) Check that the connectors (on the center airbag sensor assembly side and clock assembly side) are not damaged.

OK:

The connectors are not deformed or damaged.

NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

4. CHECK PASSENGER AIRBAG ON/OFF INDICATOR

(a) Connect the connector to the clock assembly.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch on (IG).

(d) Check the passenger airbag ON/OFF indicator operation.

OK:

The passenger airbag ON/OFF indicator does not come on.

NG -- CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN)
OK -- Continue to next step.

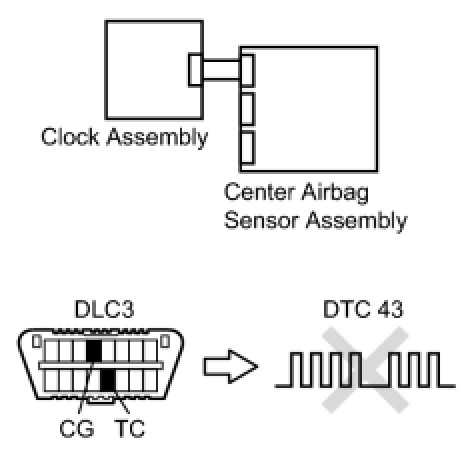

5. CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Connect the connector to the center airbag sensor assembly.





(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch on (IG), and wait for at least 60 seconds.

(d) Clear the DTCs stored in the memory Airbag System (for TMC Made).

(e) Turn the ignition switch off.

(f) Turn the ignition switch on (IG), and wait for at least 60 seconds.

(g) Check for DTCs Airbag System (for TMC Made).

OK:

DTC B1660/43 is not output.

HINT
Codes other than DTC B1660/43 may be output at this time, but they are not related to this check.

NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK Diagnosis System

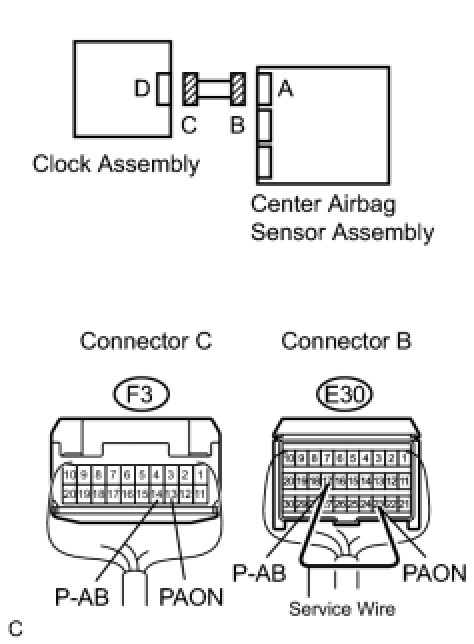

6. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN)

(a) Turn the ignition switch off.





(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Disconnect the connector from the clock assembly.

(d) Using a service wire, connect terminals 23 (PAON) and 17 (P-AB) of connector B.

NOTICE:
Do not forcibly insert a service wire into the terminals of the connector when connecting.

(e) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

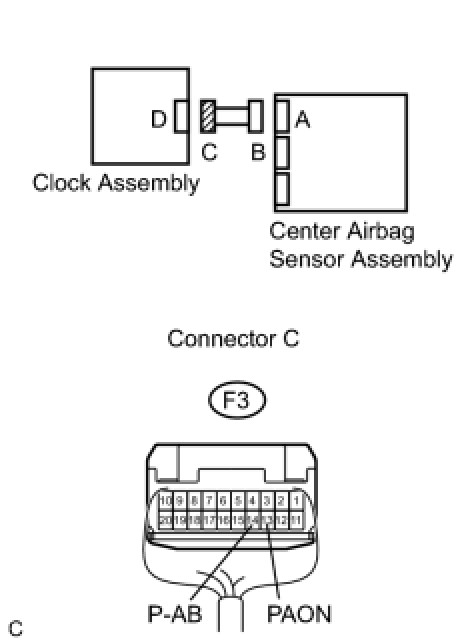

7. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT)

(a) Disconnect the service wire from connector B.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

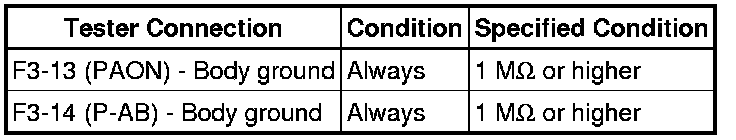

8. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

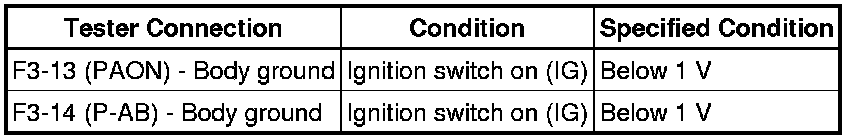

9. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+)

(a) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.





(b) Turn the ignition switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE WIRE HARNESS

OK -- REPLACE CLOCK ASSEMBLY Removal

10. CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor assembly and the clock assembly.

OK:

The connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

11. CHECK CONNECTORS

(a) Disconnect the connectors from the center airbag sensor assembly and the clock assembly.

(b) Check that the connectors (on the center airbag sensor assembly side and clock assembly side) are not damaged.

OK:

The connectors are not deformed or damaged.

NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

12. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN)

(a) Using a service wire, connect terminals 23 (PAON) and 17 (P-AB) of connector B.





NOTICE:
Do not forcibly insert a service wire into the terminals of the connector when connecting.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

13. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT)

(a) Disconnect the service wire from connector B.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

14. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

15. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+)

(a) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.





(b) Turn the ignition switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.

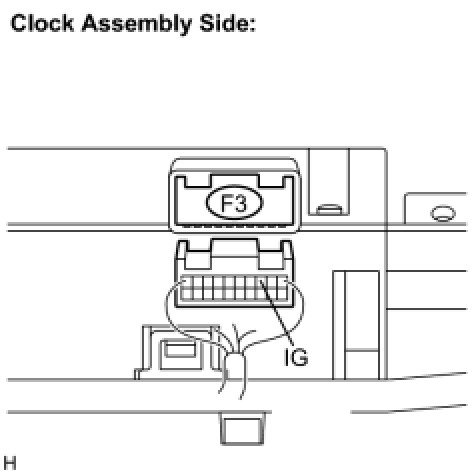

16. CHECK CLOCK ASSEMBLY (SOURCE VOLTAGE)

(a) Connect the connectors to the center airbag sensor assembly.





(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch on (IG).

(d) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE WIRE HARNESS (CLOCK ASSEMBLY - BATTERY) OR BATTERY
OK -- Continue to next step.

17. CHECK PASSENGER AIRBAG ON / OFF INDICATOR

(a) Turn the ignition switch off.





(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Connect the connector to the clock assembly.

(d) Disconnect the connectors from the center airbag sensor assembly.

(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(f) Turn the ignition switch on (IG).

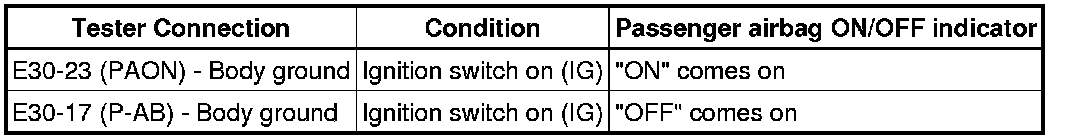

(g) Check the indicator according to the conditions in the table below.

Result:





NG -- REPLACE CLOCK ASSEMBLY Removal
OK -- Continue to next step.

18. CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Turn the ignition switch off.





(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Connect the connectors to the center airbag sensor assembly.

(d) Connect the negative (-) terminal cable to the battery and wait for at least 2 seconds.

(e) Turn the ignition switch on (IG), and wait for at least 60 seconds.

(f) Clear the DTCs stored in the memory Airbag System (for TMC Made).

(g) Turn the ignition switch off.

(h) Turn the ignition switch on (IG), and wait for at least 60 seconds.

(i) Check for DTCs Airbag System (for TMC Made).

OK:

DTC B1660/43 is not output.

HINT
Codes other than DTC B1660/43 may be output at this time, but they are not related to this check.

NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK Diagnosis System
