ABS Control System Malfunction - Vehicle Stability Control System (for ADVICS Made)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for ADVICS Made): 43: ABS Control System Malfunction
43 - ABS Control System Malfunction

DESCRIPTION

This DTC is output when the VSC system detects a malfunction in the ABS control system.





INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.

PROCEDURE

1. CHECK ABS CONTROL SYSTEM

(a) Clear the DTC Vehicle Stability Control System (for ADVICS Made).

(b) Turn the ignition switch on (IG).

(c) Check if the same DTC is recorded Vehicle Stability Control System (for ADVICS Made).

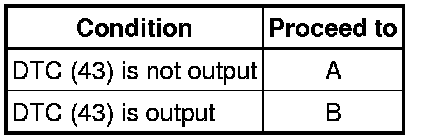

Result:





B -- REPAIR CIRCUIT INDICATED BY OUTPUT DTC Vehicle Stability Control System (for ADVICS Made)
A -- Continue to next step.

2. RECONFIRM DTC

(a) Clear the DTC Vehicle Stability Control System (for ADVICS Made).

(b) Turn the ignition switch on (IG).

(c) Check if the same DTC is recorded Vehicle Stability Control System (for ADVICS Made).

Result:





B -- REPLACE BRAKE ACTUATOR ASSEMBLY

A -- USE SIMULATION METHOD TO CHECK
