Wireless Door Lock Control System (w/o Smart Key System)
DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System): DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to "See Page" in the DTC chart.
* The following is the troubleshooting procedure for the wireless door lock control of a vehicle without the smart key system.
* For the troubleshooting procedure for the wireless door lock control of a vehicle with the smart key system, refer to the wireless door lock control system (w/ Smart Key System).
* Inspect the fuse and relay before investigating the trouble areas shown in the table below.

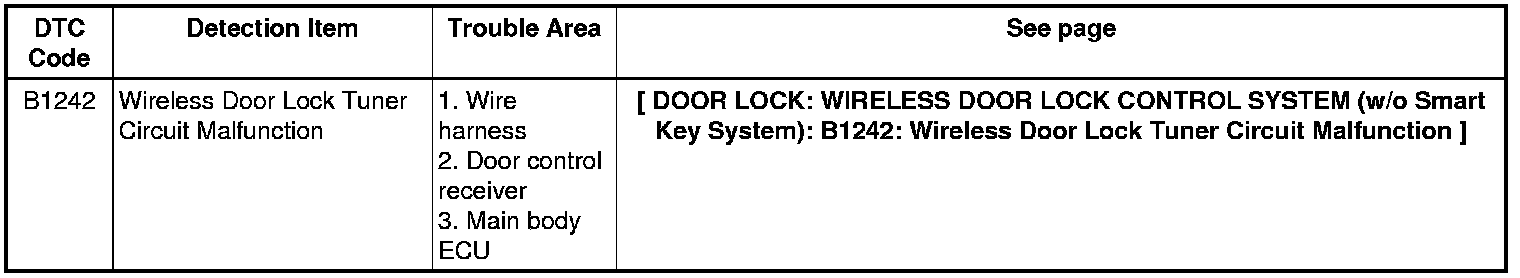

WIRELESS DOOR LOCK CONTROL SYSTEM:
