Tire Pressure Warning System

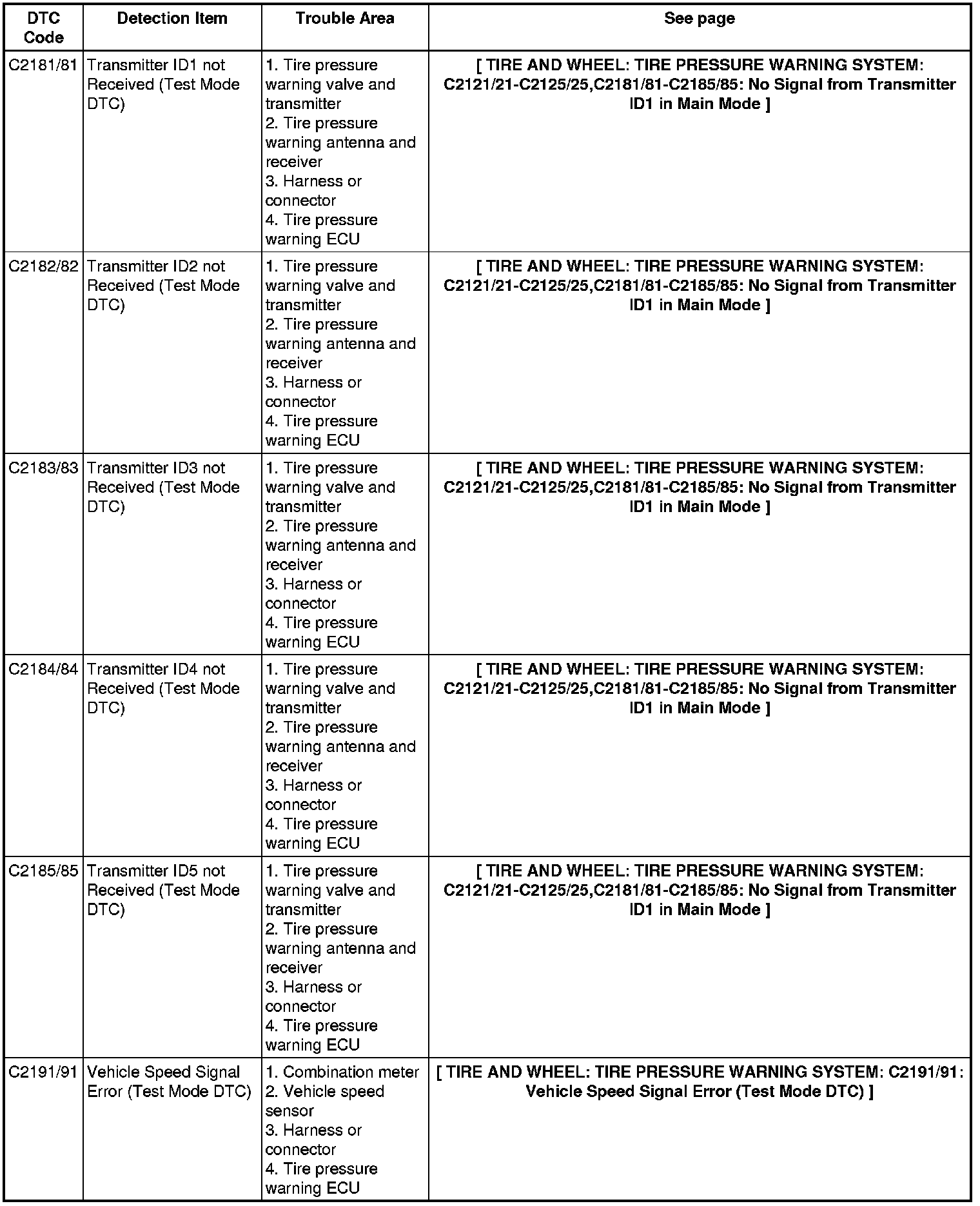

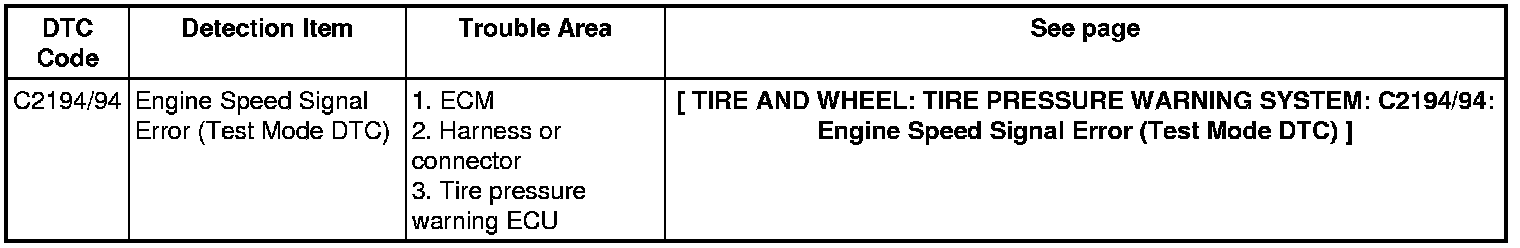

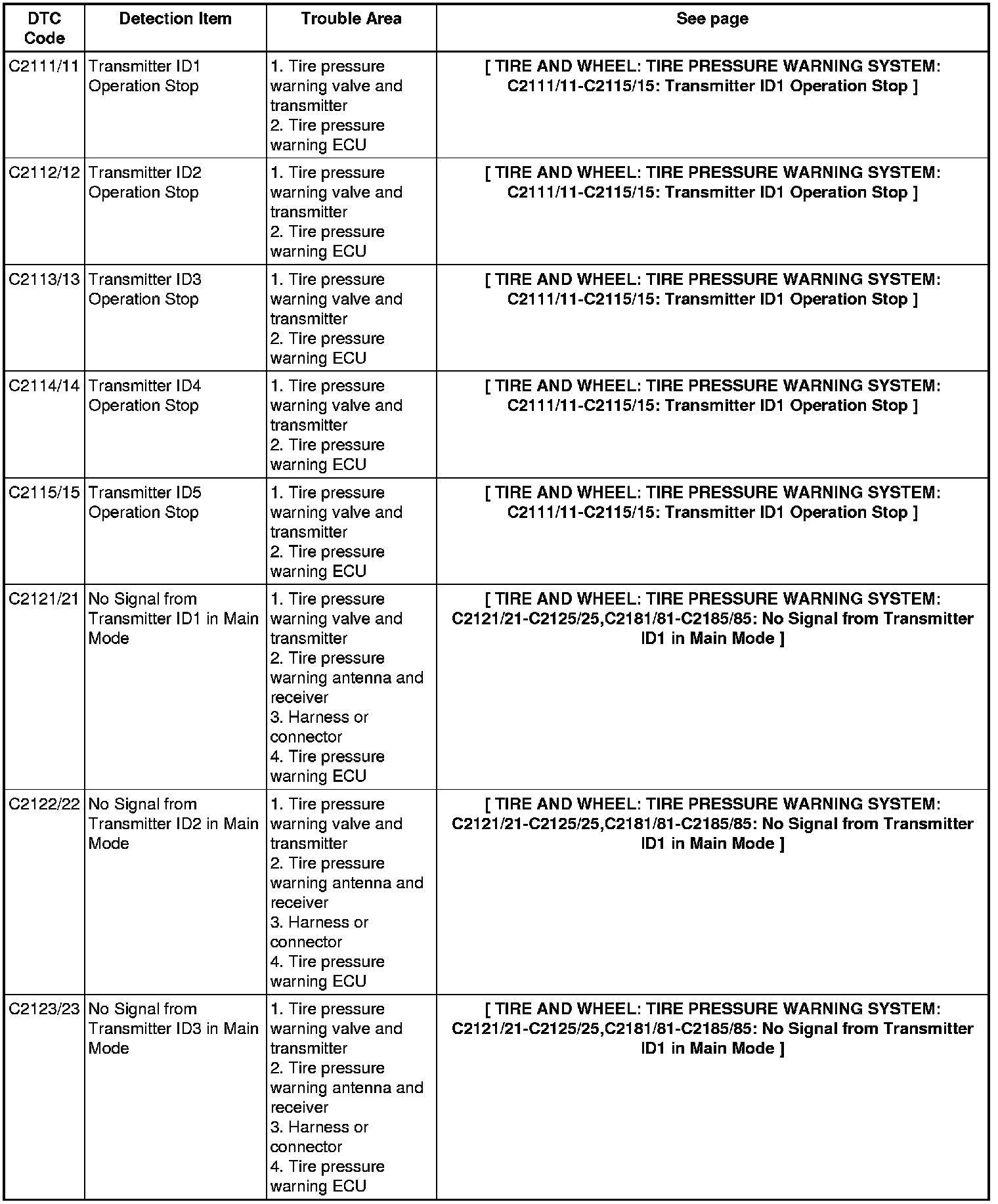

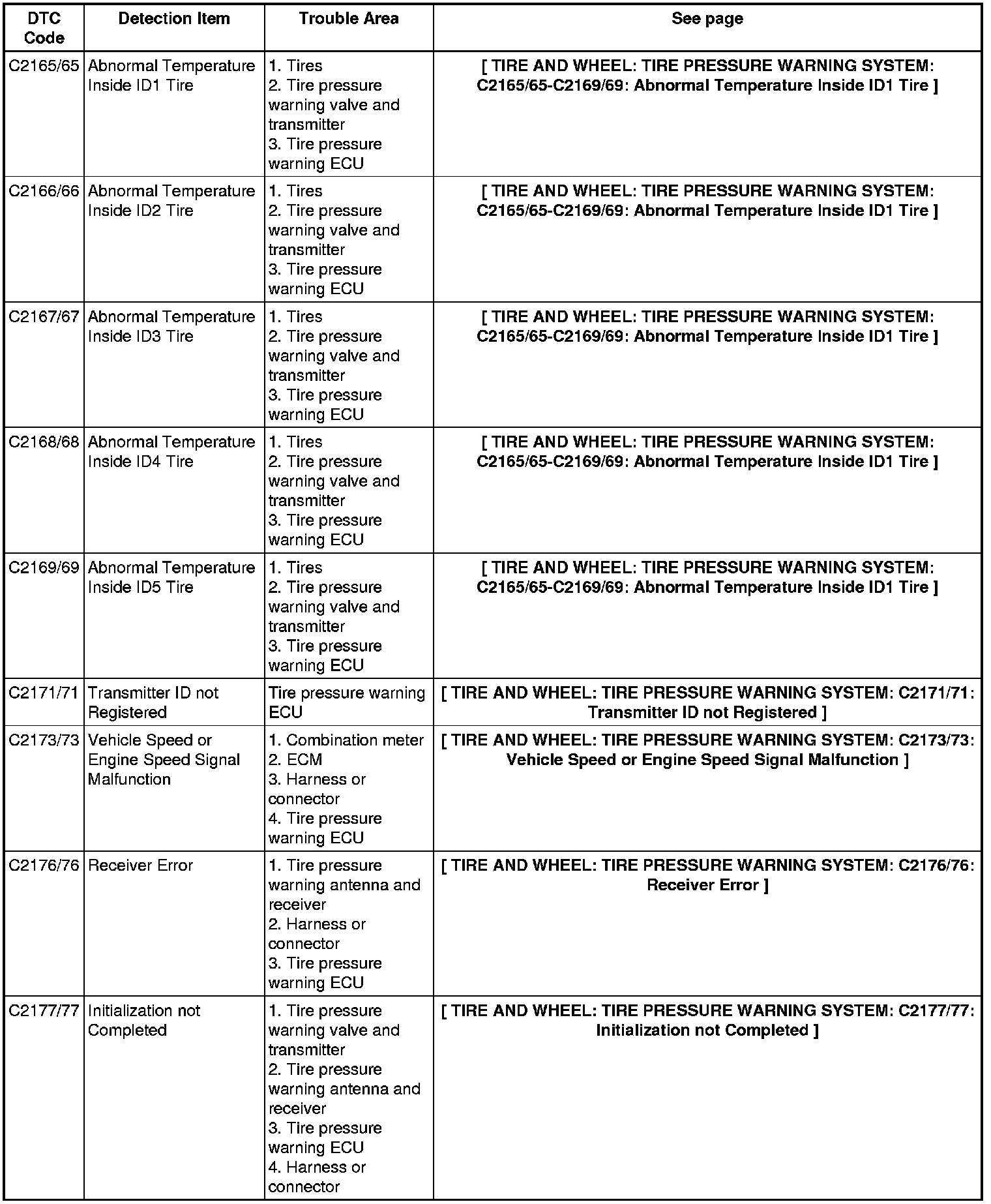

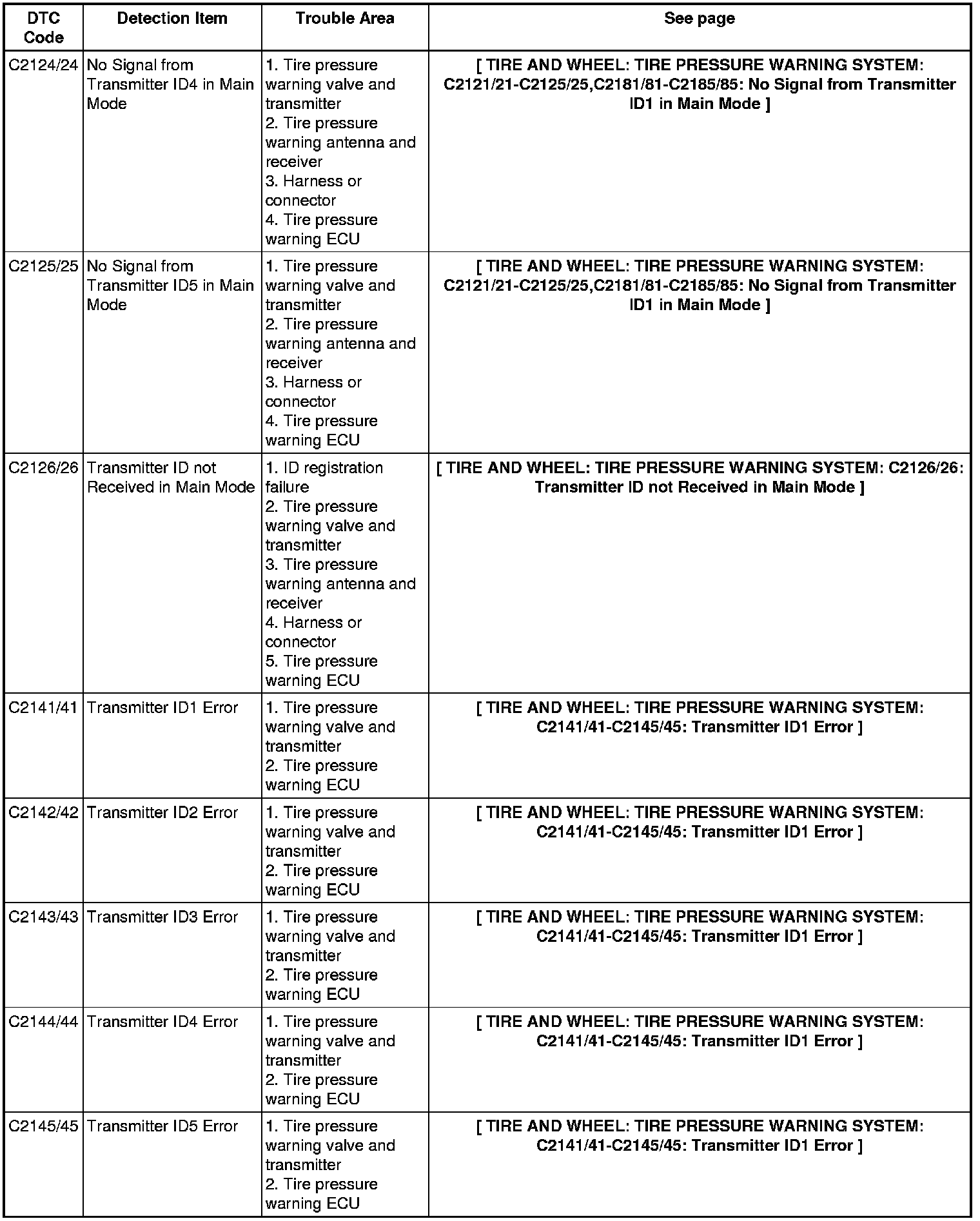

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
* If no abnormality is found when the parts are inspected, inspect the tire pressure warning ECU.
* If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the relevant page listed under respective "DTC No." in the DTC chart.
TIRE PRESSURE WARNING SYSTEM
