SFI System

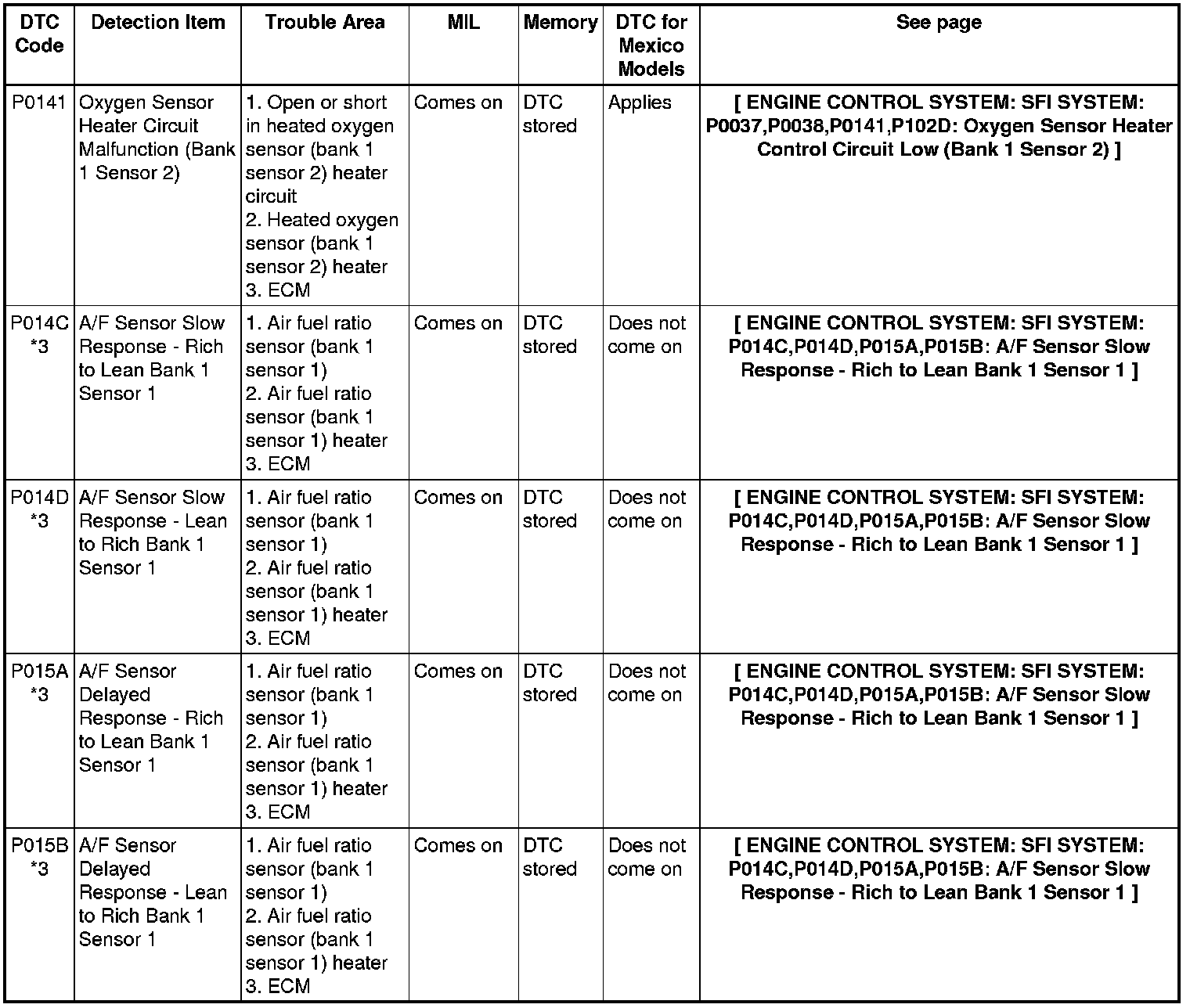

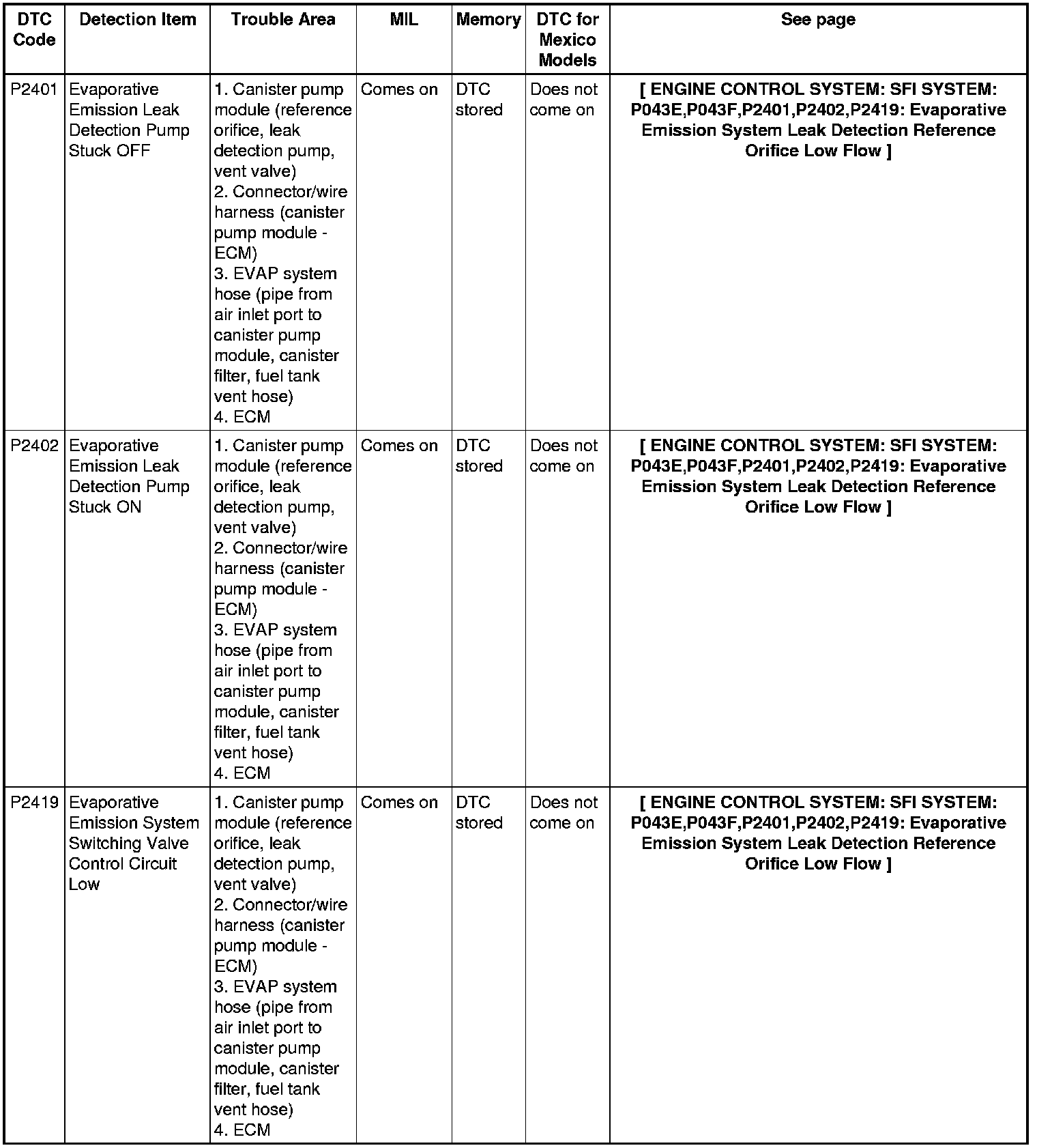

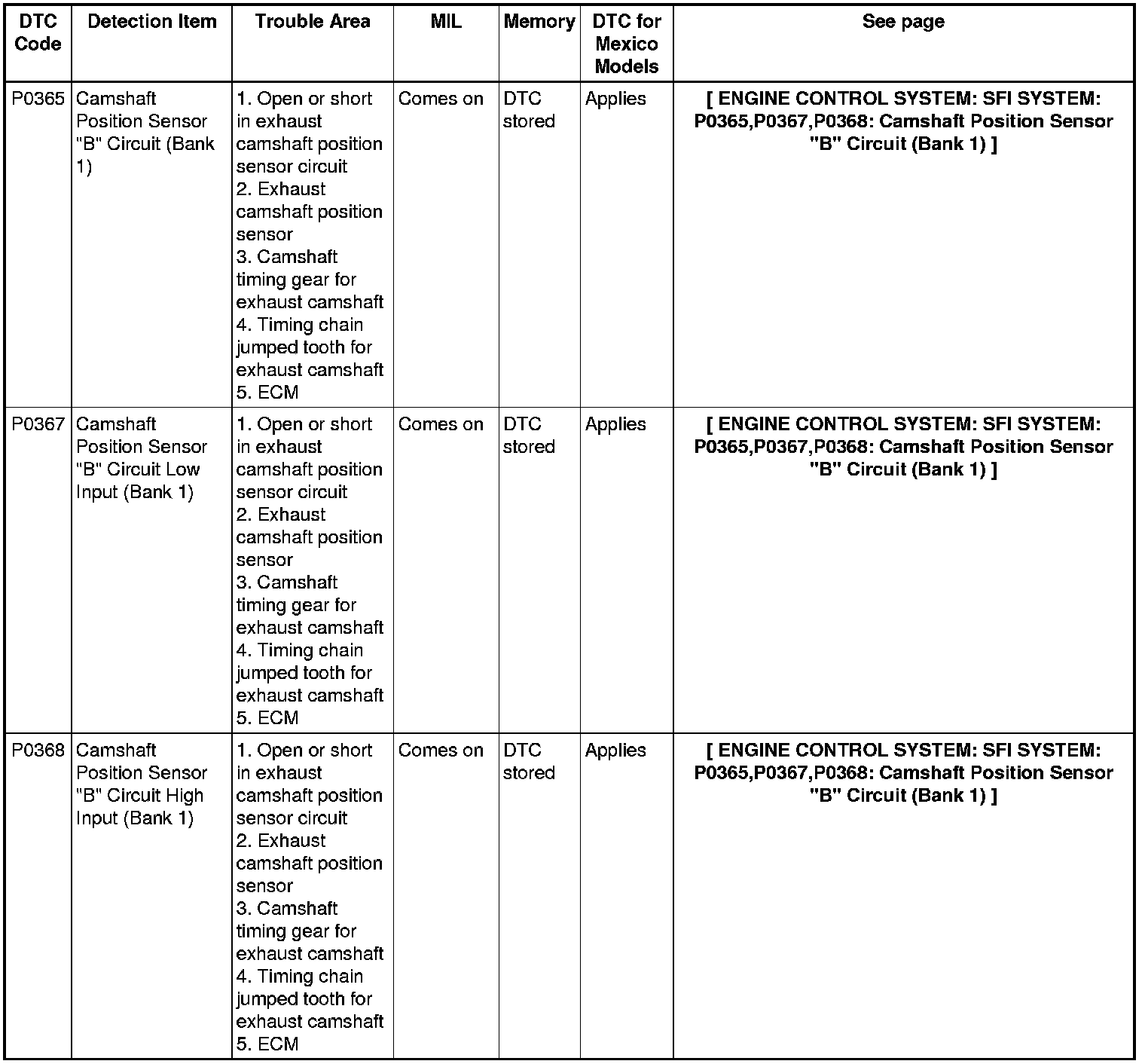

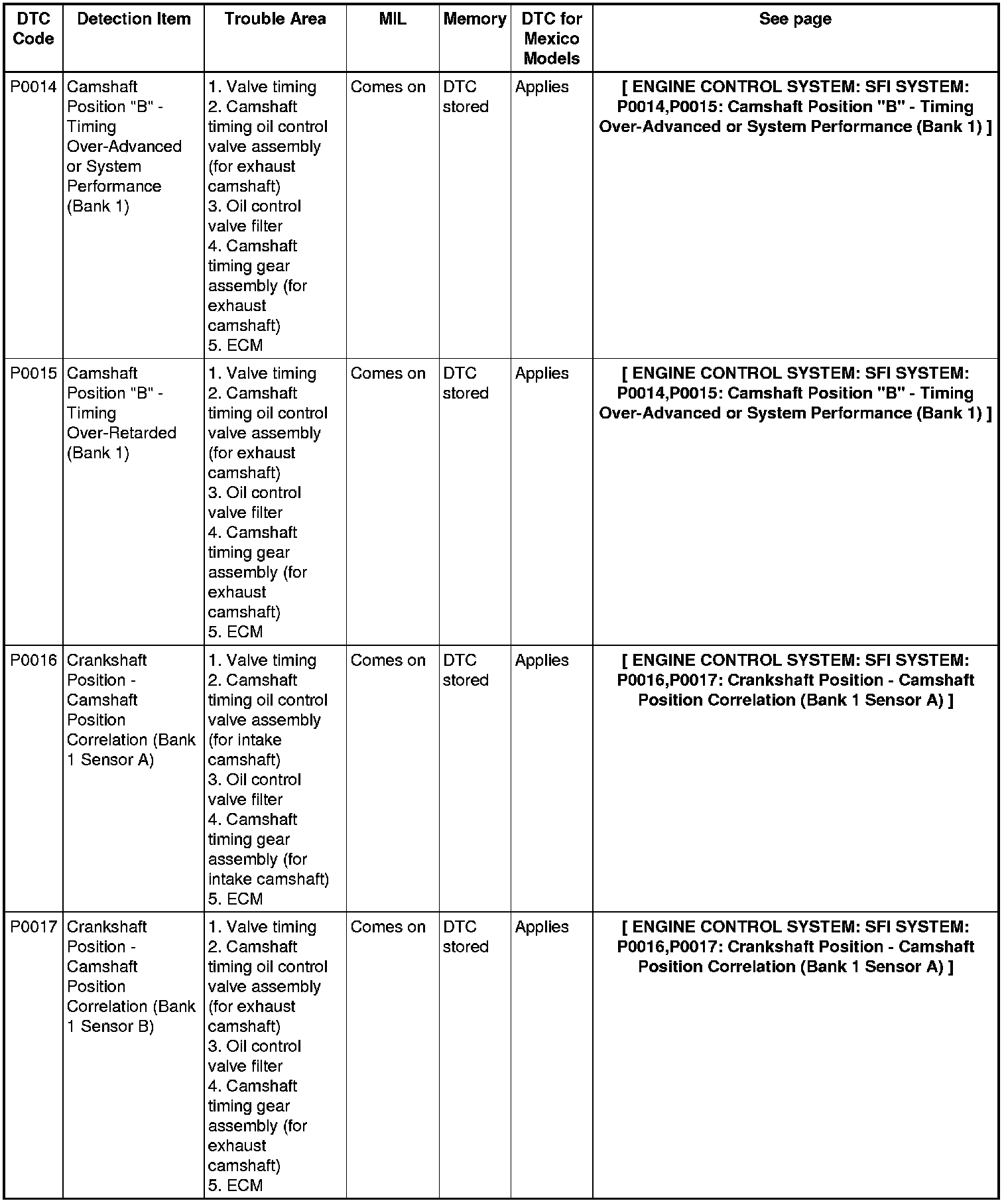

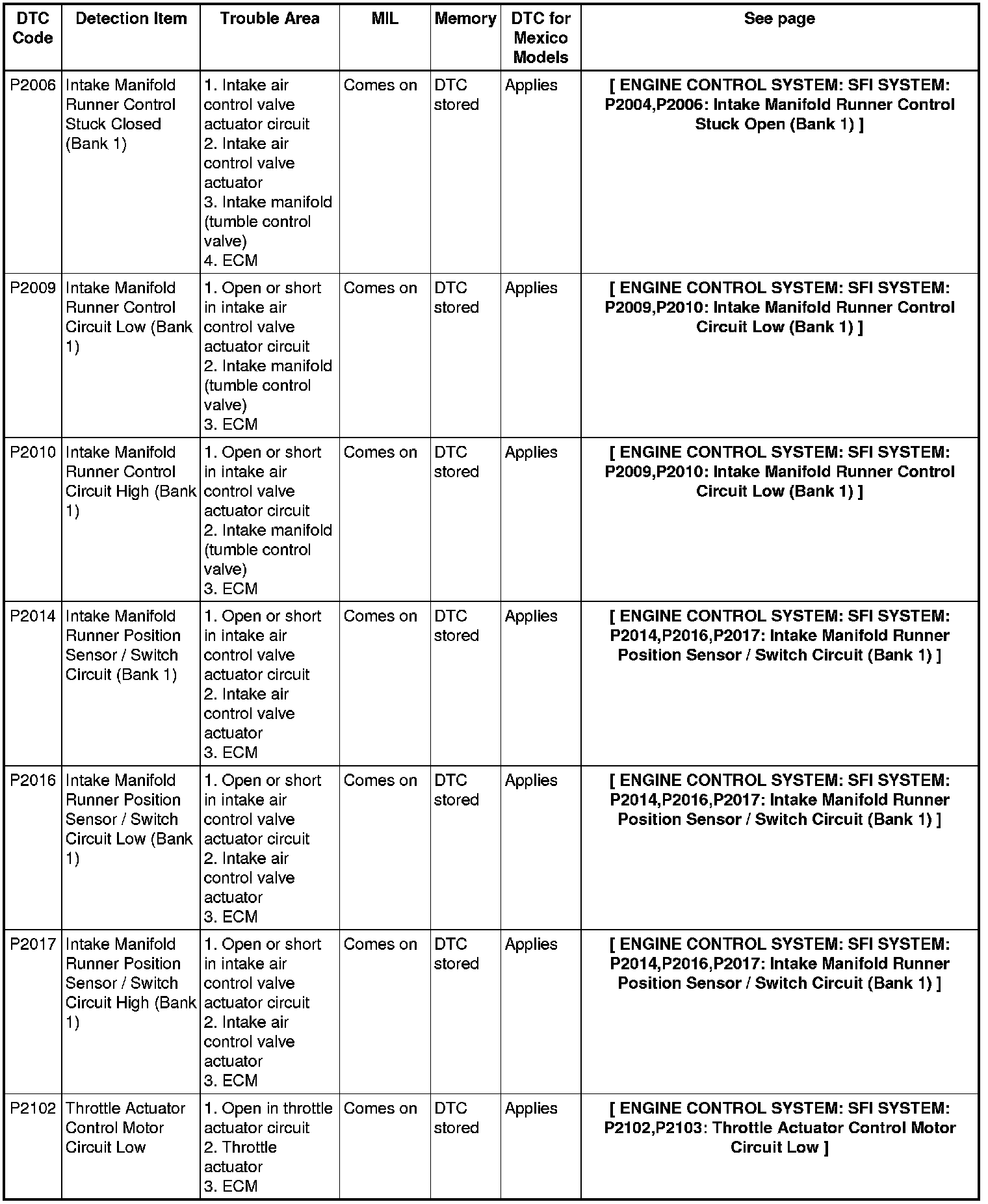

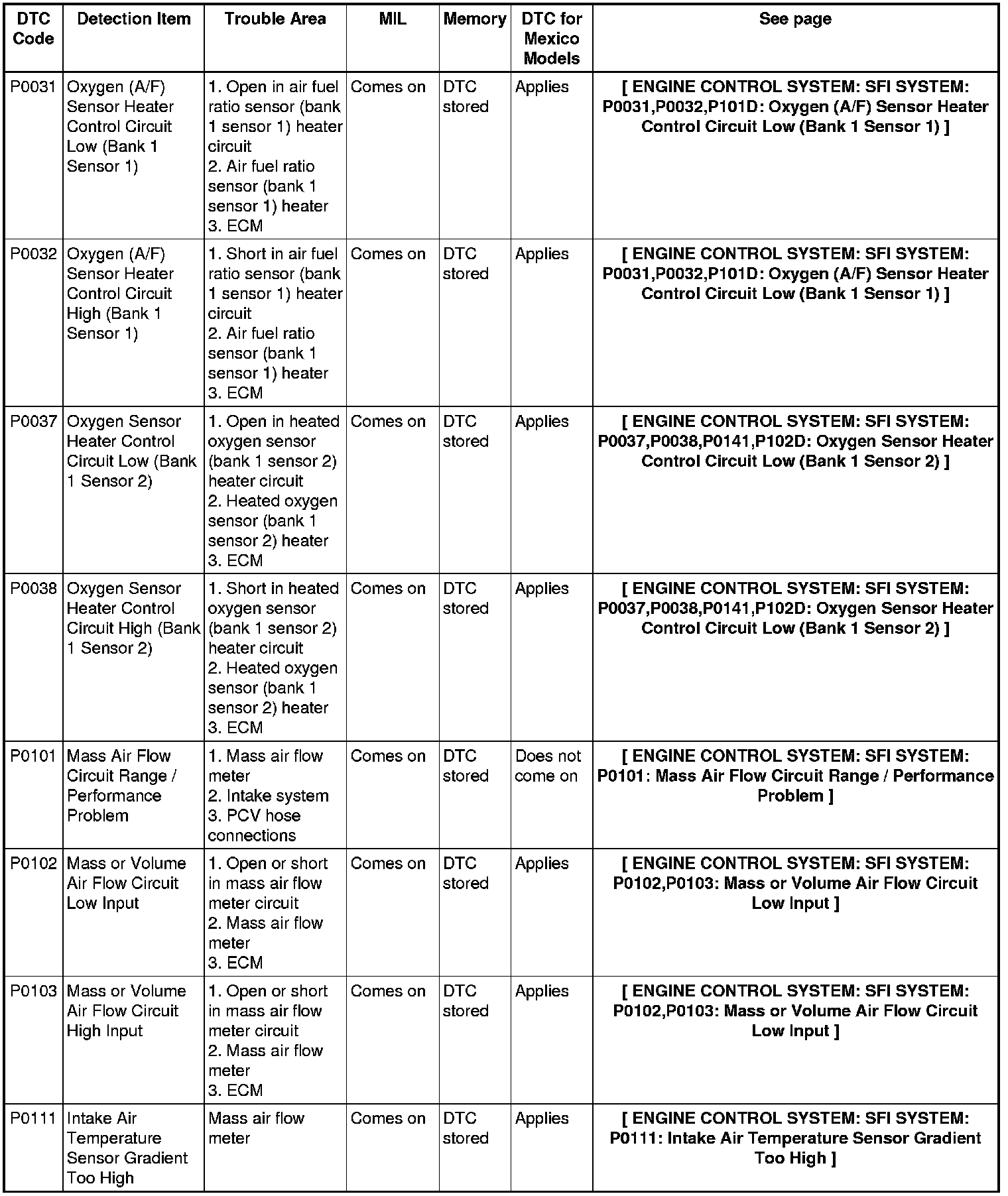

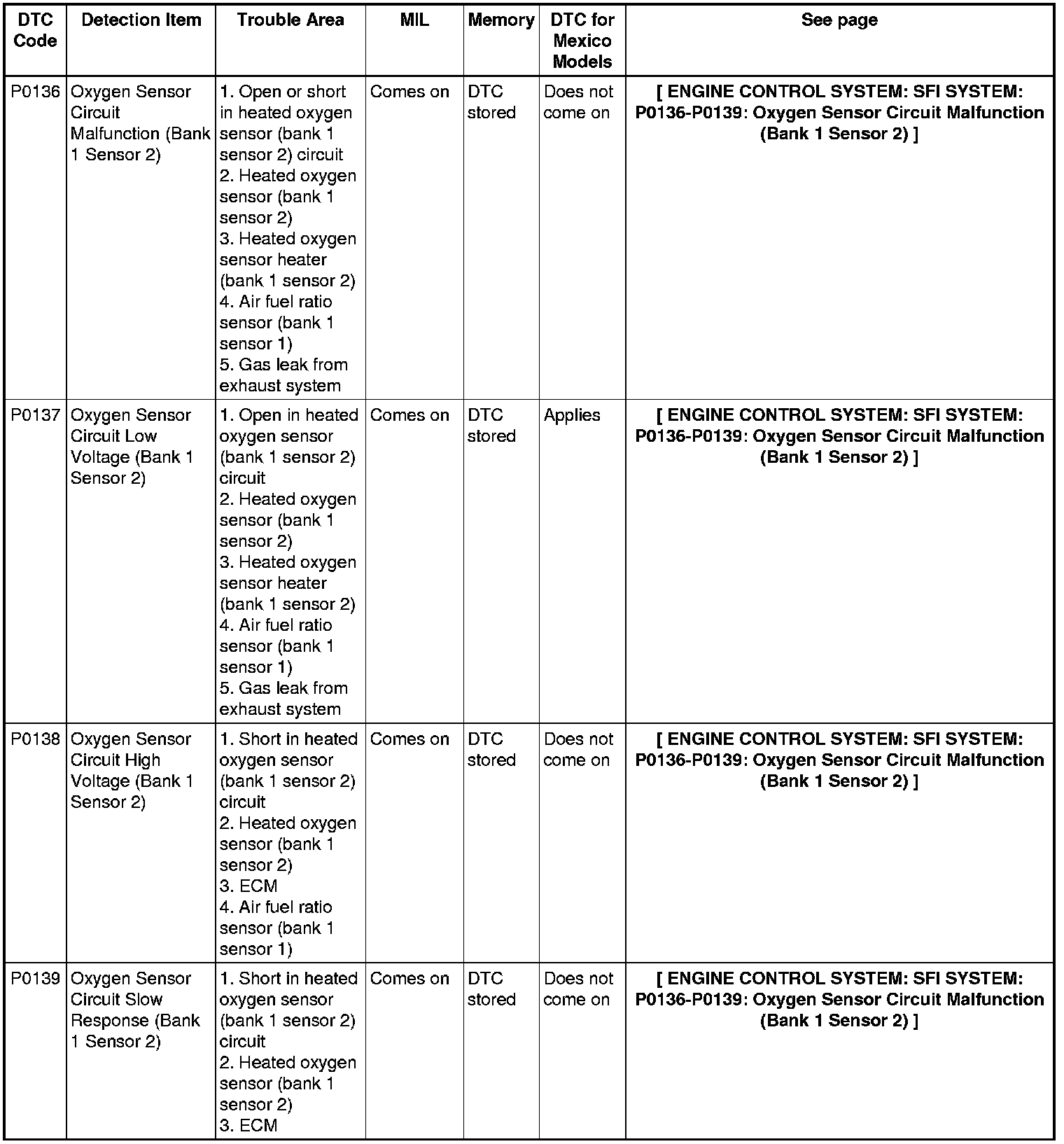

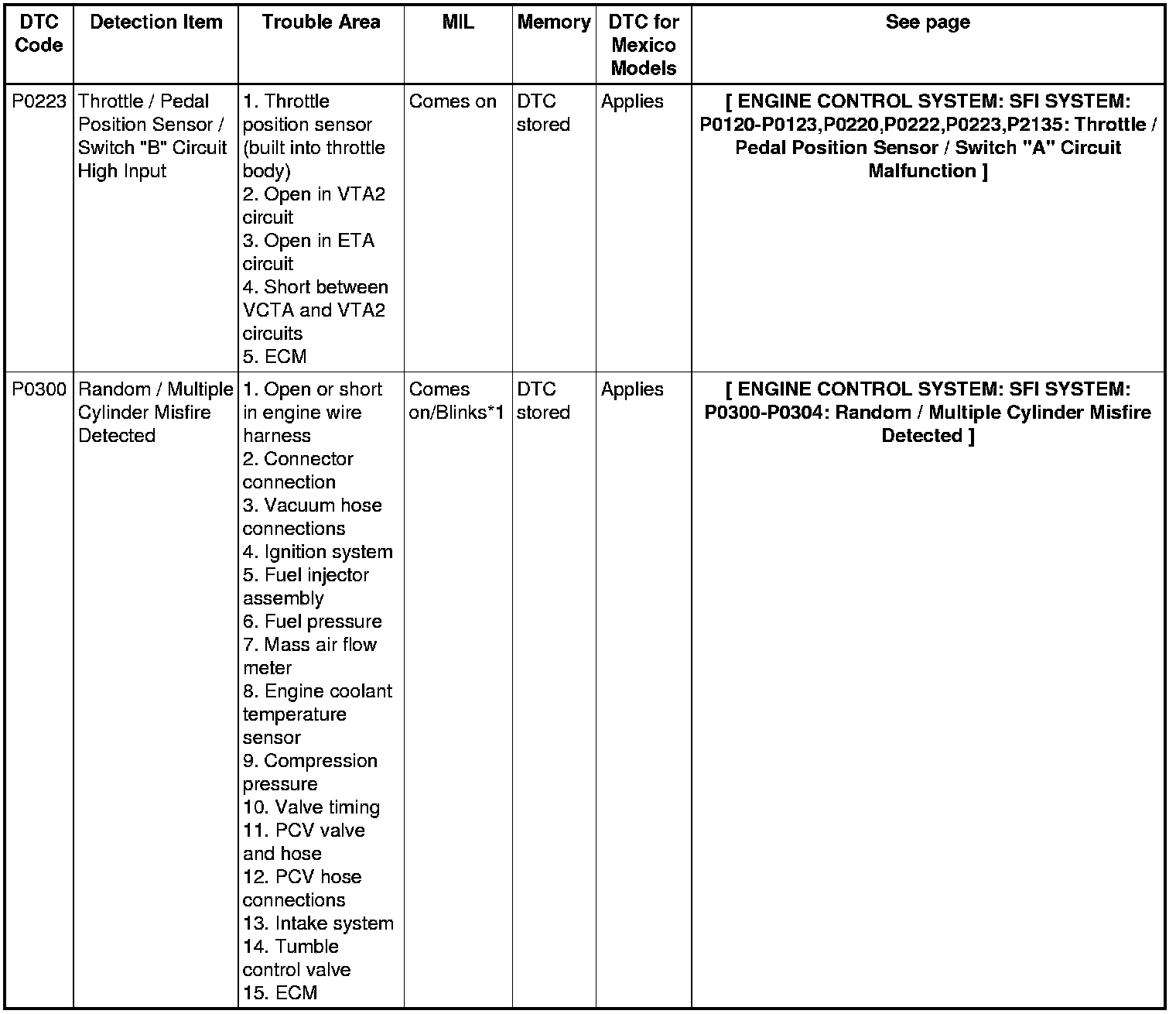

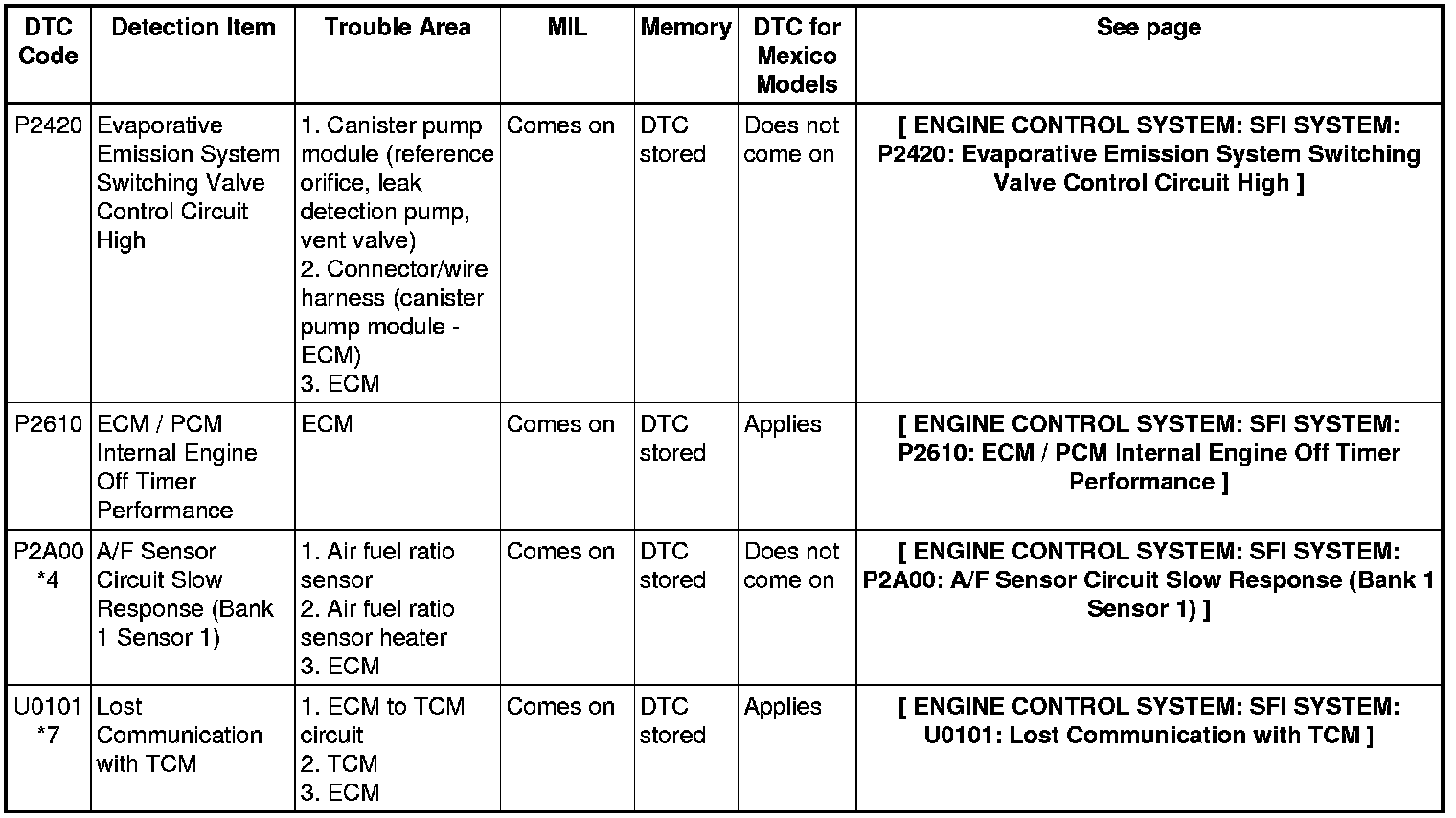

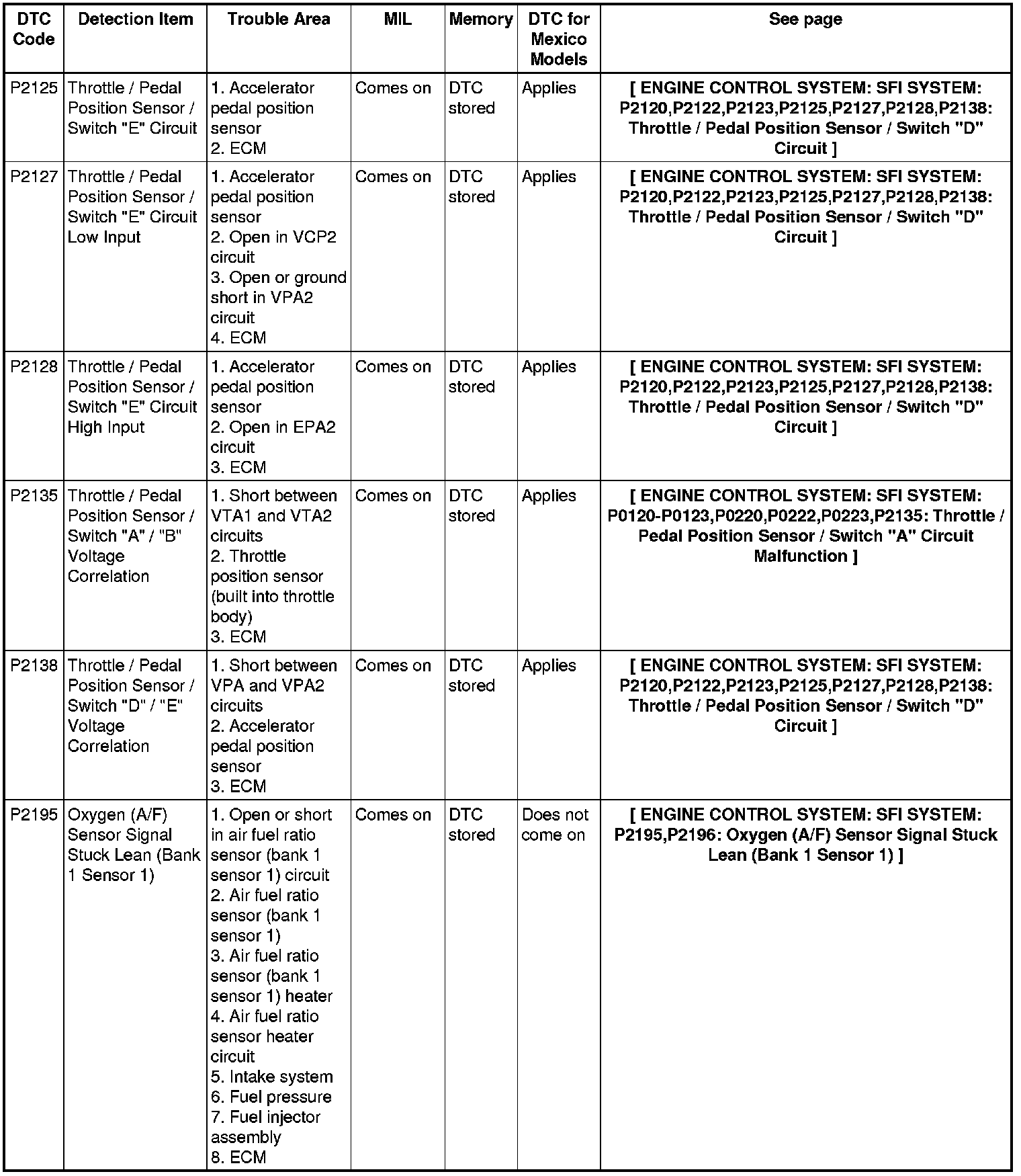

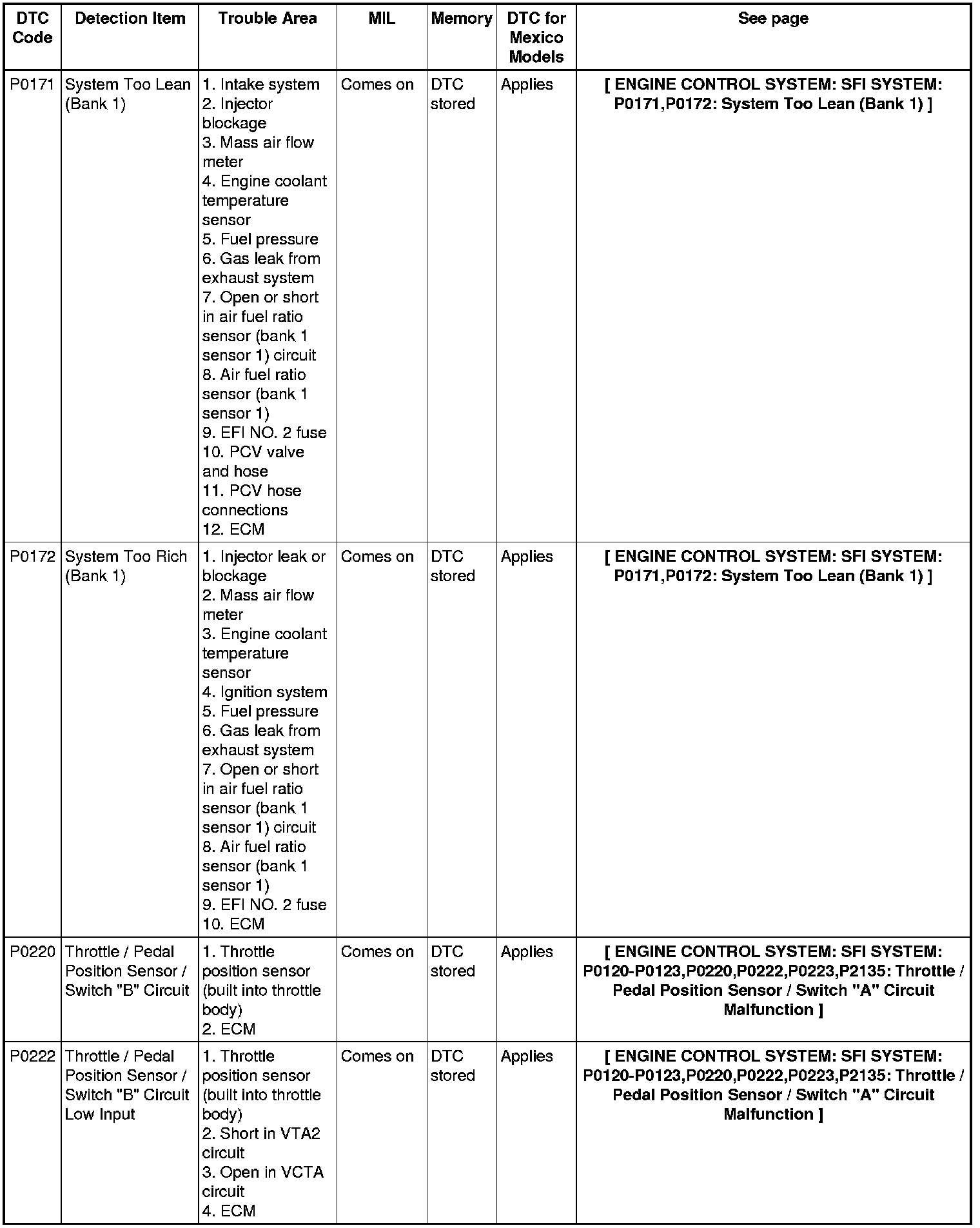

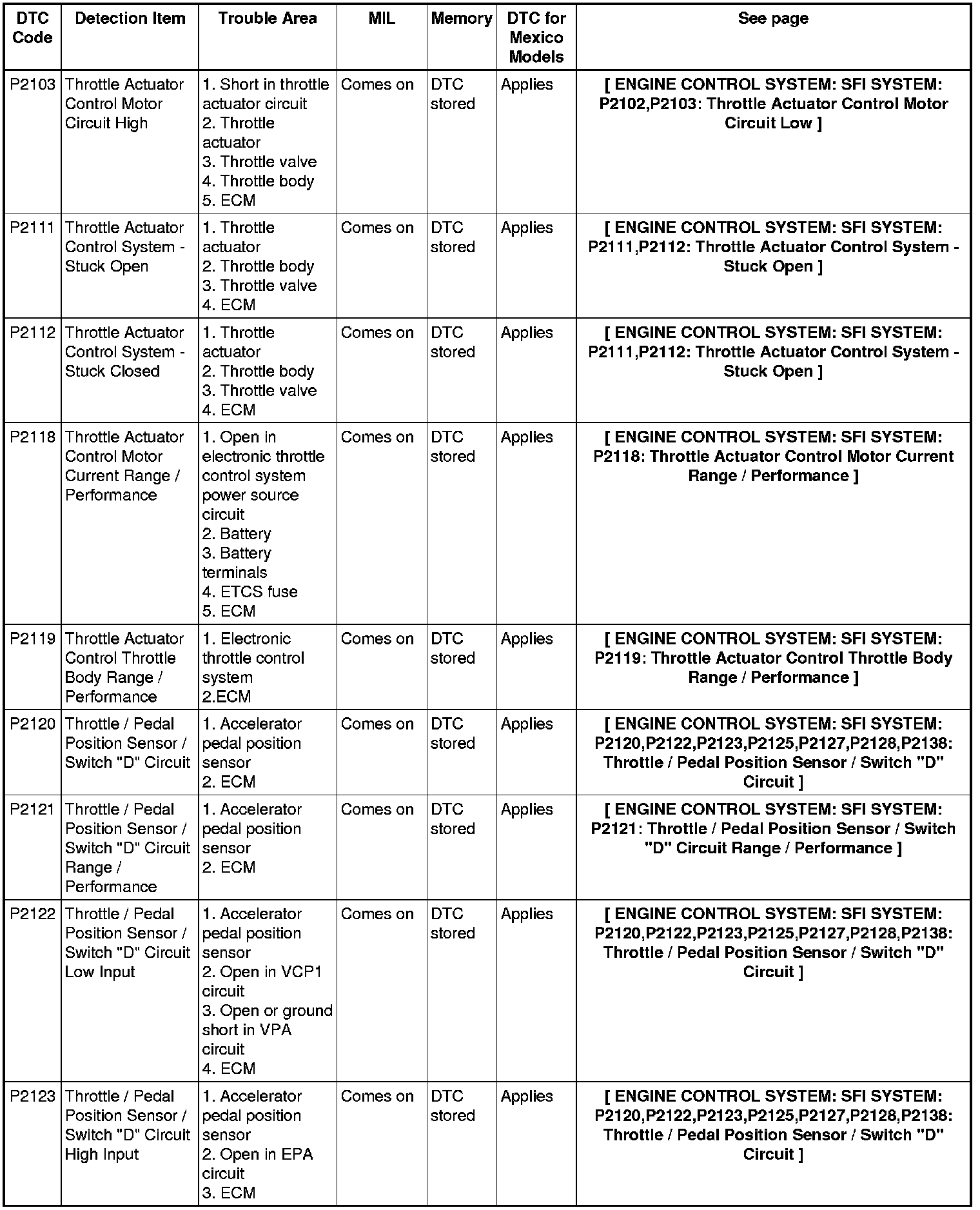

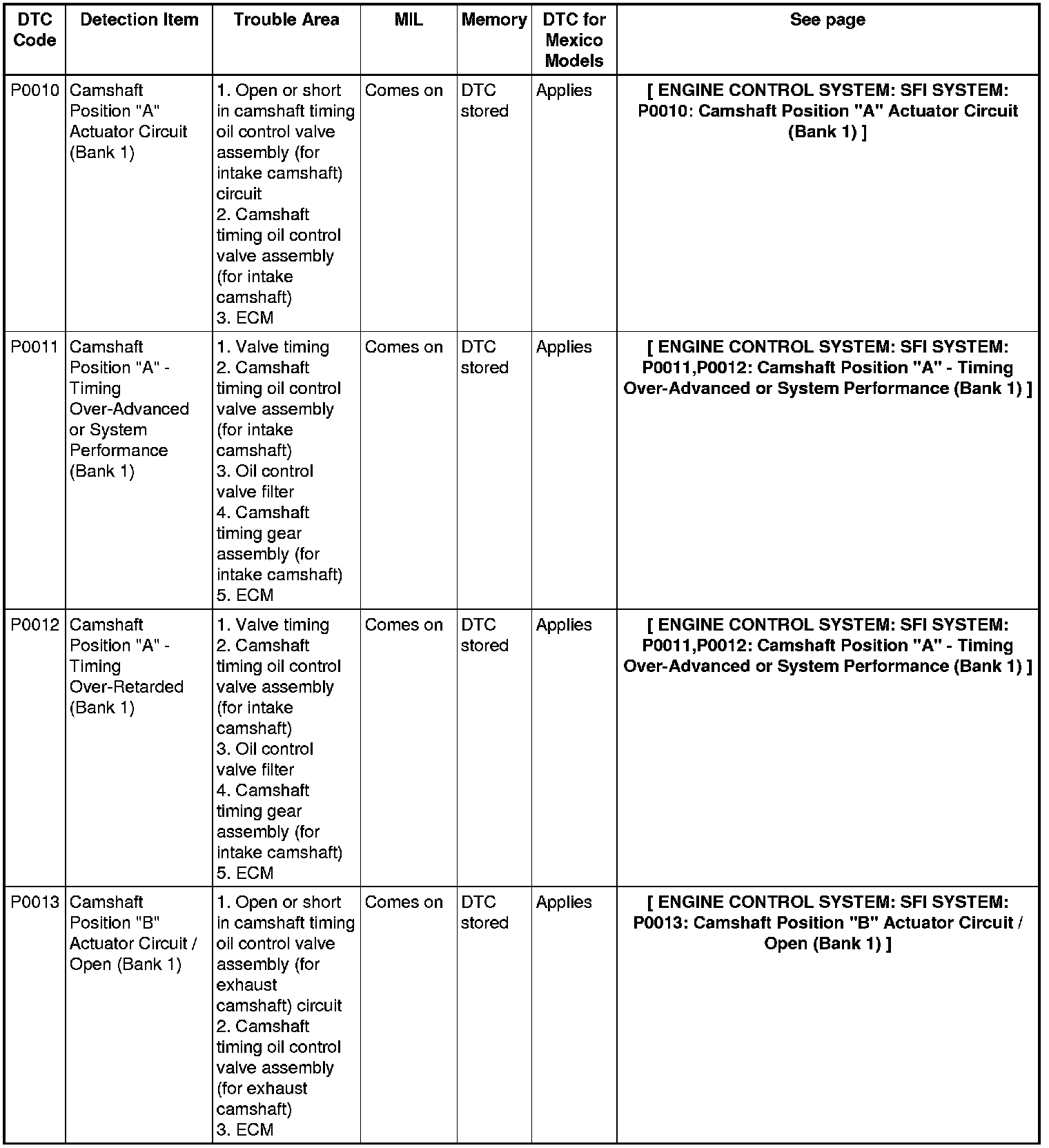

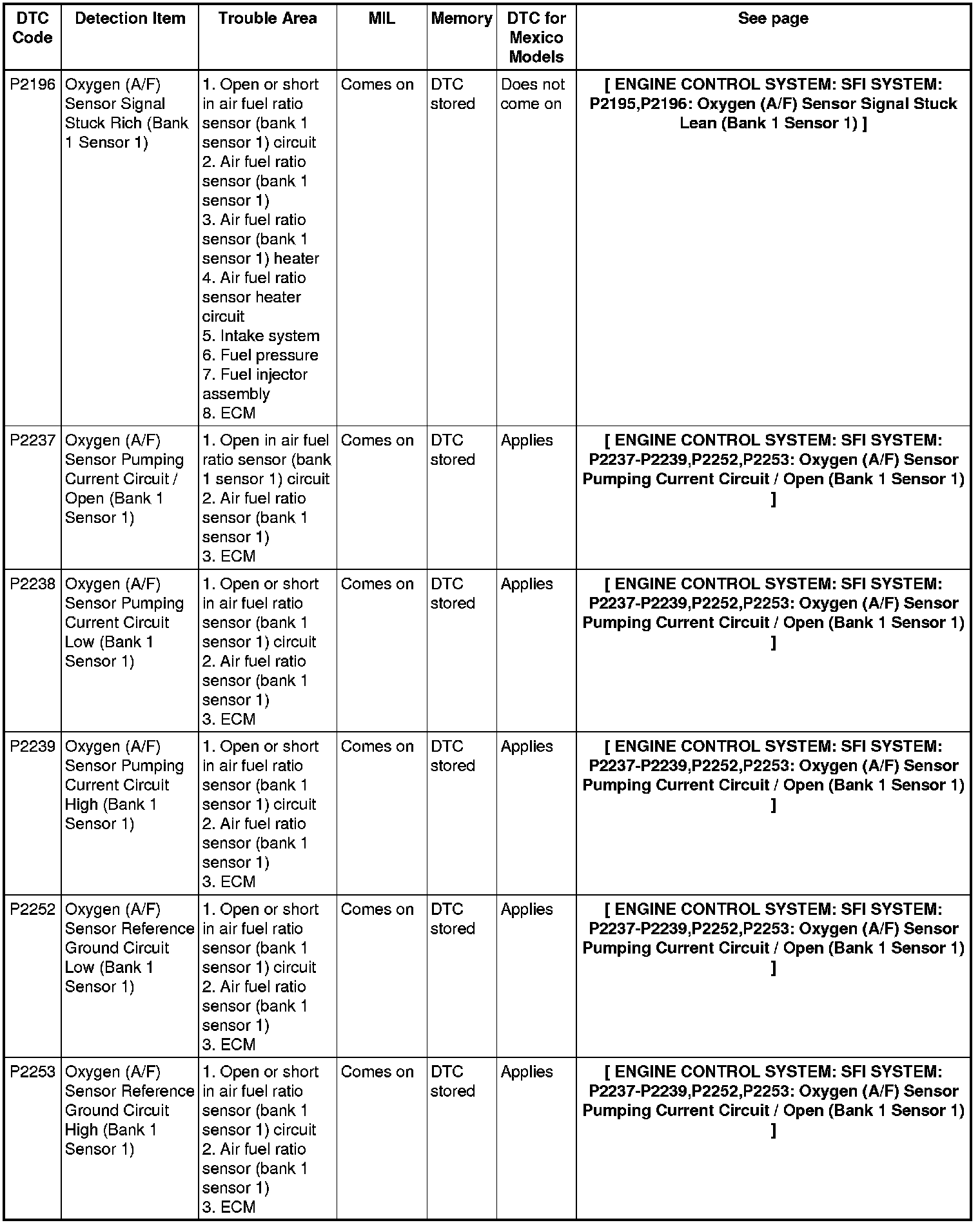

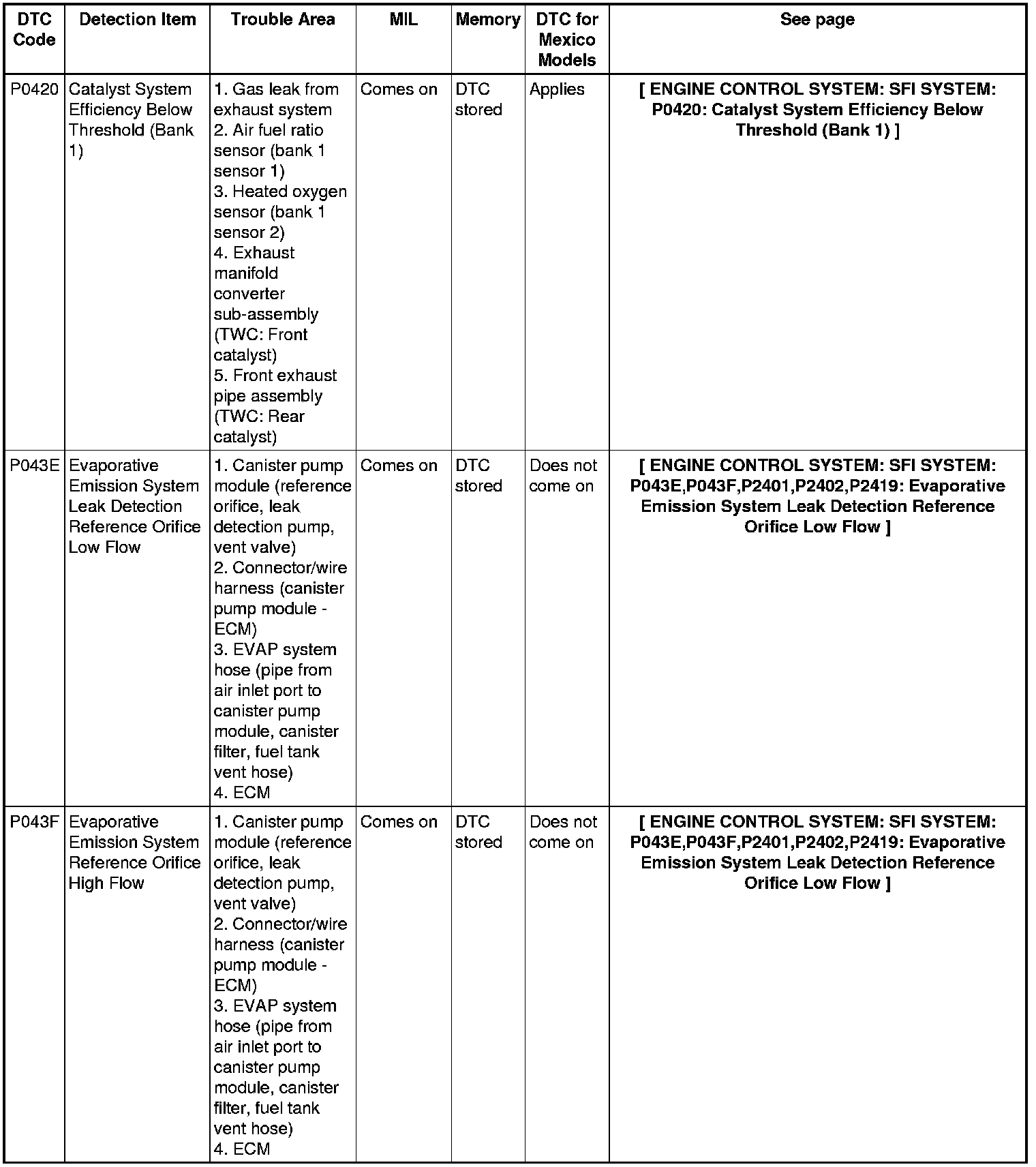

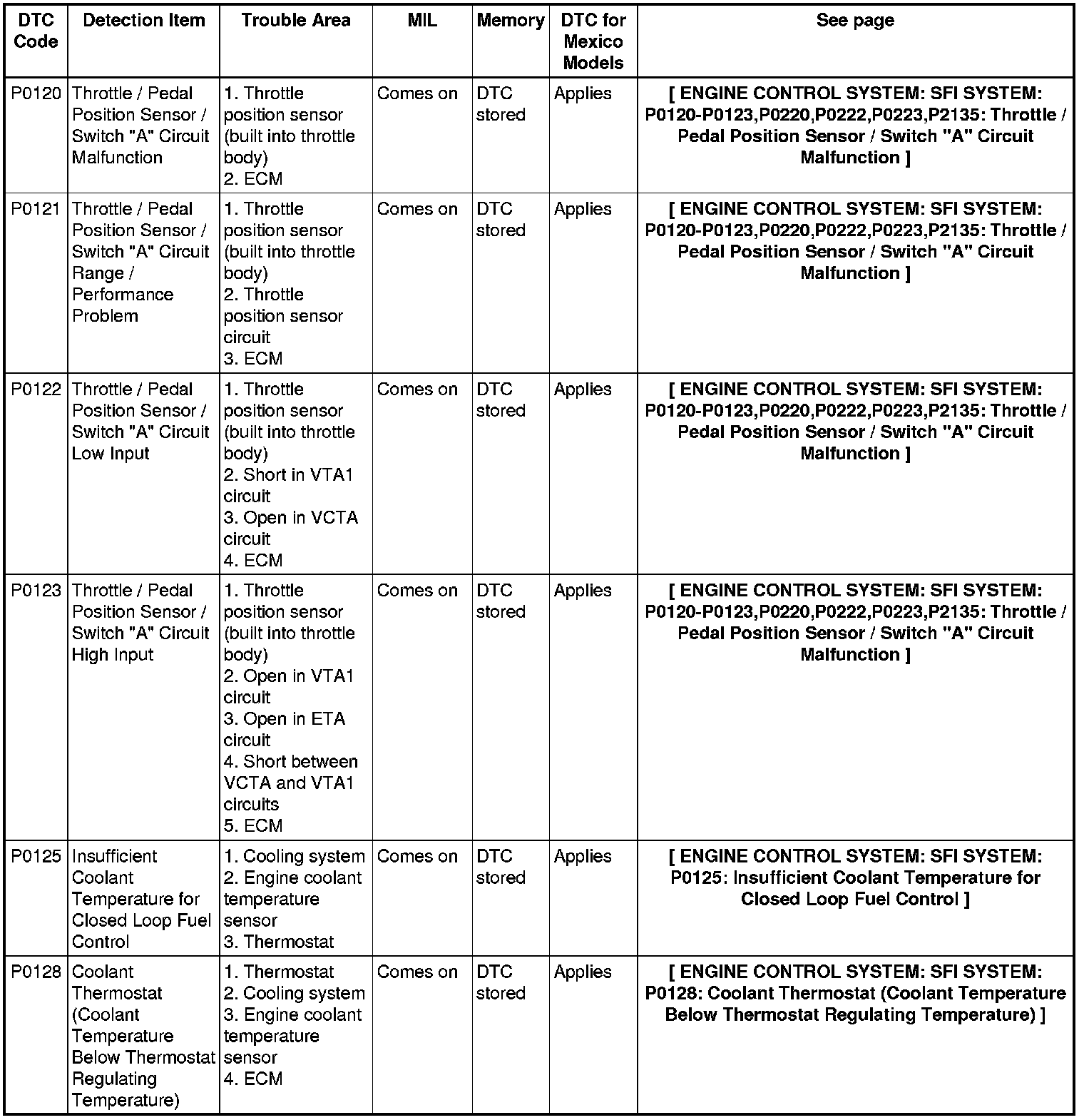

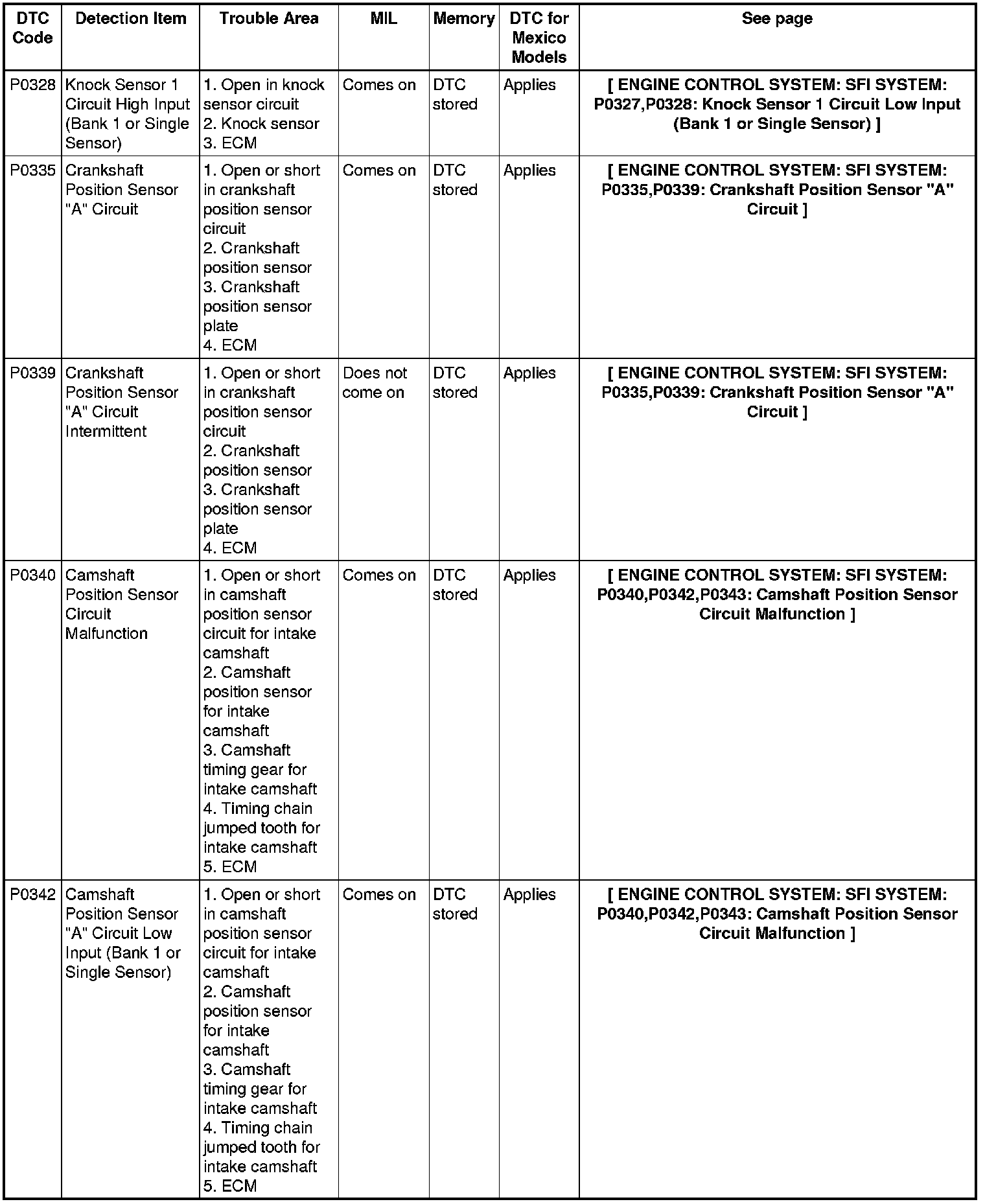

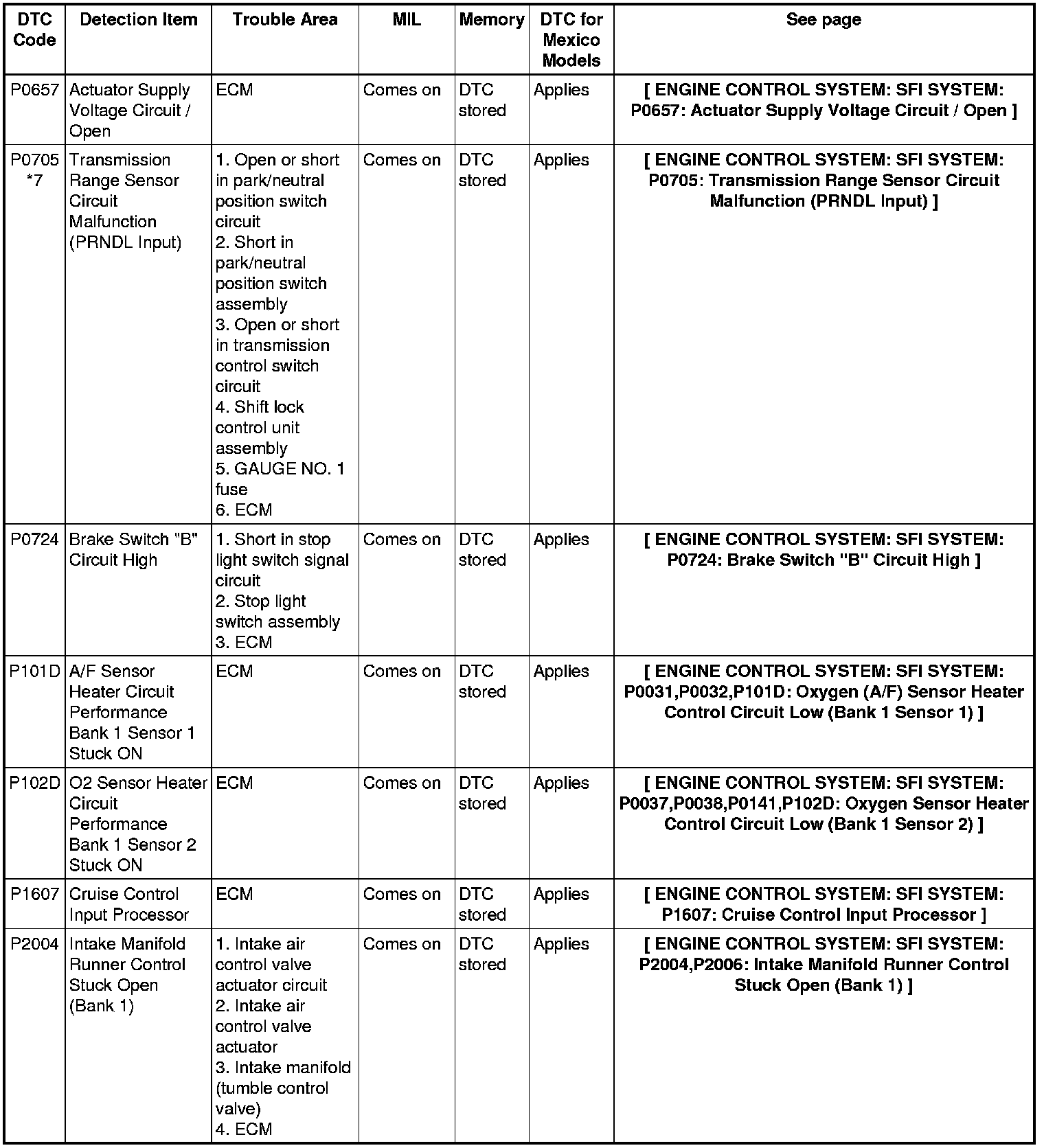

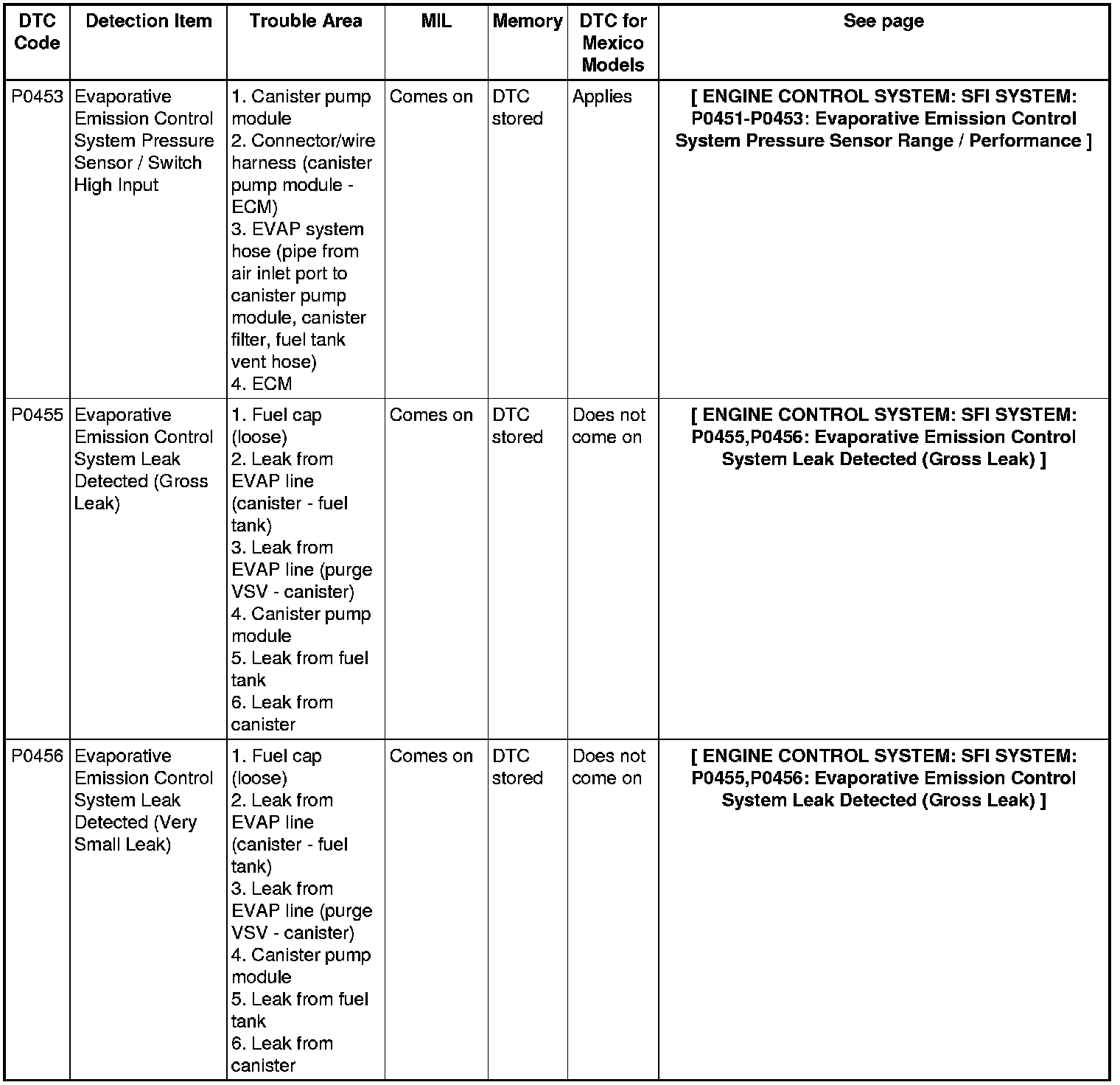

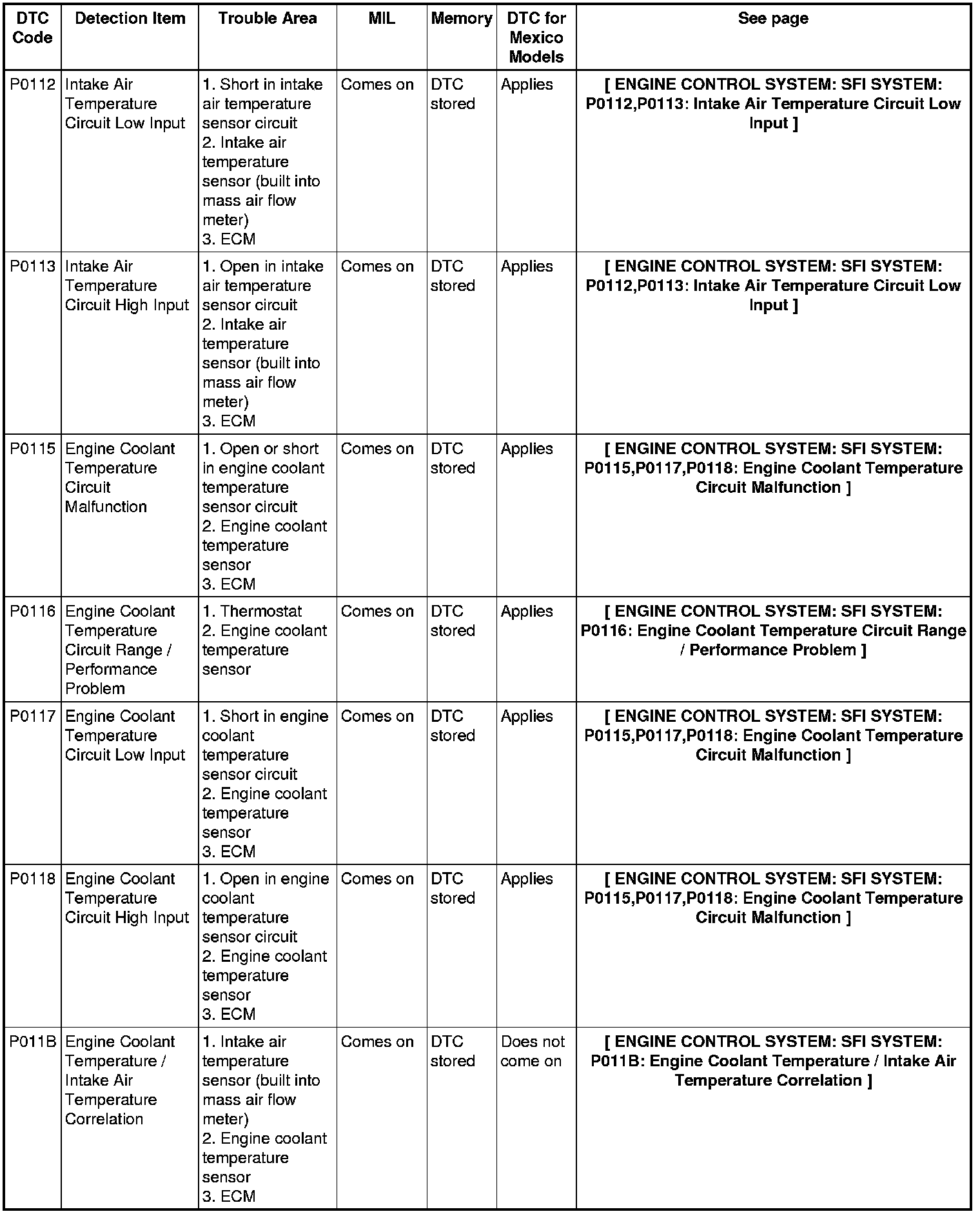

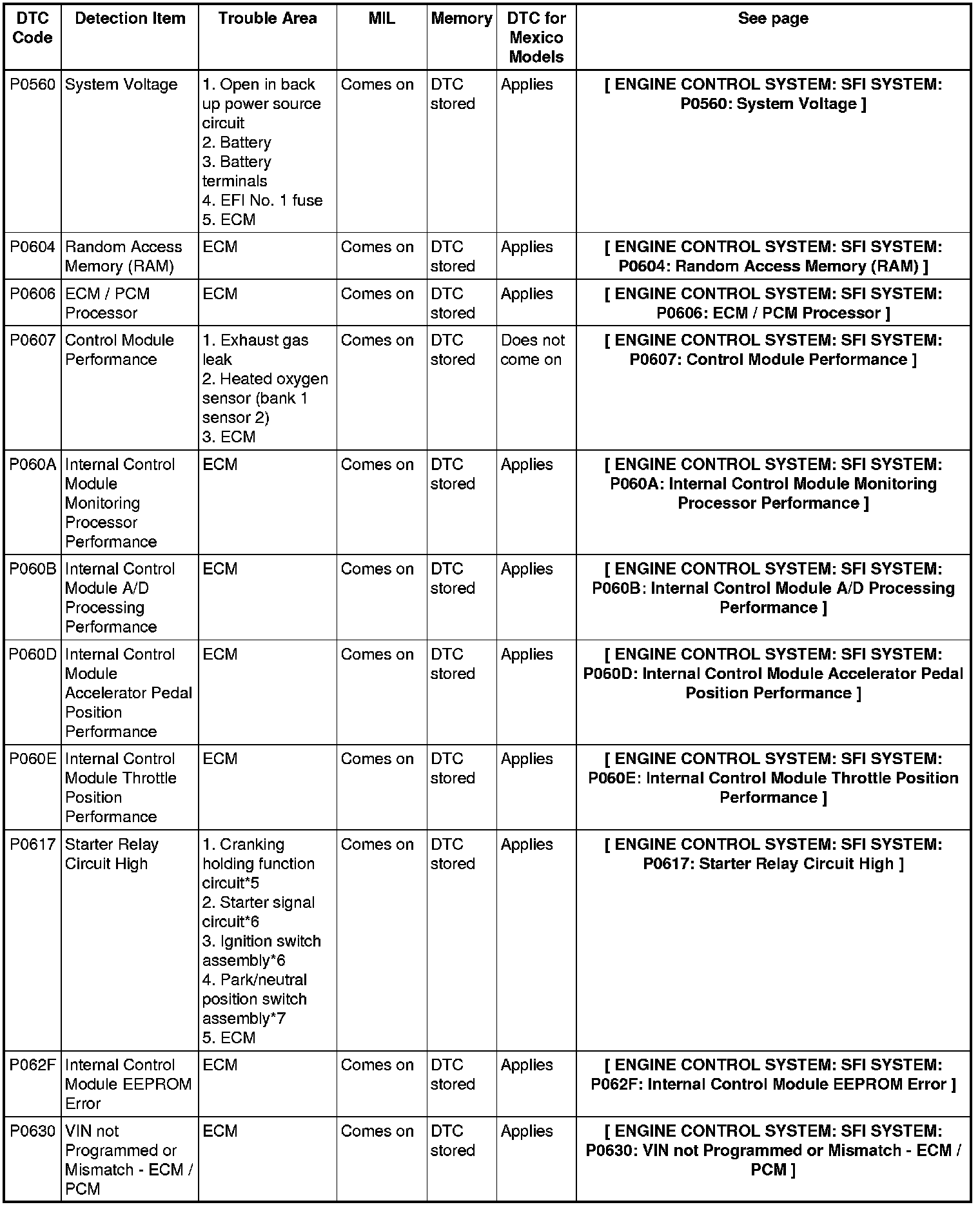

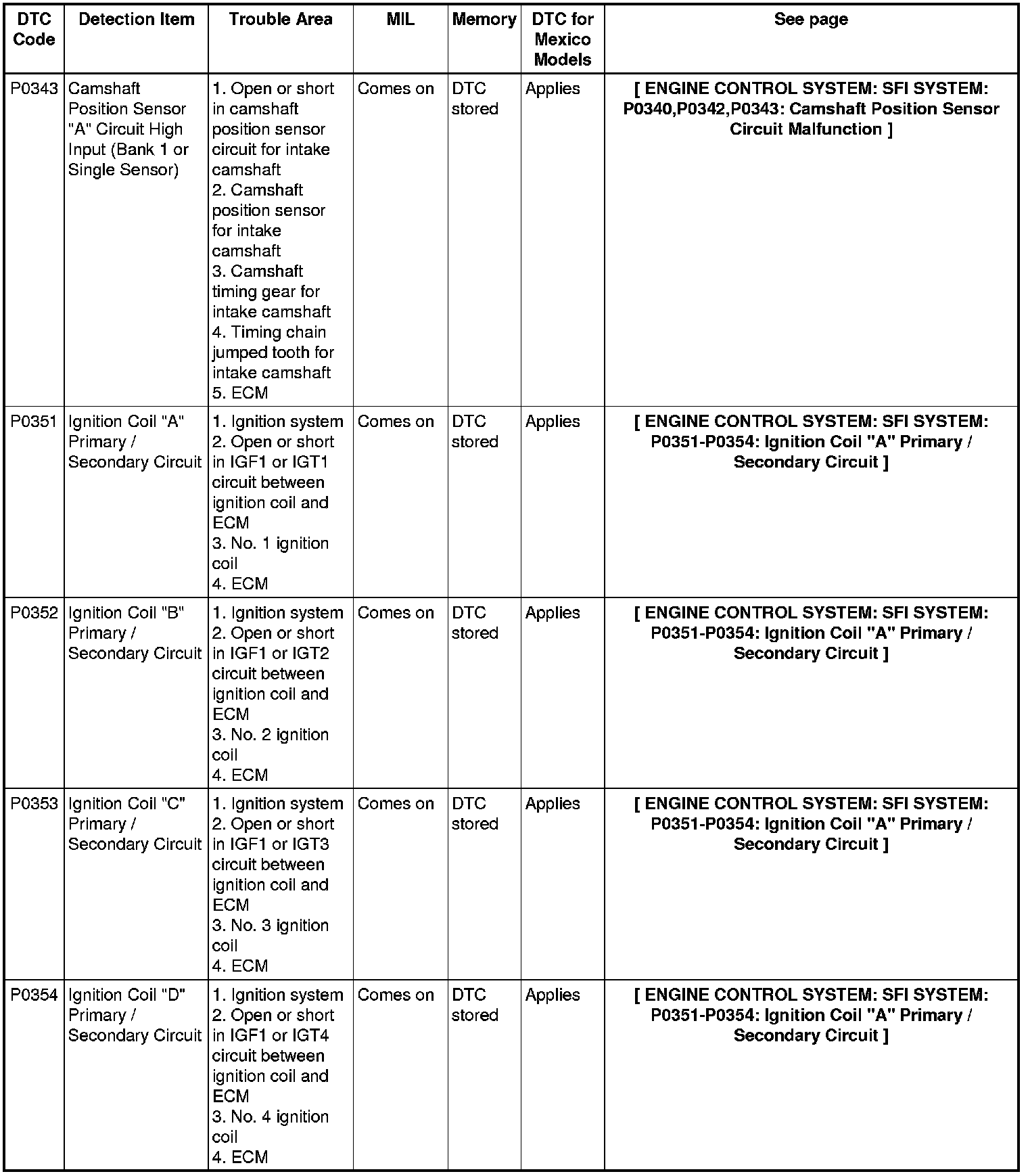

2AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the " See page" below.

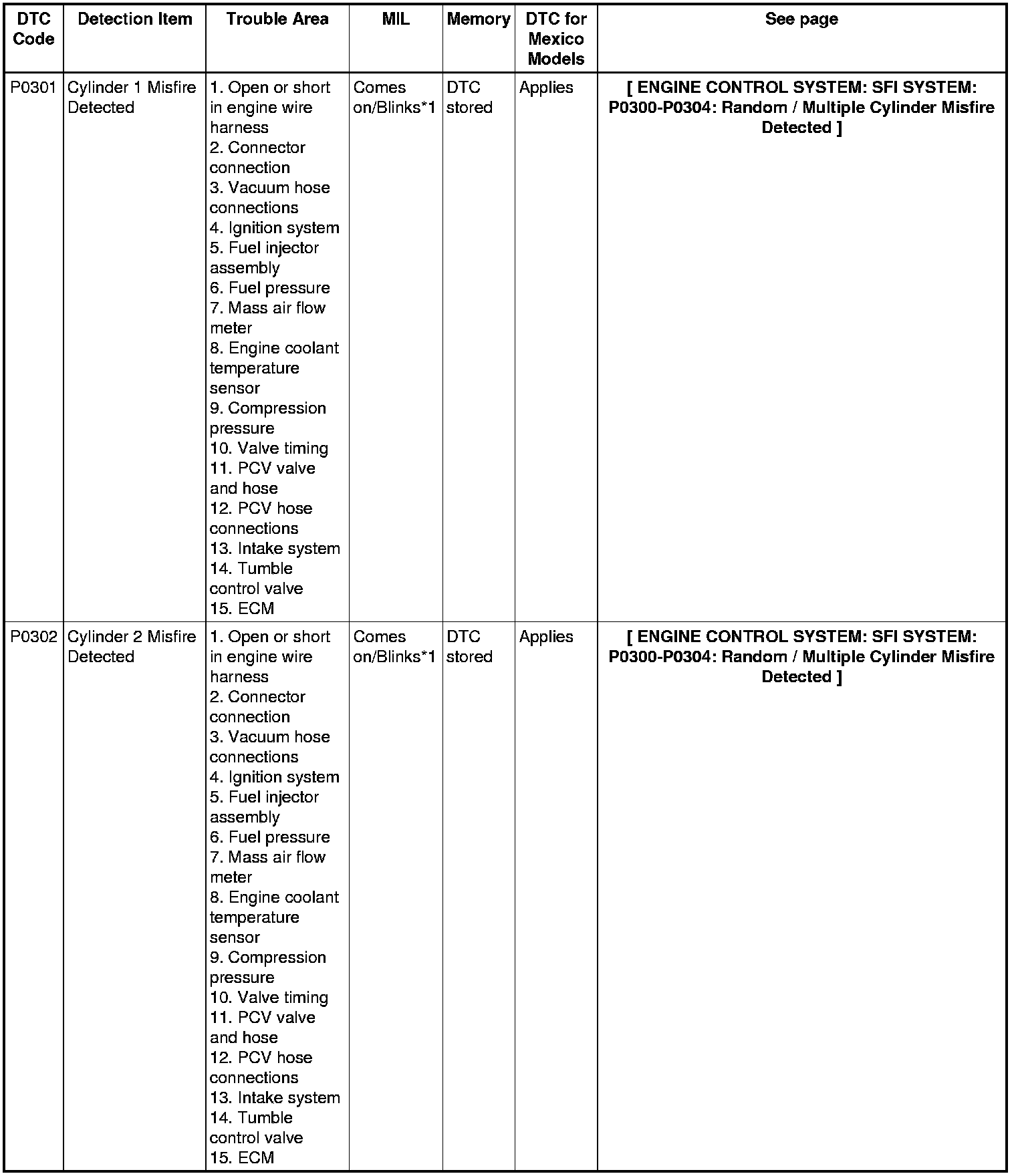

*1: The MIL flashes when a catalyst damaging misfire is detected

*2: Only for Mexico models

*3: for PZEV

*4: Except PZEV

*5: w/ Smart Key System

*6: w/o Smart Key System

*7: Automatic Transaxle models

*8: w/ Tire Pressure Warning System

*9: for Separate Type Amplifier System

*10: w/ Navigation System

SFI SYSTEM
