Rear View Monitor System
PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" in the DTC chart. Inspect fuses and relays before investigating the trouble areas shown in the table below.

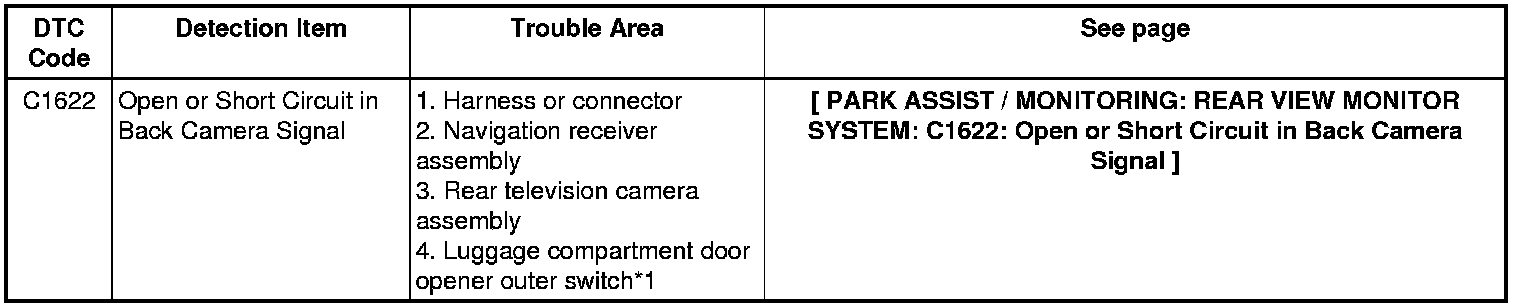

Rear View Monitor System
* *1: w/ Smart Key System
