C1448

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for BOSCH Made): C1448/98: Yaw Rate Sensor Output Malfunction
C1448/98 - Yaw Rate Sensor Output Malfunction

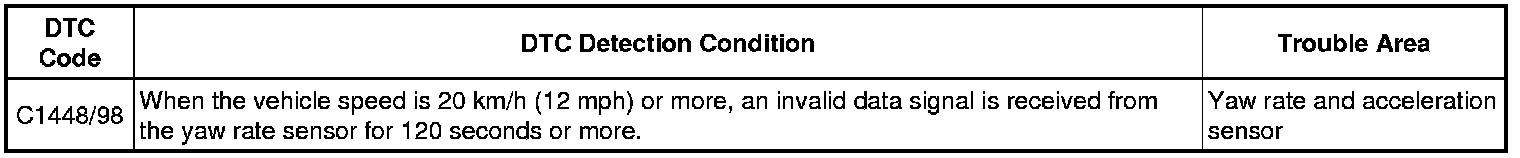

DESCRIPTION

The skid control ECU receives signals from the yaw rate and acceleration sensor via the CAN communication system.

The yaw rate sensor has a built-in acceleration sensor and detects the vehicle condition.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Vehicle Stability Control System (for BOSCH Made).

(b) Start and idle the engine.

(c) Drive the vehicle at a speed of 20 km/h (12 mph) or more for at least 120 seconds, and then stop the engine.

(d) Check if the same DTC is recorded Vehicle Stability Control System (for BOSCH Made).

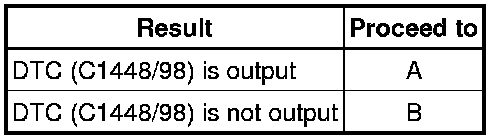

Result:





B -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) Diagnosis System

A -- REPLACE YAW RATE AND ACCELERATION SENSOR Removal
