Engine Immobiliser System (w/o Smart Key System)

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): B2784: Antenna Coil Open / Short

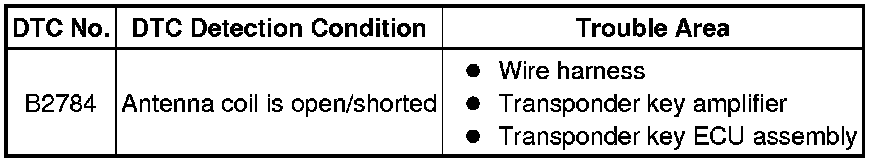

B2784 - Antenna Coil Open / Short

DESCRIPTION

The transponder key coil is built into the transponder key amplifier and receives a key code signal from the transponder chip in the key. This signal is amplified by the amplifier, then it is output to the transponder key ECU assembly.

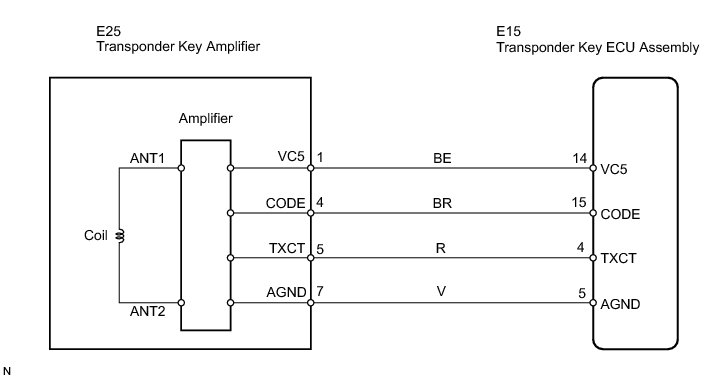

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
If the transponder key ECU assembly is replaced, register the key and ECU communication ID Engine Immobiliser System (W/O Smart Key System).

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch to the ON position.

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Immobiliser / Data List.

(e) Read the Data List according to the display on the tester.

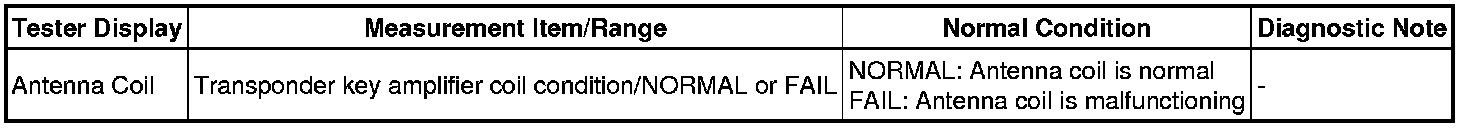

Immobiliser:





OK:

NORMAL (Antenna coil is normal) appears on the screen.

OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
NG -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - TRANSPONDER KEY AMPLIFIER)

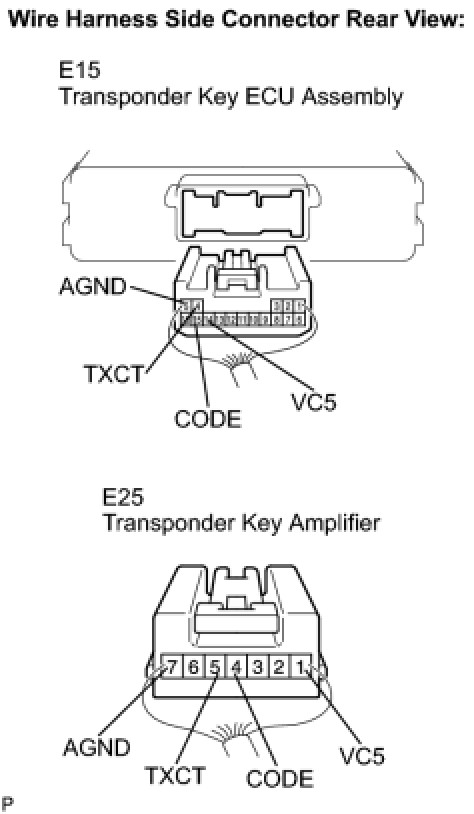

(a) Disconnect the E15 ECU and E25 amplifier connectors.

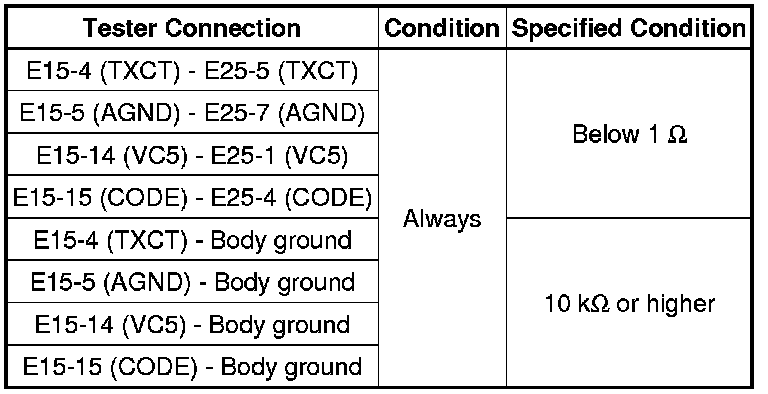

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT TRANSPONDER KEY ECU ASSEMBLY (TRANSPONDER KEY AMPLIFIER POWER SOURCE)

(a) Reconnect the E15 ECU and E25 amplifier connectors.

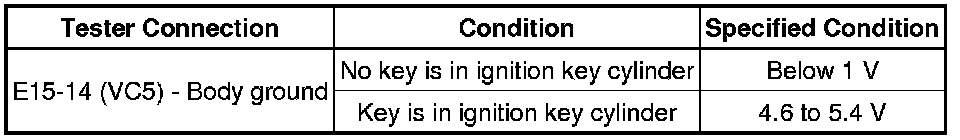

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
OK -- Continue to next step.

4. INSPECT TRANSPONDER KEY ECU ASSEMBLY (TRANSPONDER KEY AMPLIFIER GROUND)

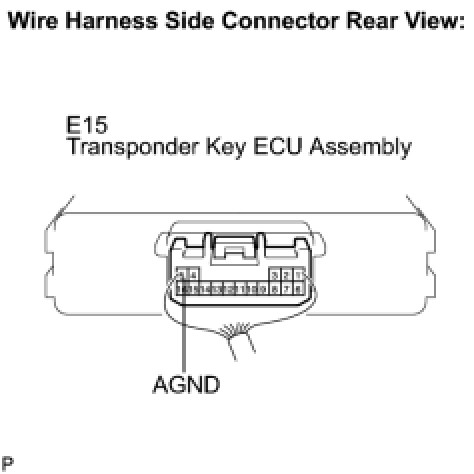

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPLACE TRANSPONDER KEY ECU ASSEMBLY

OK -- REPLACE TRANSPONDER KEY AMPLIFIER
