B2782

STEERING COLUMN: STEERING LOCK SYSTEM: B2782: Power Source Control ECU Malfunction
B2782 - Power Source Control ECU Malfunction

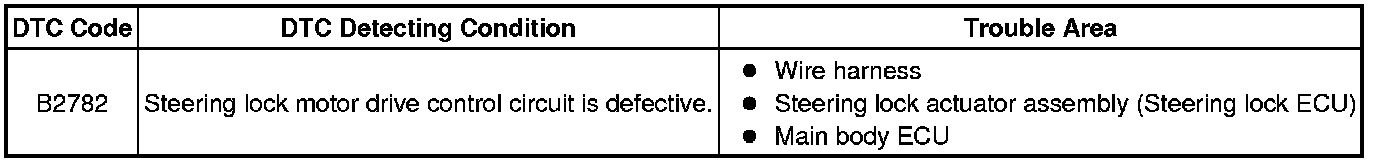

DESCRIPTION

The main body ECU (*) controls the power supply to activate the steering lock motor. This prevents the steering from being locked while the vehicle is moving.

HINT
*: The power source control ECU is not a physical part. This code refers to the power source control function performed by the main body ECU.

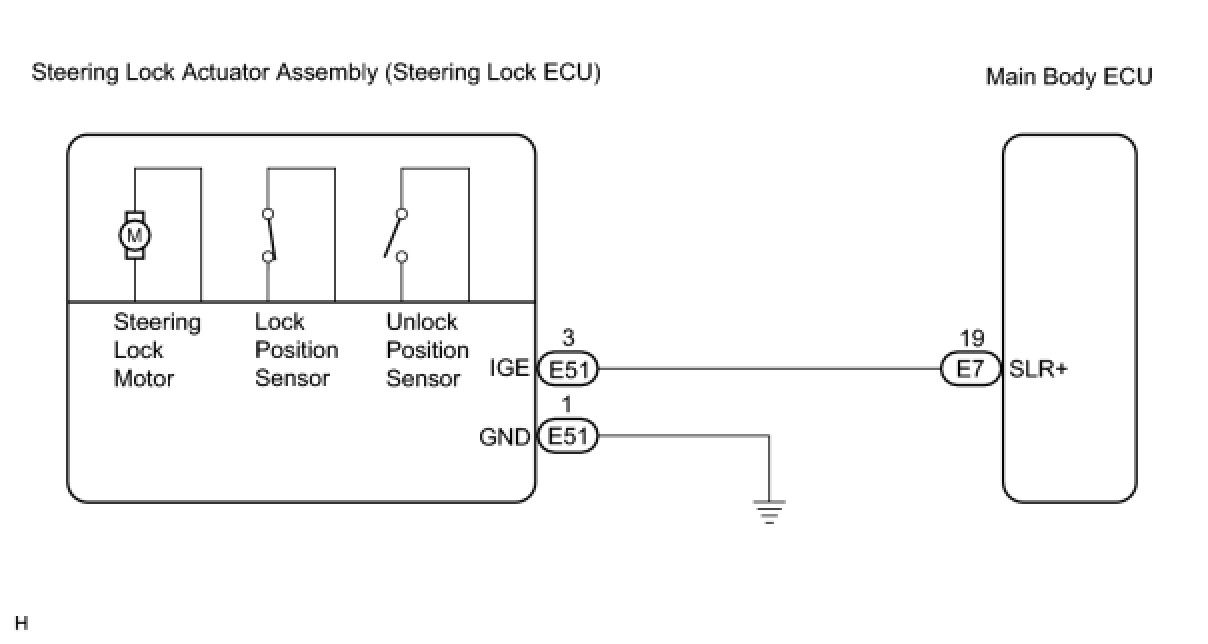

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

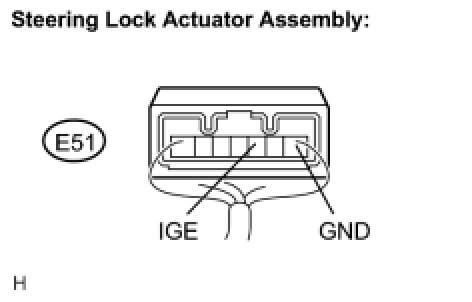

(a) Measure the voltage according to the value(s) in the table below.

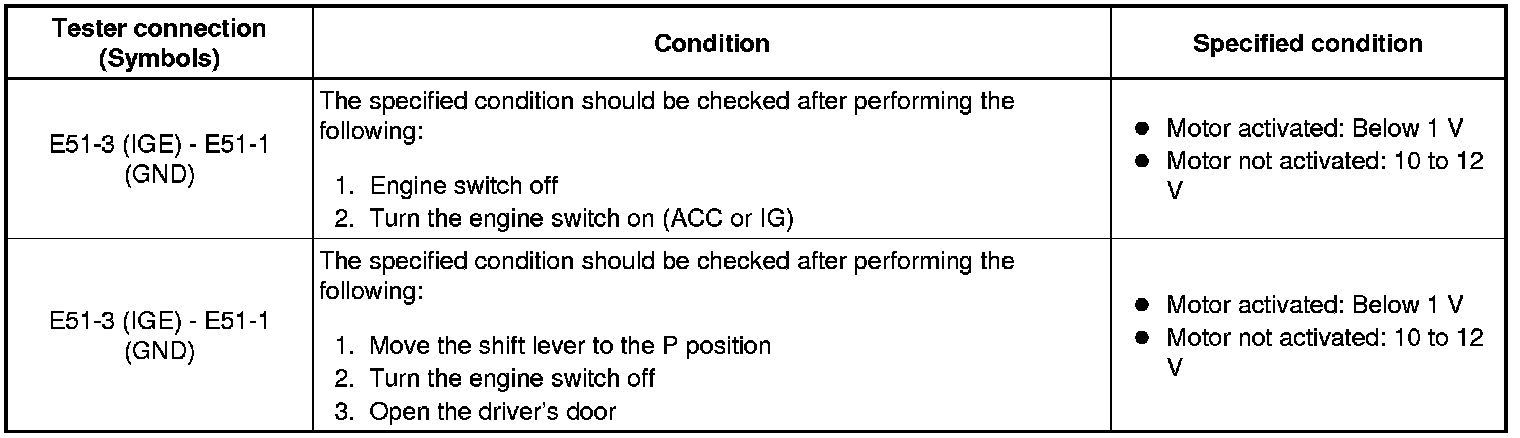

Standard voltage:





HINT
The steering lock ECU and steering lock actuator assembly are supplied as a unit.

OK -- REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
NG -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR ASSEMBLY - BODY GROUND)

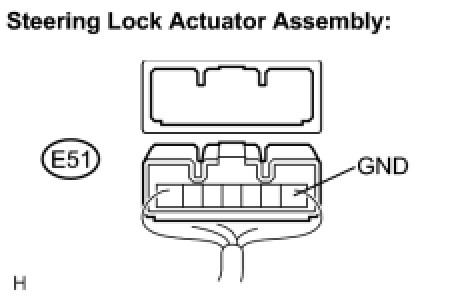

(a) Disconnect the E51 connector from the steering lock actuator assembly.





(b) Measure the resistance according to the value(s) in the table below.

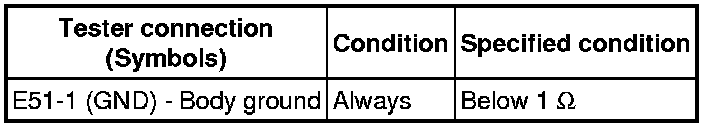

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR ASSEMBLY - MAIN BODY ECU)

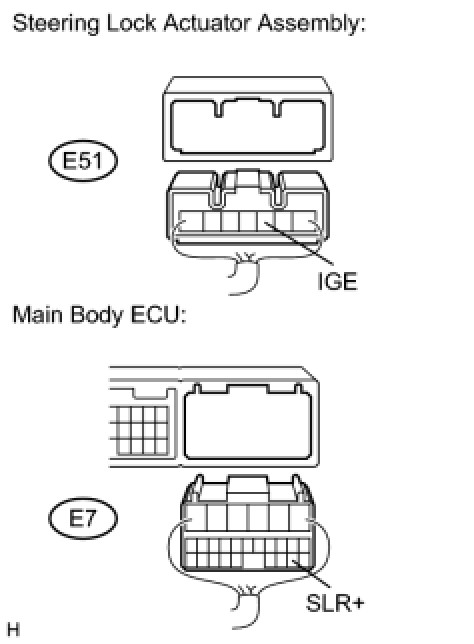

(a) Disconnect the E7 connector from the main body ECU.





(b) Measure the resistance according to the value(s) in the table below.

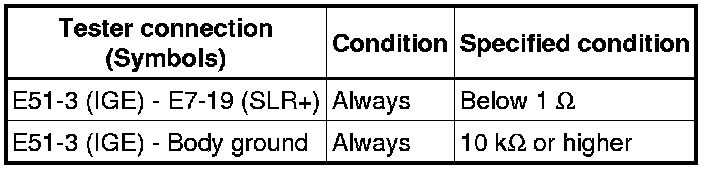

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE MAIN BODY ECU
