2AR-FE STARTING: SMART KEY SYSTEM: B2288: Steering Lock Signal Circuit Malfunction
B2288 - Steering Lock Signal Circuit Malfunction

DESCRIPTION

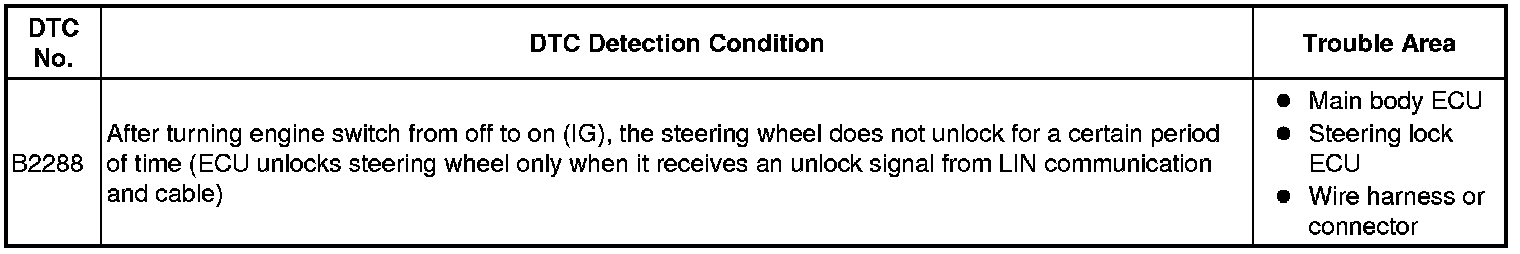

This DTC is output when the main body ECU cannot detect the unlock condition of the steering lock within a specified time.

HINT
When the main body ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

After the main body ECU is replaced, perform the registration procedures for the engine immobiliser system Engine Immobiliser System (W/ Smart Key System).

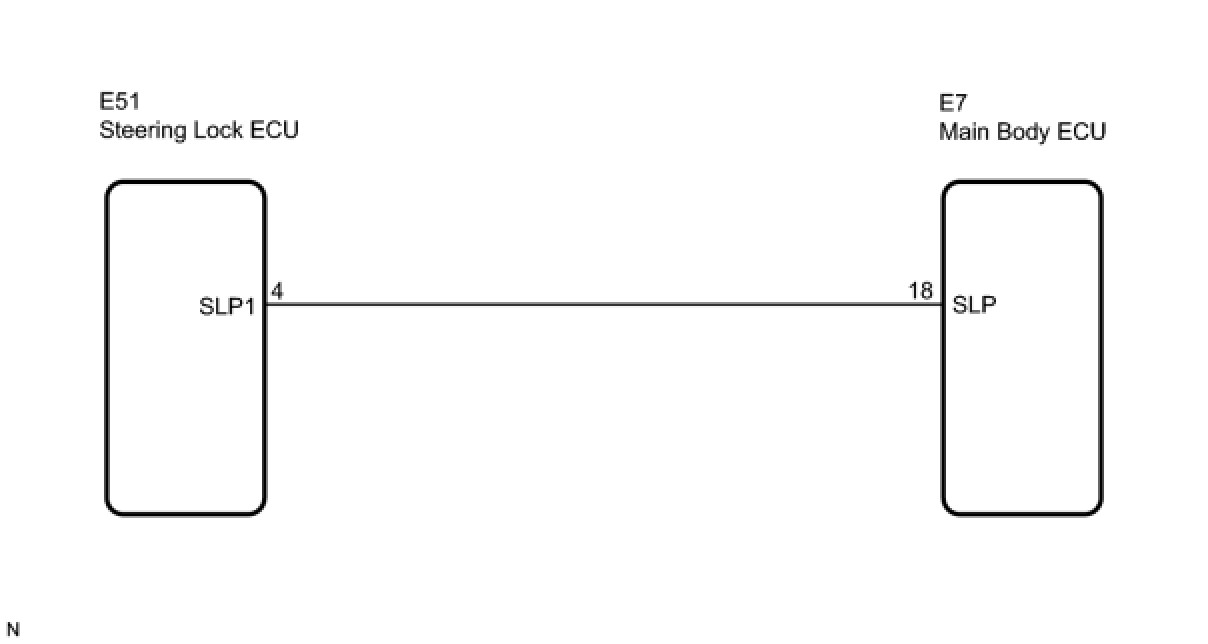

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTCS

(a) Delete the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) After all DTCs are cleared, check if the trouble occurs again 5 seconds after the engine switch is turned on (IG).

(c) Check for DTCs again.

OK:

DTC B2785, DTC B2287 and DTC B2781 are not output.

HINT
* If DTC B2785 is output B2785.
* If DTC B2287 is output B2287.
* If DTC B2271 is output B2271.

NG -- GO TO DTC CHART
OK -- Continue to next step.

2. CHECK WIRE HARNESS (MAIN BODY ECU - STEERING LOCK ECU)

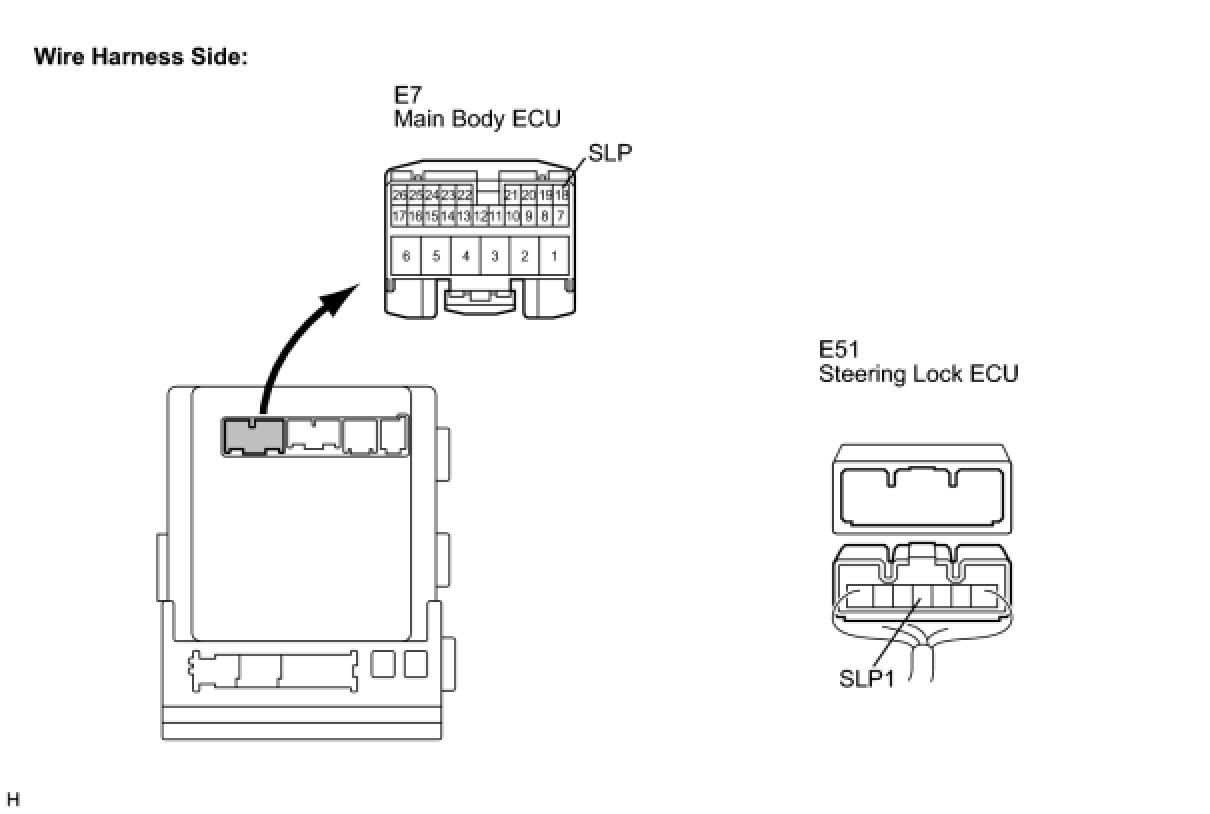

(a) Disconnect the E7 and E51 ECU connectors

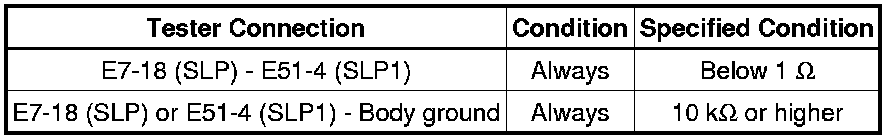

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK MAIN BODY ECU OPERATION

(a) After replacing the main body ECU with a normally functioning ECU, check that the steering lock/unlock function operates normally.

OK:

Steering lock/unlock function operates normally.

HINT
If steering lock/unlock function does not operate, refer to PROBLEM SYMPTOMS TABLE of the electrical steering lock (steering wheel cannot be unlocked) Symptom Related Diagnostic Procedures.

NG -- GO TO ELECTRIC STEERING LOCK

OK -- END (MAIN BODY ECU DEFECTIVE)
