B1795

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1795: Occupant Classification ECU Malfunction
B1795 - Occupant Classification ECU Malfunction

DESCRIPTION

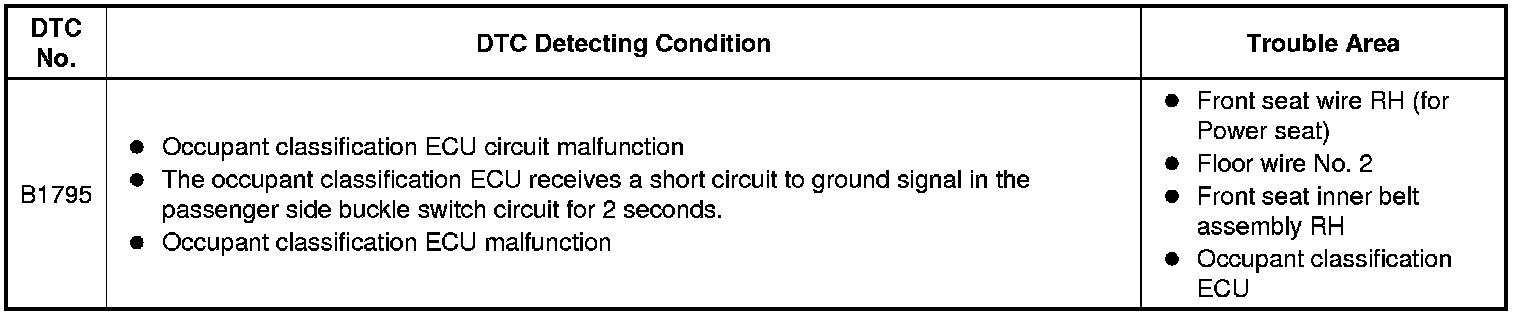

DTC B1795 is recorded when a malfunction is detected in the occupant classification ECU.

Troubleshoot the DTC B1771 first when the DTC B1771 and B1795 are output simultaneously.





HINT
When DTC B1650/32 is detected as a result of troubleshooting for the AIRBAG SYSTEM, check the DTCs stored in the occupant classification ECU. When DTC B1795 is output, perform troubleshooting for the DTC.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Turn the ignition switch on (IG), and wait for at least 10 seconds.

(b) Check the DTCs Reading and Clearing Diagnostic Trouble Codes.

Result:

A
DTC B1771 and B1795 are output.

B
DTC B1795 is output.

HINT
Codes other than DTC B1771 and B1795 may be output at this time, but they are not related to this check.

A -- GO TO DTC B1771 B1771
B -- Continue to next step.

2. REPLACE OCCUPANT CLASSIFICATION ECU

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery.

(c) Replace the occupant classification ECU Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

3. PERFORM ZERO POINT CALIBRATION

(a) Connect the negative (-) terminal cable to the battery.

(b) Connect Techstream to the DLC3.

(c) Turn the ignition switch on (IG).

(d) Using Techstream, perform "zero point calibration" Programming and Relearning.

OK:

"Zero Point Calibration is complete." is displayed.

NEXT -- Continue to next step.

4. PERFORM SENSITIVITY CHECK

(a) Using Techstream, perform "sensitivity check" Programming and Relearning.

Standard value:

27 to 33 kg (59.52 to 72.75 lb)

NEXT -- END
