B15BA

NAVIGATION: NAVIGATION SYSTEM: B15BA: XM Tuner Malfunction
B15BA - XM Tuner Malfunction

DESCRIPTION

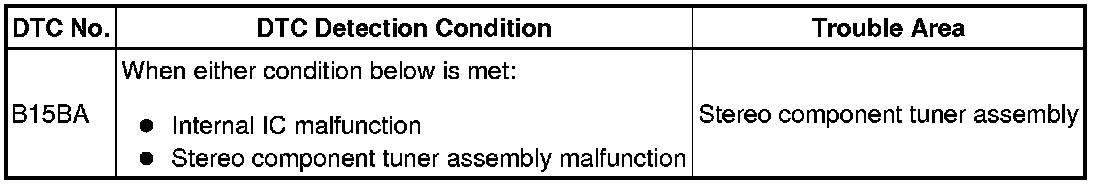

This DTC is stored when a malfunction occurs in the stereo component tuner assembly.





INSPECTION PROCEDURE

NOTICE:
After replacing the stereo component tuner assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

PROCEDURE

1. CHECK DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs and check if the same trouble occurs again.

OK:

No DTC is output.

NG -- REPLACE STEREO COMPONENT TUNER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
