B15B0

NAVIGATION: NAVIGATION SYSTEM: B15B0: Display Screen Malfunction
B15B0 - Display Screen Malfunction

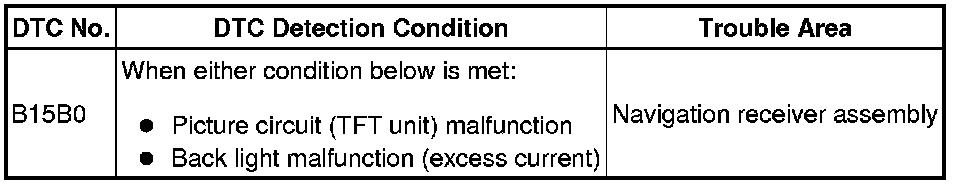

DESCRIPTION

This DTC is stored when a malfunction occurs in the navigation receiver assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs and check if the same trouble occurs again.

OK:

No DTC is output.

NG -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
