B1593

NAVIGATION: NAVIGATION SYSTEM: B1593,B15D3: No Response from Stereo Component Amplifier
B15D3 - Stereo Component Amplifier Disconnected

DESCRIPTION

The navigation receiver assembly and stereo component amplifier are connected by the AVC-LAN communication line.

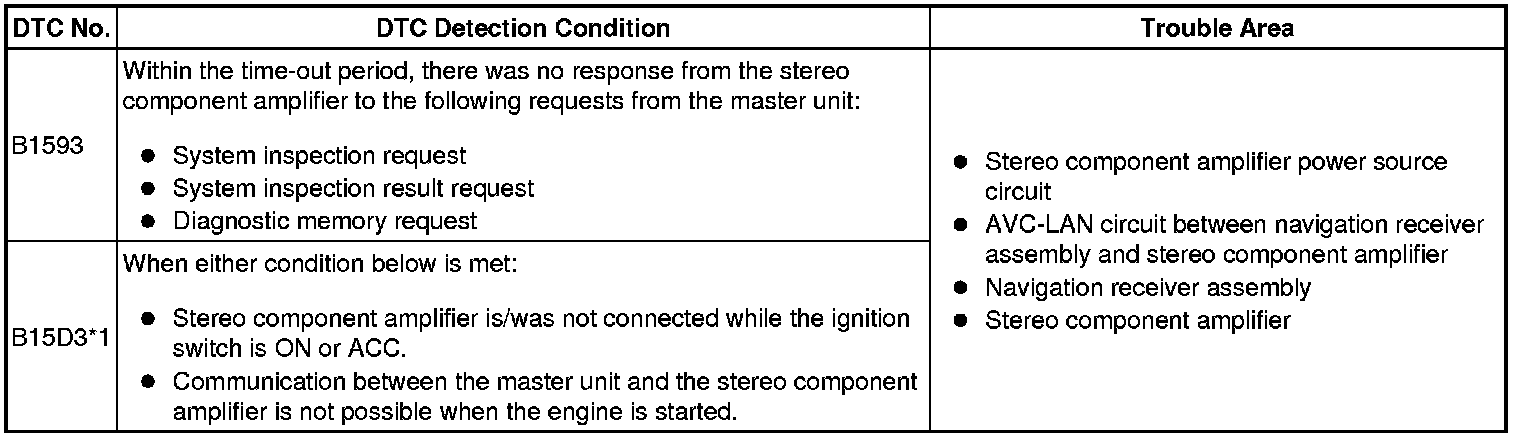

When an AVC-LAN communication error occurs between the navigation receiver assembly and stereo component amplifier, these DTCs will be stored.





HINT
* *1: Even if no fault is present, this DTC may be stored depending on the battery condition or engine start voltage.
* The navigation receiver assembly is the master unit.

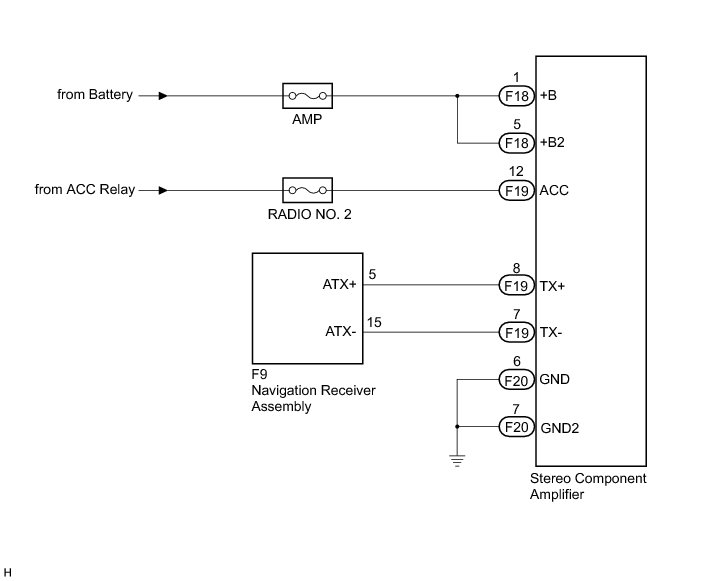

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

(a) Check for optional components.

(1) Check that optional components (including associated wiring) which generate radio waves are not installed.

Result:





HINT
* Electrical noise from radio waves generated by optional components or the wiring for those components may affect AVC-LAN communication.
* This DTC may be stored when an AVC-LAN communication error occurs due to electrical noise.

B -- CHECK DTC
A -- Continue to next step.

2. REMOVE OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

(a) Remove optional components (including associated wiring).

NOTICE:
Do not remove optional components or associated wiring without the permission of the customer.

NEXT -- Continue to next step.

3. CHECK DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER POWER SOURCE)

OK -- END

4. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER POWER SOURCE)

(a) Disconnect the stereo component amplifier connector.





(b) Disconnect the stereo component amplifier connector.





(c) Disconnect the stereo component amplifier connector.

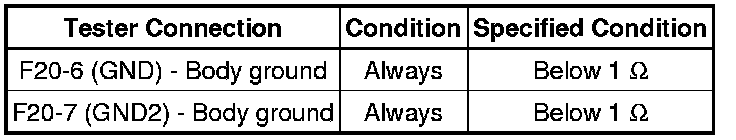

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

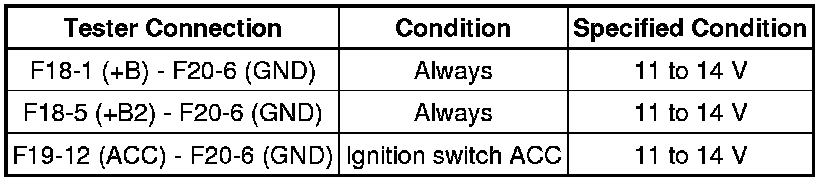

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER)

(a) Disconnect the navigation receiver assembly connector.





(b) Disconnect the stereo component amplifier connector.

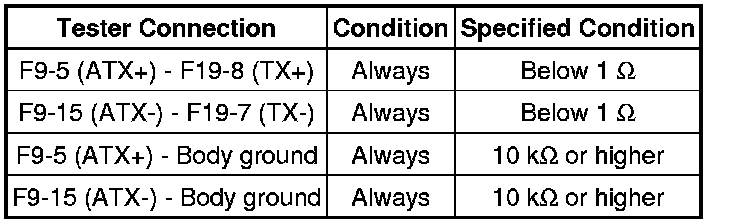

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. REPLACE STEREO COMPONENT AMPLIFIER

(a) Replace the stereo component amplifier Removal.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Recheck for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal

OK -- END
