Windshield Washer Motor: Testing and Inspection

WIPER AND WASHER: WASHER MOTOR: ON-VEHICLE INSPECTION

1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

(a) Operation Check





(1) Fill the washer jar with washer fluid.

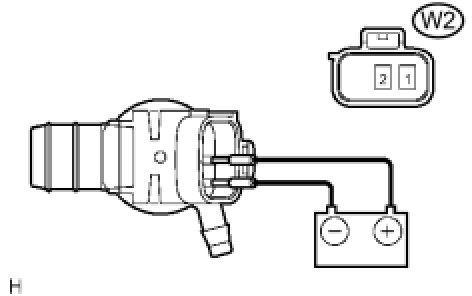

(2) Connect the positive battery (+) lead to terminal 2 of the windshield washer motor and pump assembly, and the negative battery (-) lead to terminal 1.

(3) Check that washer fluid flows from the washer jar.
