Symptom Related Diagnostic Procedures
WIPER AND WASHER: WIPER AND WASHER SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
* Proceed to troubleshooting of each circuit in the tables below.
* Inspect the fuse and relay before confirming the suspected area as shown in the tables below.
Inspect each malfunction circuit in numerical order for the corresponding symptom.
If the malfunction still exists after checking and confirming that all the circuits are normal, replace the ECU.
1. WIPER AND WASHER SYSTEM

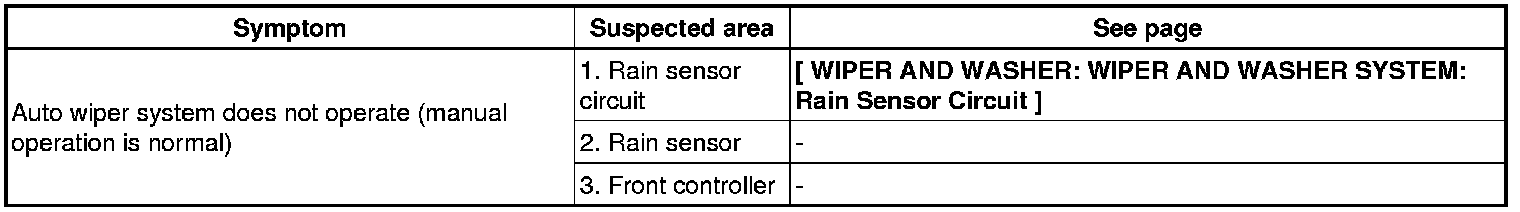

2. AUTO WIPER SYSTEM
