Pinout Values and Diagnostic Parameters
WIPER AND WASHER: WIPER AND WASHER SYSTEM: TERMINALS OF ECU

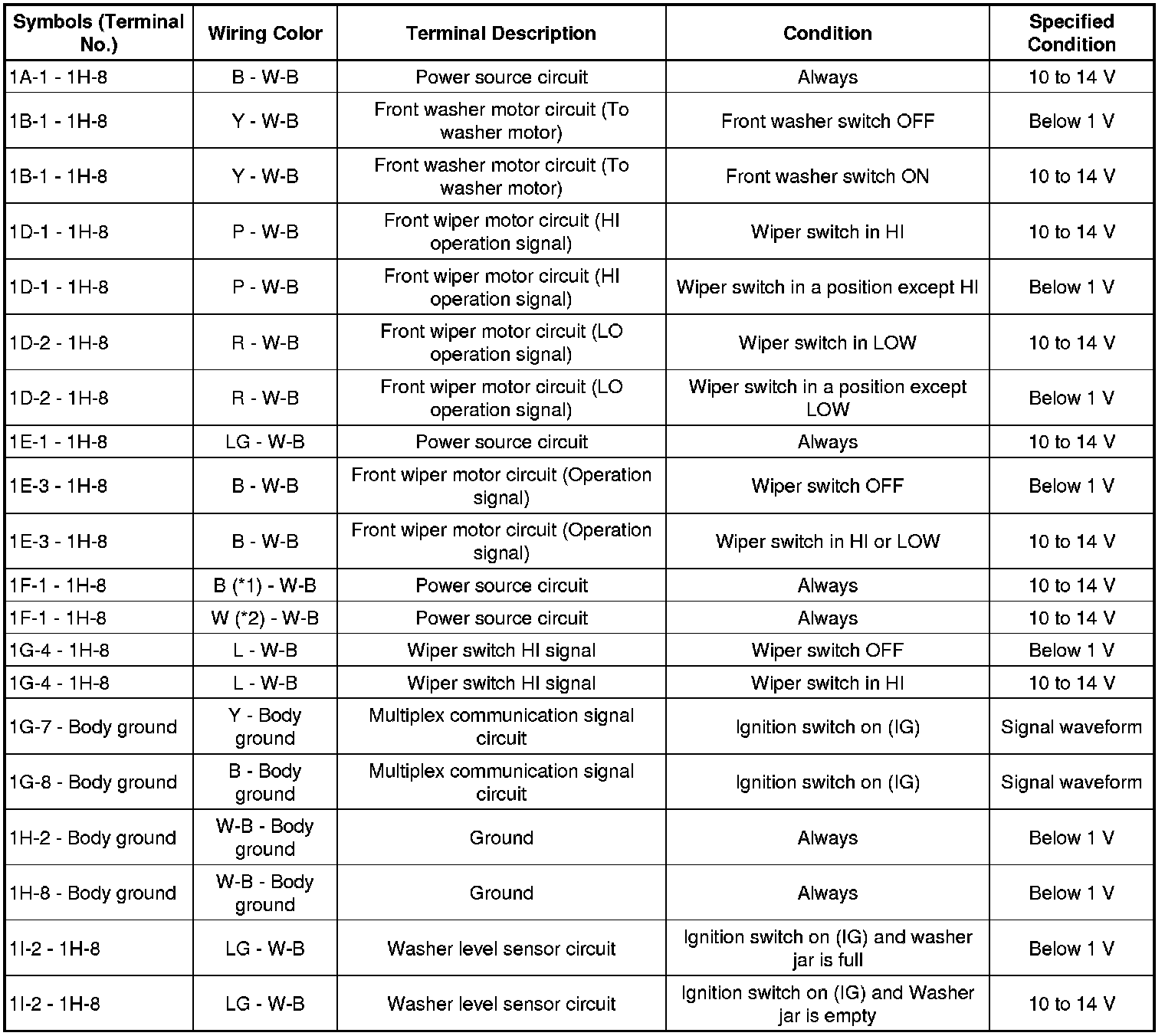

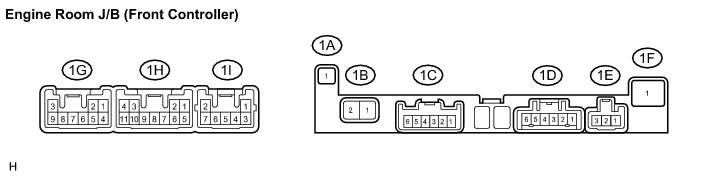

1. FRONT CONTROLLER
*1: w/ Smart Key System
*2: w/o Smart Key System

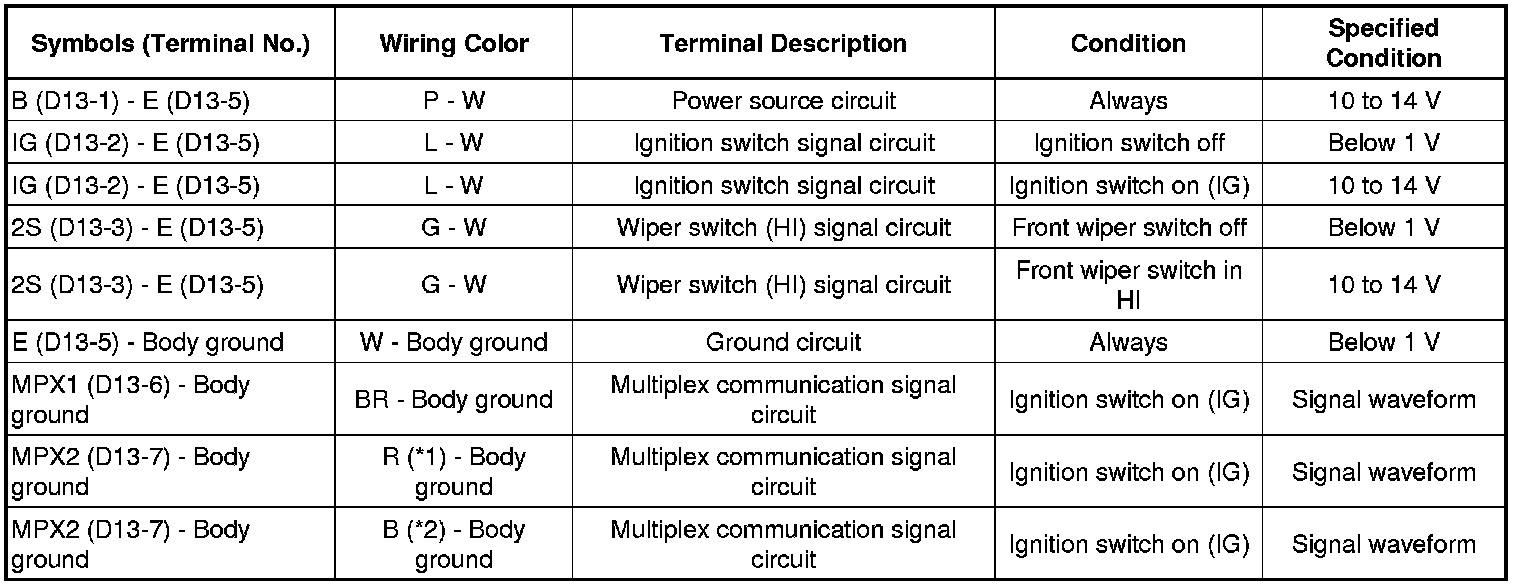

2. COMBINATION SWITCH ECU
*1: w/ Smart Key System
*2: w/o Smart Key System
WIPER AND WASHER: WIPER AND WASHER SYSTEM: TERMINALS OF ECU
1. FRONT CONTROLLER
*1: w/ Smart Key System
*2: w/o Smart Key System
2. COMBINATION SWITCH ECU
*1: w/ Smart Key System
*2: w/o Smart Key System
