Pinout Values and Diagnostic Parameters

INTERIOR: REAR SUNSHADE SYSTEM: TERMINALS OF ECU

1. CHECK REAR SUNSHADE ASSEMBLY (REAR SUNSHADE RELAY)

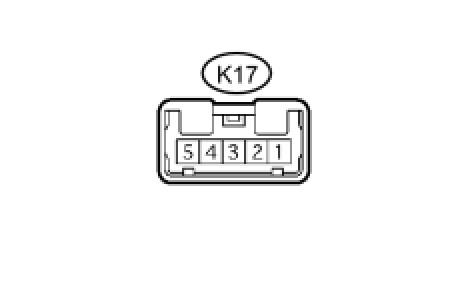

(a) Disconnect the K17 relay connector.

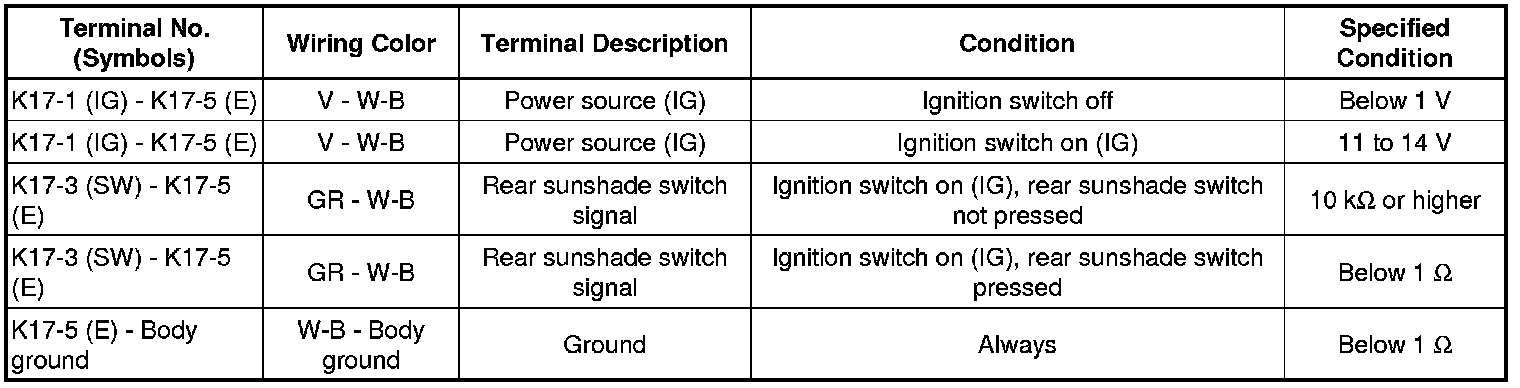

(b) Measure the voltage and resistance according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction in the wire harness side connector.

(c) Connect the K17 relay connector.

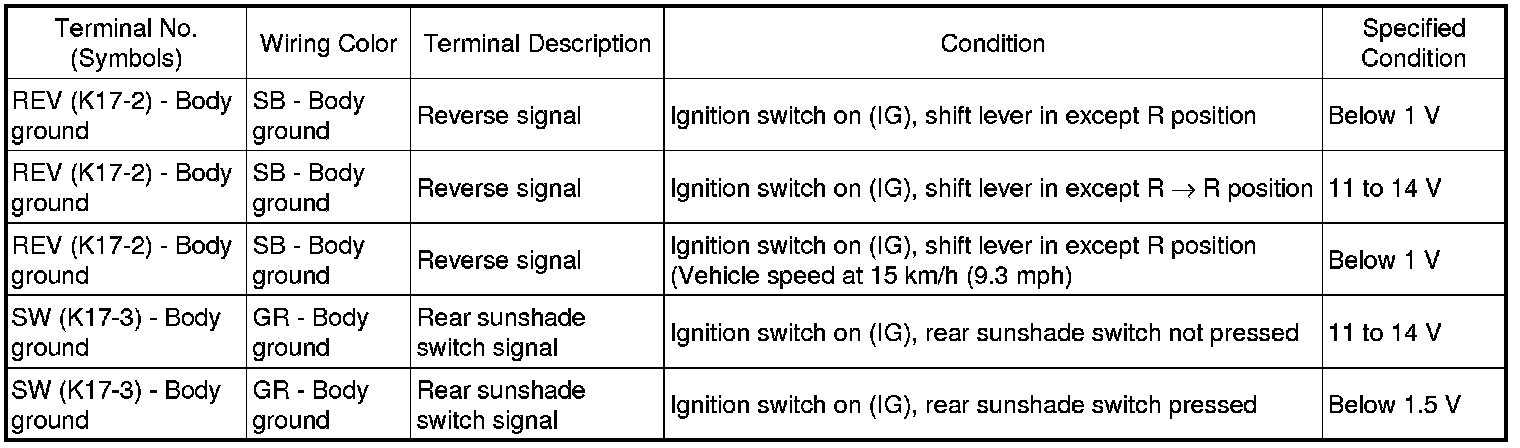

(d) Measure the Voltage of the wire harness side connector.
