Installation (from 12/2010)

WINDSHIELD / WINDOW GLASS: BACK WINDOW GLASS: INSTALLATION

1. INSTALL BACK WINDOW GLASS STOPPER NO.2

(a) Coat the installation part of the stopper with Primer G.





NOTICE:
* Allow the primer coating to dry for 3 minutes or more.
* Dispose of any excess Primer G.
* Do not apply too much Primer G.

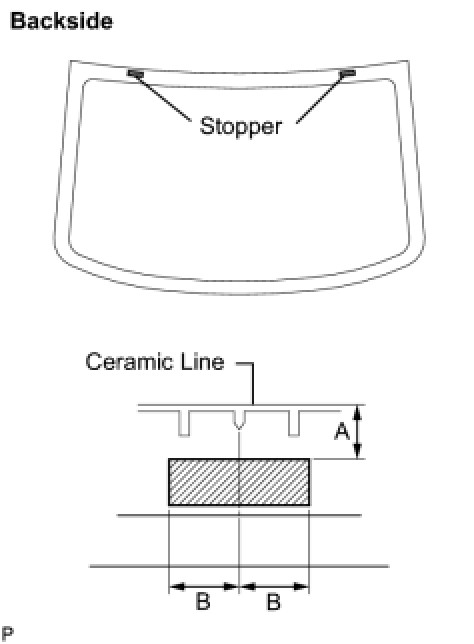

(b) Install 2 new stoppers to the glass as shown in the illustration.

Specification:





2. INSTALL BACK WINDOW GLASS STOPPER NO.1

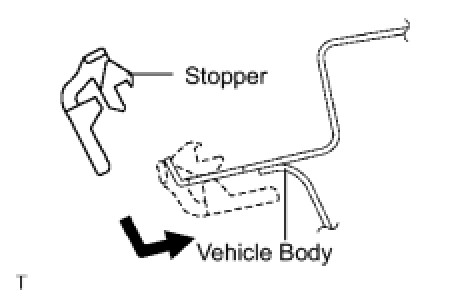

(a) Install 2 new stoppers to the vehicle body as shown in the illustration.





3. INSTALL BACK WINDOW MOULDING OUTSIDE UPPER

(a) Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.

NOTICE:
* Allow the primer coating to dry for 3 minutes or more.
* Dispose of any excess Primer G.
* Do not apply too much Primer G.

(b) Install the moulding.

4. INSTALL BACK WINDOW GLASS

(a) Position the glass.





(1) Using a suction cup, place the glass in the correct position.

(2) Check that the whole contact surface of the glass rim perfectly even.

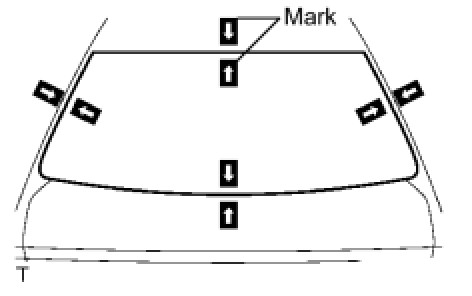

(3) Place reference marks on the glass and vehicle body.

NOTICE:
Check that the stoppers are attached to the vehicle body correctly.

HINT
When reusing the glass, check and correct the reference mark positions.

(4) Using a suction cup, remove the glass.

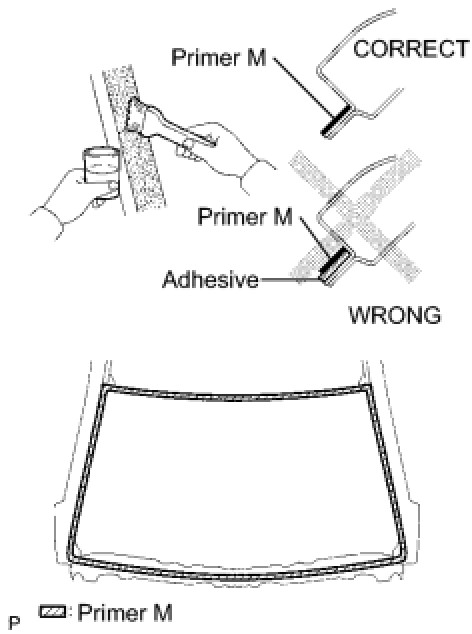

(b) Using a brush, coat the exposed areas of the vehicle body, where all adhesive has been removed with Primer M.





NOTICE:
* Allow the primer coating to dry for 3 minutes or more.
* Do not coat the area adhesive is still remaining with Primer M.
* Dispose of any excess Primer M.
* Do not apply too much Primer M.

(c) Using a brush or sponge, coat the edge of the glass and the contact surface with Primer M.

HINT
If a non-specified area is coated by accident, wipe off the primer with a clean a piece of cloth before it dries out.

NOTICE:
* Allow the primer coating to dry for 3 minutes or more.
* Dispose of any excess Primer M.
* Do not apply too much Primer M.

(d) Apply adhesive.





Adhesive:

Toyota Genuine Windshield Glass Adhesive or equivalent

(1) Cut off the tip of the cartridge nozzle as shown in the illustration.

HINT

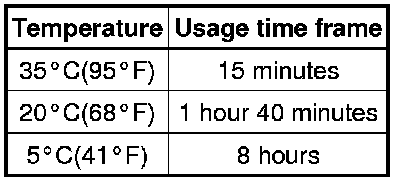

After cutting off the tip, use adhesive within the time described in the table below.

Usage time frame:





(2) Load a sealer gun with the cartridge.

(3) Coat the glass with adhesive as shown in the illustration.

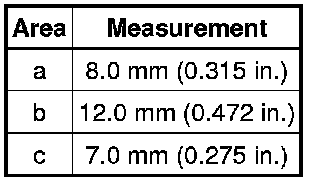

Specification:





(e) Install the glass.

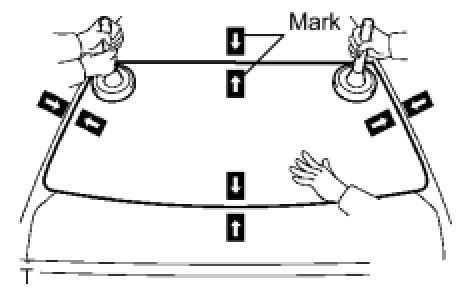

(1) Using a suction cup, position the glass so that the reference marks are aligned. Press it in gently along the rim.

NOTICE:
* Allow the primer coating to dry for 3 minutes or more.
* Check that the stoppers are attached to the vehicle body correctly.
* Check that there is a small gap between the vehicle body and glass.

(2) Lightly press the front surface of the glass to ensure that the glass is securely fit to the vehicle body.

(3) Using a scraper, remove any excess adhesive.





HINT
Make sure that adhesive is applied up to the glass rim.

NOTICE:

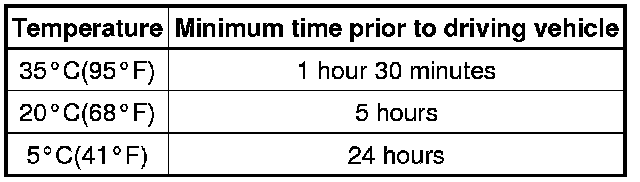

The vehicle should not be driven until the time indicated in the table below has elapsed after applying adhesive.

Minimum time:





5. INSPECT FOR LEAKS AND REPAIR

(a) Conduct a leak test after the adhesive has completely hardened.

(b) Seal any leaks with auto glass sealer.

6. INSTALL ROOF HEADLINING ASSY

7. INSTALL REAR ROOM LIGHT ASSEMBLY

8. INSTALL ASSIST GRIP SUB-ASSEMBLY

9. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

10. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH Installation (from 12/2010)

11. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH Installation (from 12/2010)

12. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
