Pinout Values and Diagnostic Parameters

WINDSHIELD / WINDOW GLASS: POWER WINDOW CONTROL SYSTEM: TERMINALS OF ECU

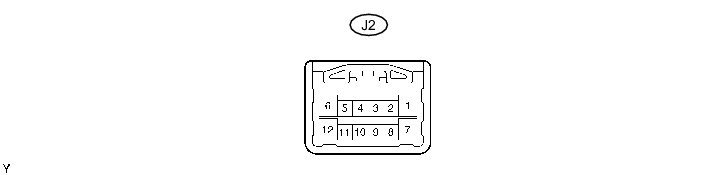

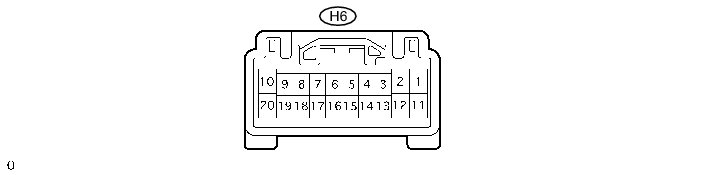

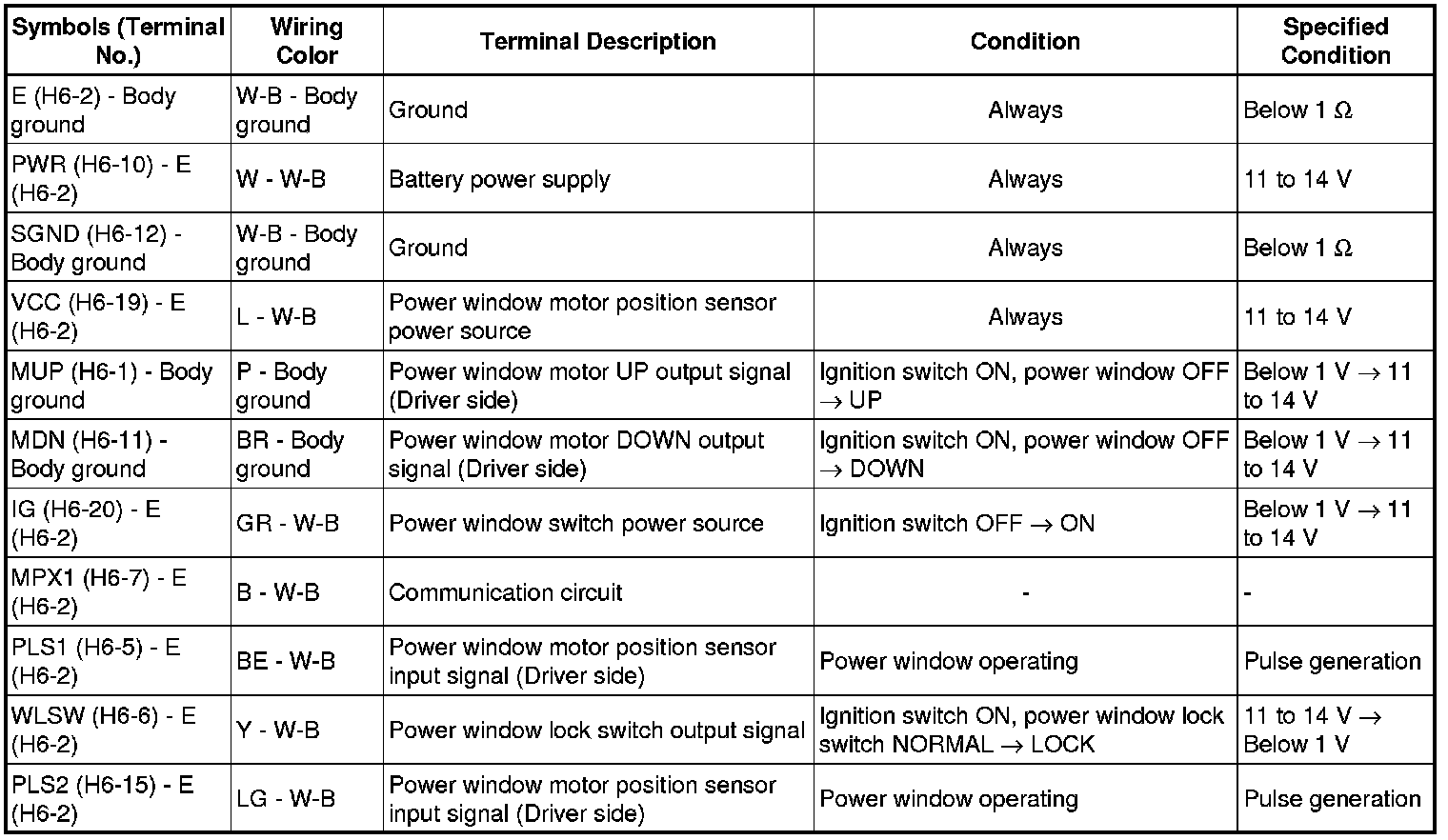

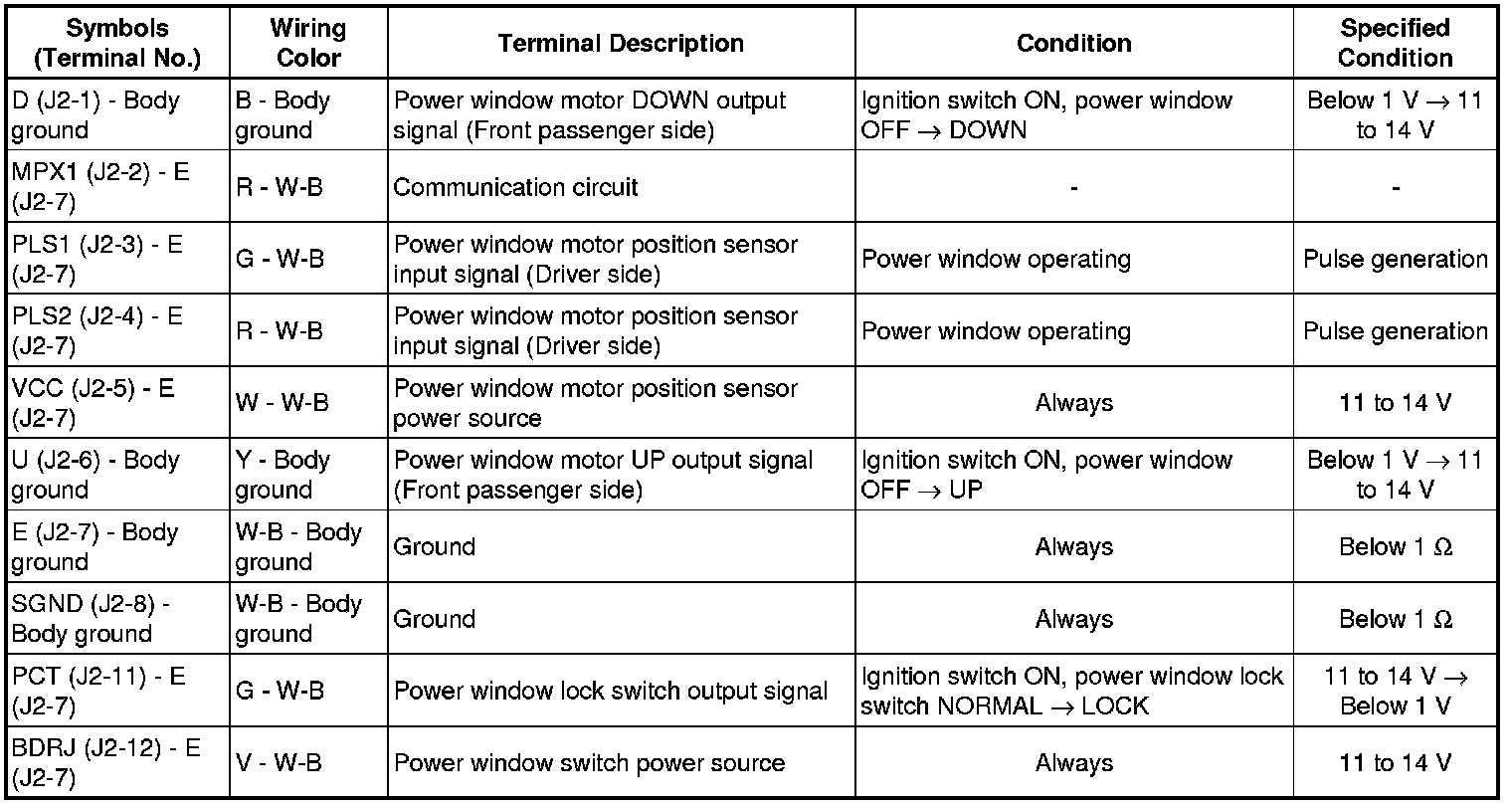

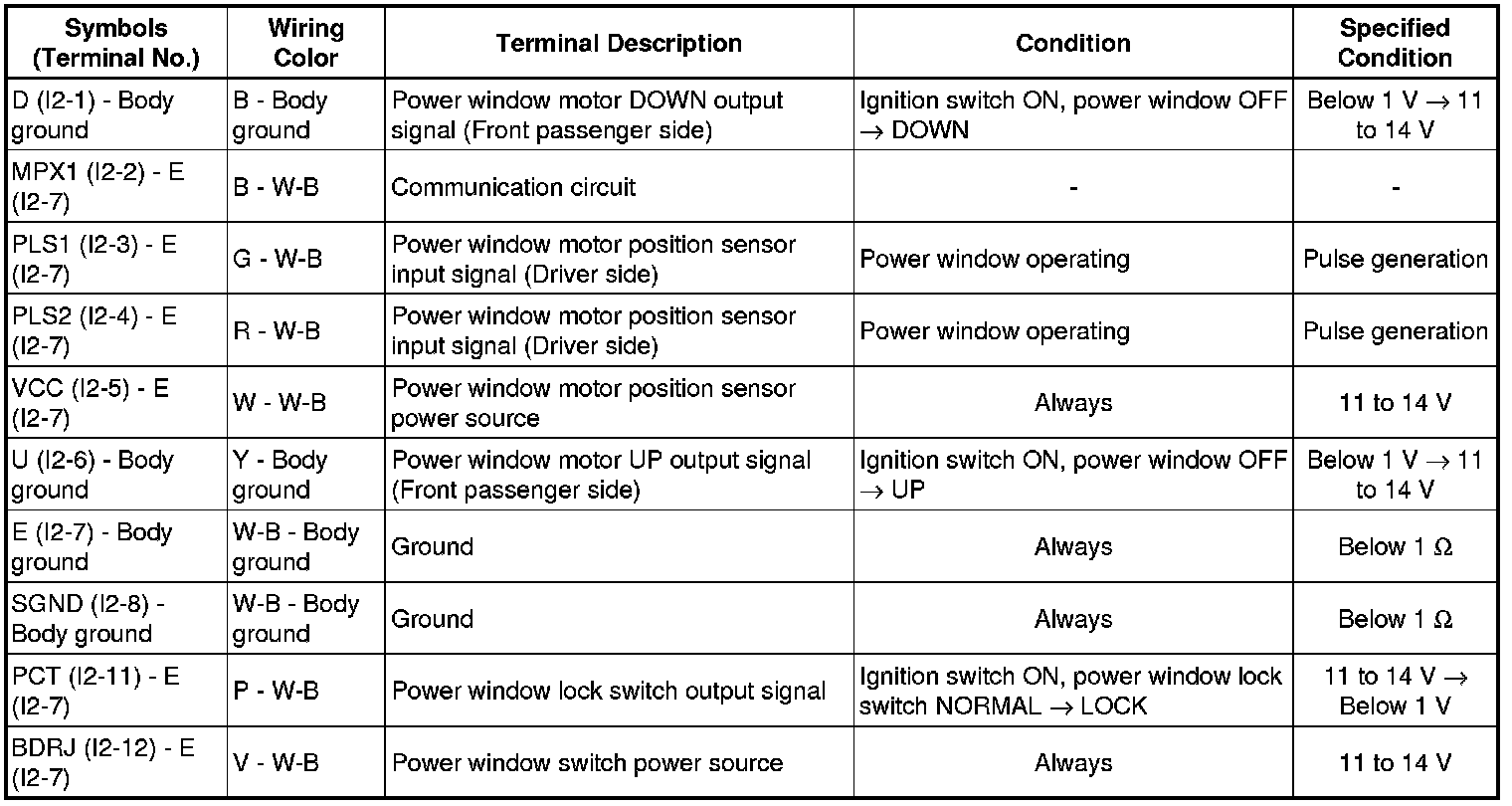

1. MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY









2. MULTIPLEX NETWORK SWITCH ASSEMBLY (for FRONT PASSENGER SIDE)









3. MULTIPLEX NETWORK SWITCH ASSEMBLY (for REAR LH SIDE)









4. MULTIPLEX NETWORK SWITCH ASSEMBLY (for REAR RH SIDE)
