Operation Check

WINDSHIELD / WINDOW GLASS: POWER WINDOW CONTROL SYSTEM: OPERATION CHECK

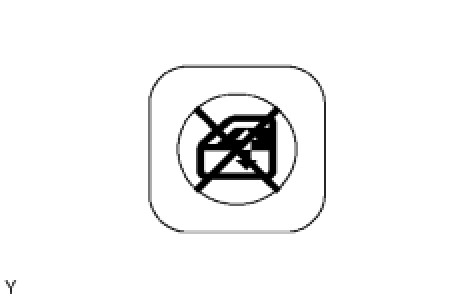

1. CHECK WINDOW LOCK SWITCH





HINT
Before performing the window lock switch operation check, make sure that the window lock switch is off (the switch is not pushed in).

(a) Check that the passenger and rear windows cannot be operated from each multiplex network switch assembly (passenger side, rear LH side or rear RH side) when the window lock switch of the multiplex network master switch assembly is pushed in.

OK:

Passenger and rear windows are disabled.

HINT
Even when the window lock switch of the multiplex network master switch assembly is pushed in, remote manual up and down and auto up and down functions can be operated.

(b) Check that the passenger and rear windows can be operated from each multiplex network switch assembly (passenger side, rear LH side or rear RH side) when the window lock switch of the multiplex network master switch assembly is pushed in again to release it.

OK:

Passenger and rear windows operate normally.

2. CHECK MANUAL UP/DOWN FUNCTION

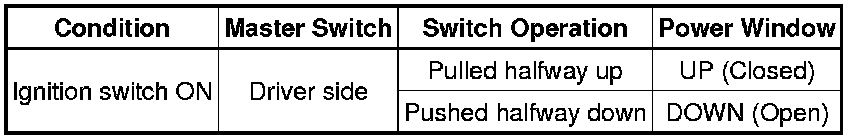

(a) Check that the driver side power window operates as follows:

OK:

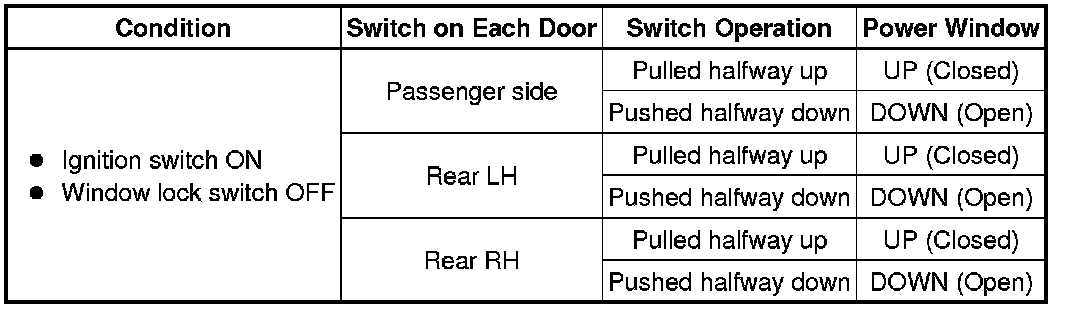

(b) Check that the power windows except the driver side power window operate as follows:

OK:





3. CHECK AUTO UP/DOWN FUNCTION

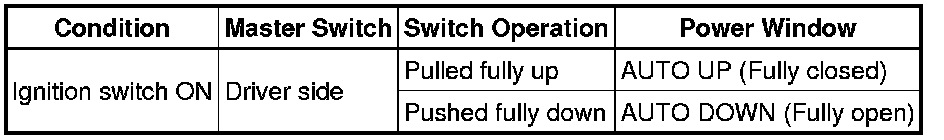

(a) Check that the driver side power window operates as follows:

OK:

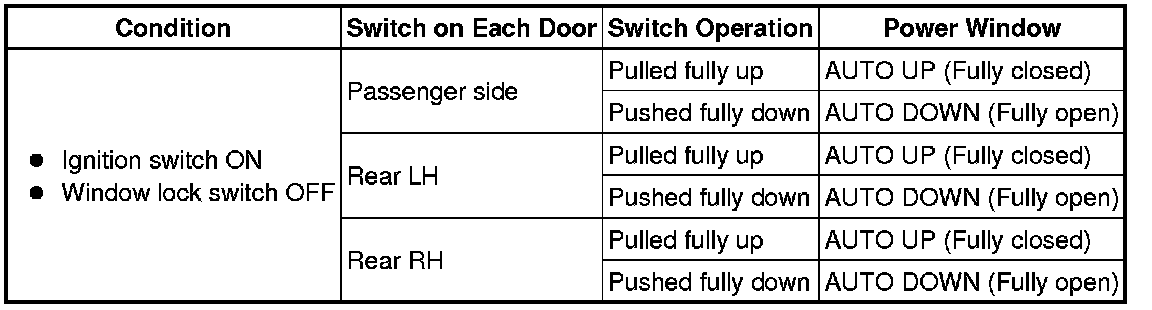

(b) Check that the power windows except the driver side power window operate as follows:

OK:

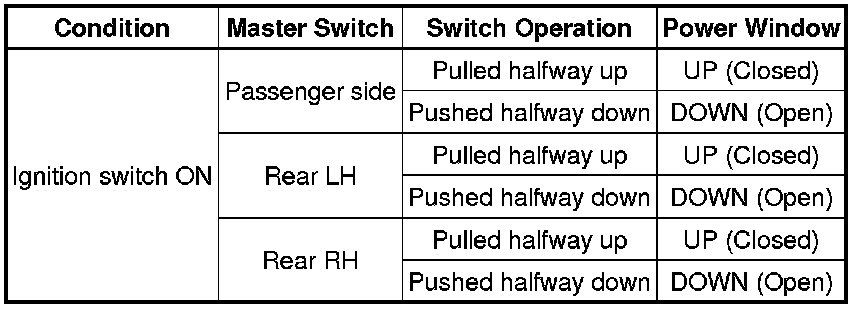

4. CHECK REMOTE MANUAL UP/DOWN FUNCTION

(a) Check that the power windows except the driver side power window operate as follows:

OK:





5. CHECK REMOTE AUTO UP/DOWN FUNCTION

(a) Check that the power windows except the driver side power window operate as follows:

OK:





6. CHECK JAM PROTECTION FUNCTION

HINT
The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.

NOTICE:
If the power window motor has been reset, raise and lower the door glass several times using MANUAL function before performing the check.

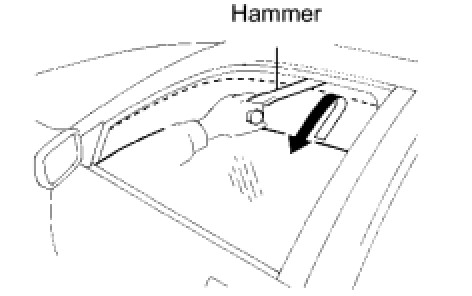

(a) Check that the door glass goes down by approximately. 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to go down and does not stop until an opening of 200 mm (7.87 in.) is achieved.





Operative conditions:

* AUTO UP/MANUAL UP function
