Rear Power Window Motor LH Circuit

WINDSHIELD / WINDOW GLASS: POWER WINDOW CONTROL SYSTEM: Rear Power Window Motor LH Circuit
- Rear Power Window Motor LH Circuit

DESCRIPTION

This circuit transmits signal from the multiplex network switch assembly (rear LH side) to the power window regulator motor assembly (rear LH side).

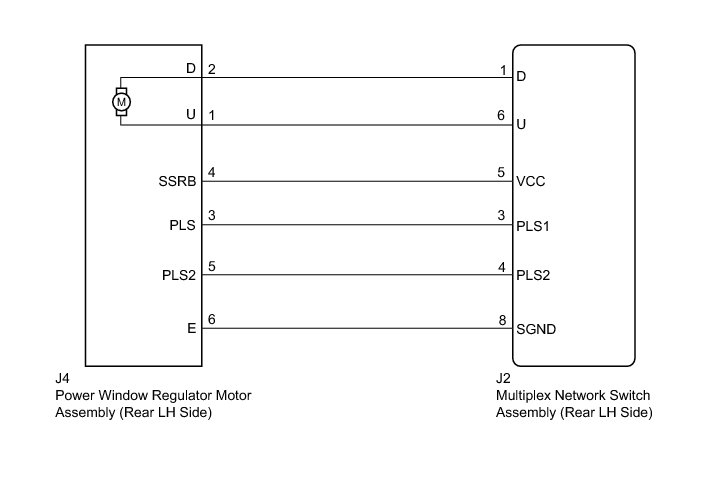

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

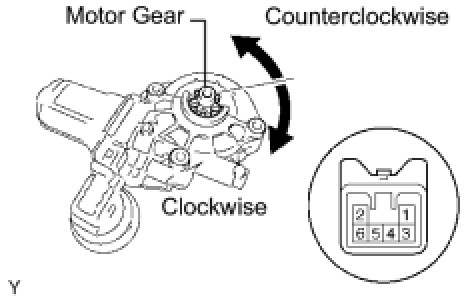

1. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)

(a) Remove the power window regulator motor.

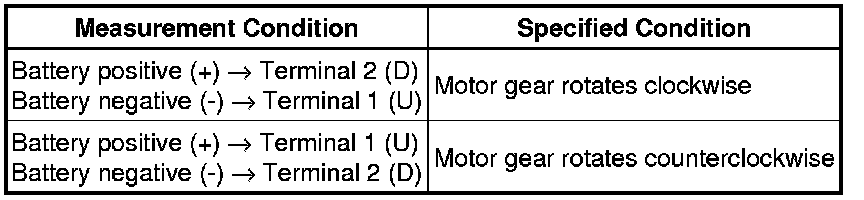

(b) Apply battery voltage to the motor connector according to the table below.

NOTICE:
Do not apply battery to any terminals except terminals 1 and 2.

Standard:





NG -- REPLACE POWER WINDOW REGULATOR MOTOR (REAR LH)
OK -- Continue to next step.

2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - POWER WINDOW REGULATOR SWITCH)

(a) Disconnect the J2 and J4 connectors.

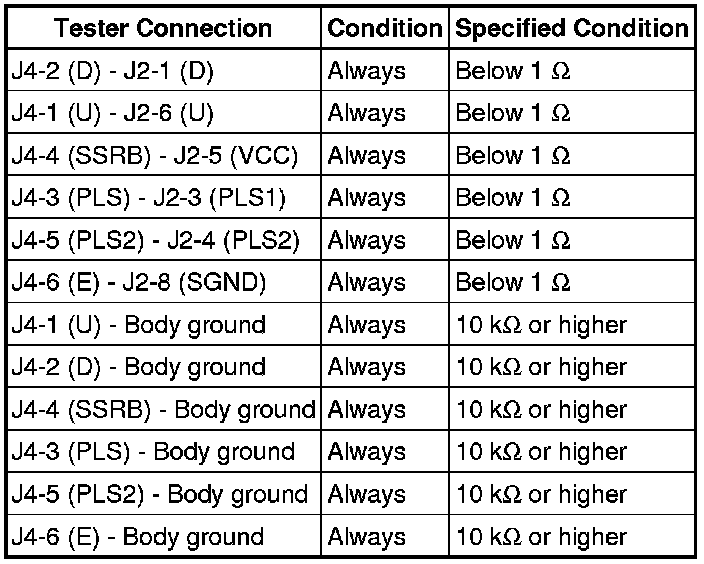

(b) Measure the resistance of the wire harness side connectors.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
