Heated Glass Element Relay: Testing and Inspection

WINDSHIELD / WINDOW GLASS: DEFOGGER RELAY: ON-VEHICLE INSPECTION

1. INSPECT DEFOGGER RELAY (Marking: RR DEF)

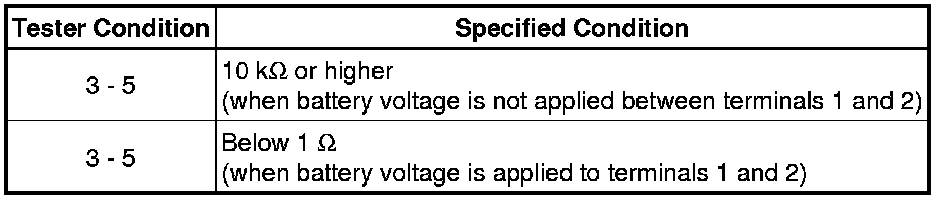

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the result is not as specified, replace the relay.
