Removal (to 12/2010)

U660E AUTOMATIC TRANSAXLE: TCM: REMOVAL

NOTICE:
When the TCM is replaced, the existing transaxle compensation codes must be input into the new TCM Registration.

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal (to 12/2010)

2. REMOVE BATTERY

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE NO. 2 AIR CLEANER INLET Removal (to 12/2010)

4. REMOVE NO. 1 AIR CLEANER INLET Removal (to 12/2010)

5. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY Removal (to 12/2010)

6. REMOVE TCM

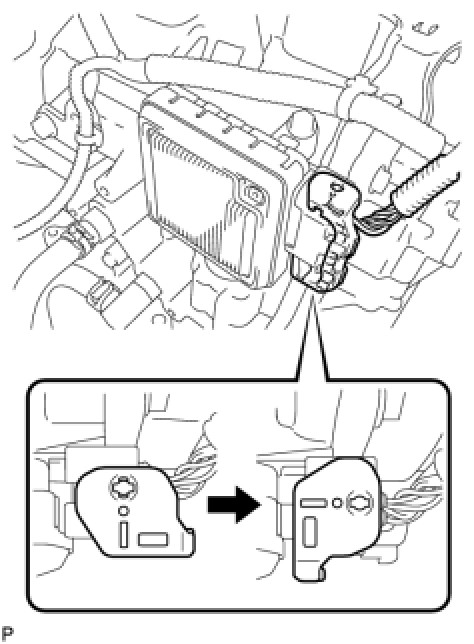

(a) Turn the lock lever and disconnect the connector from the TCM.

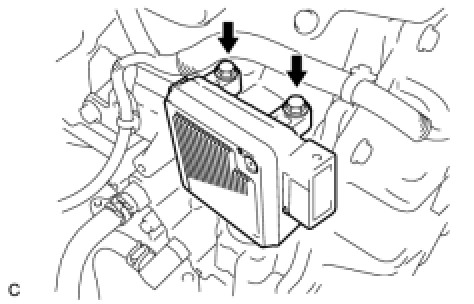

(b) Remove the 2 bolts and TCM from the transaxle.
