Inspection

U660E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSPECTION

1. INSPECT TRANSMISSION CONTROL SWITCH (w/o Smart Key System)

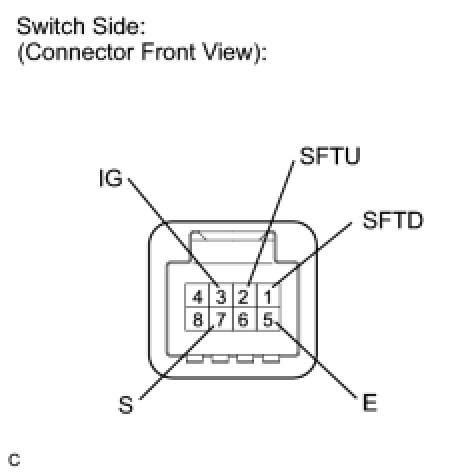

(a) Measure the resistance between each terminal of the transmission floor shift assembly when the shift lever is moved to each position.

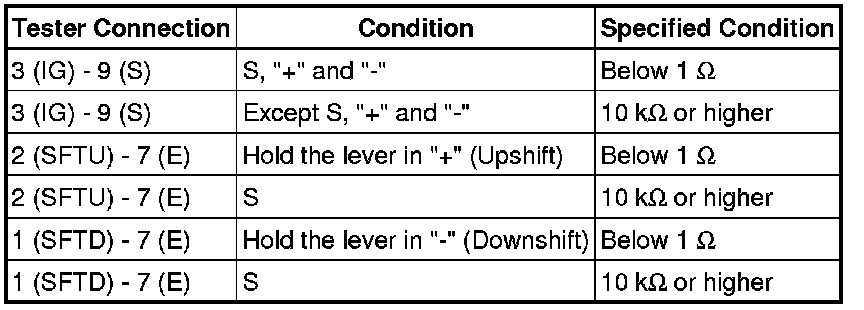

Standard resistance:





If the resistance value is not as specified, replace the transmission floor shift assembly.

2. INSPECT TRANSMISSION CONTROL SWITCH (w/ Smart Key System)

(a) Measure the resistance between each terminal of the transmission floor shift assembly when the shift lever is moved to each position.





Standard resistance:





If the resistance value is not as specified, replace the transmission floor shift assembly.
