Repair Instruction - Customize Parameters
INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS
HINT
The following can be customized.
NOTICE:
* After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
* Be sure to record the current value before customizing.
* In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function" is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)
1. AIR CONDITIONING SYSTEM

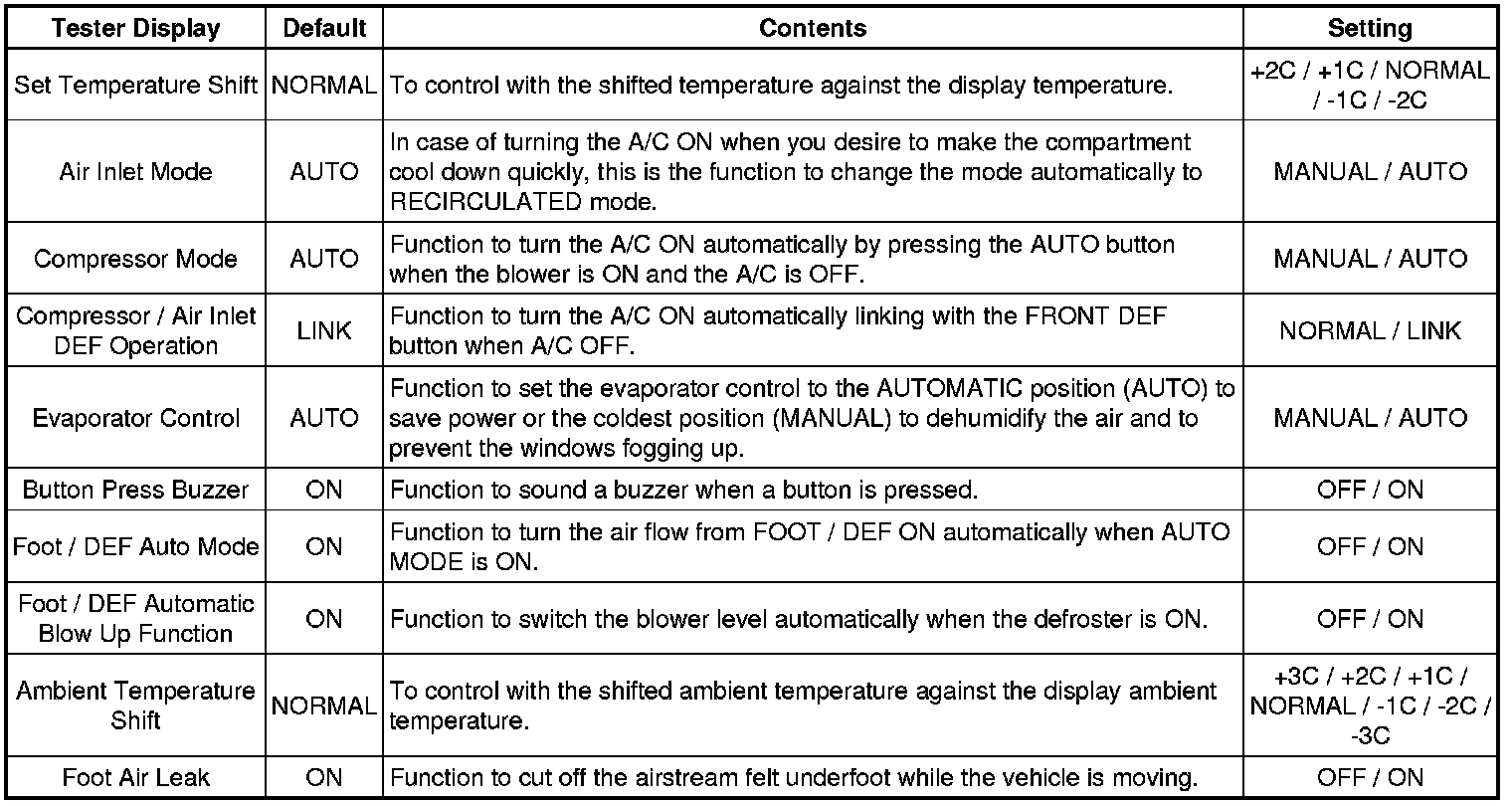

Air Conditioner
2. THEFT DETERRENT SYSTEM
Security
3. LIGHTING SYSTEM
Illuminated Entry
Light Control
HINT
Sensitivity adjustment is dependent on the owner's preference. Actual driving by the owner is required.

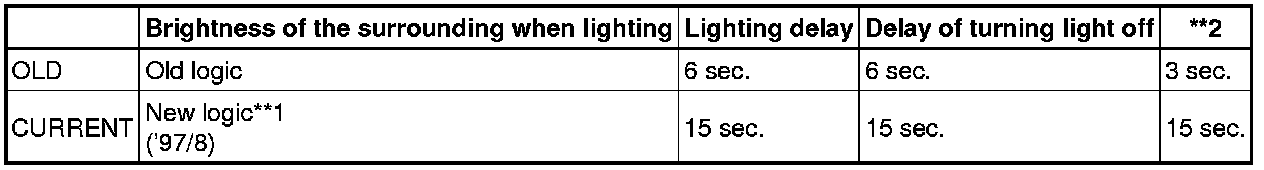

Table 1
**1: The new system has the ability to light up two times brighter than the old system.
**2: Delay time until the headlight is turned on when the outside suddenly gets dark.
Wiper:
4. WIPER AND WASHER SYSTEM

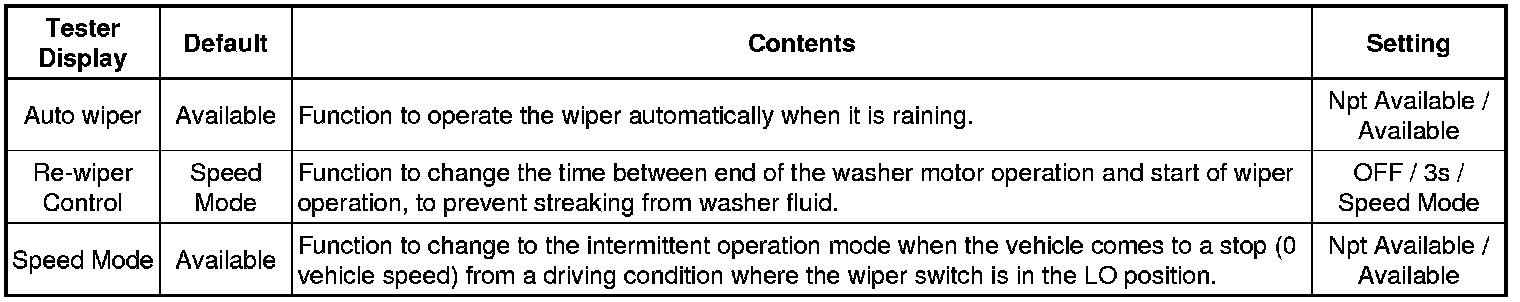

Wiper
5. POWER DOOR LOCK CONTROL SYSTEM

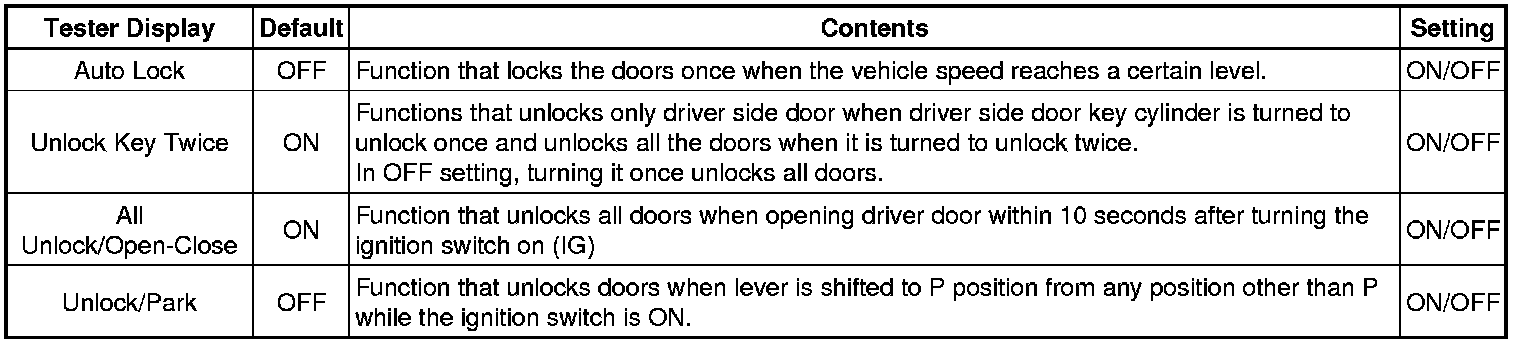

(a) MAIN BODY ECU (Using Techstream):
Door Lock
(b) MANUAL SETTING (Switch operation)
(1) Close all the doors.
(2) Turn the ignition switch on (IG).
(3) Within ten seconds after the ignition switch on (IG).
* To set function (Shift-linked Automatic Door Lock)
Push and hold the LOCK side of the power door lock switch for five seconds with the shift lever in the P.
* To set function (Speed-sensitive Automatic Door Lock)
Push and hold the LOCK side of the power door lock switch for five seconds with the shift lever in any position except P.
* To set function (Shift-linked Automatic Door Unlock)
Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in the P.
* To set function (Opening Driver's Door-linked Automatic Door Unlock)
Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in any position except P.
If user wants to cancel a function, repeat the procedure. Each time user perform the procedure, the function is set or cancelled.
6. WIRELESS DOOR LOCK CONTROL SYSTEM
Main Body ECU:
(*1): This function cannot be turned on or off if the security system is turned off.
7. SMART KEY SYSTEM

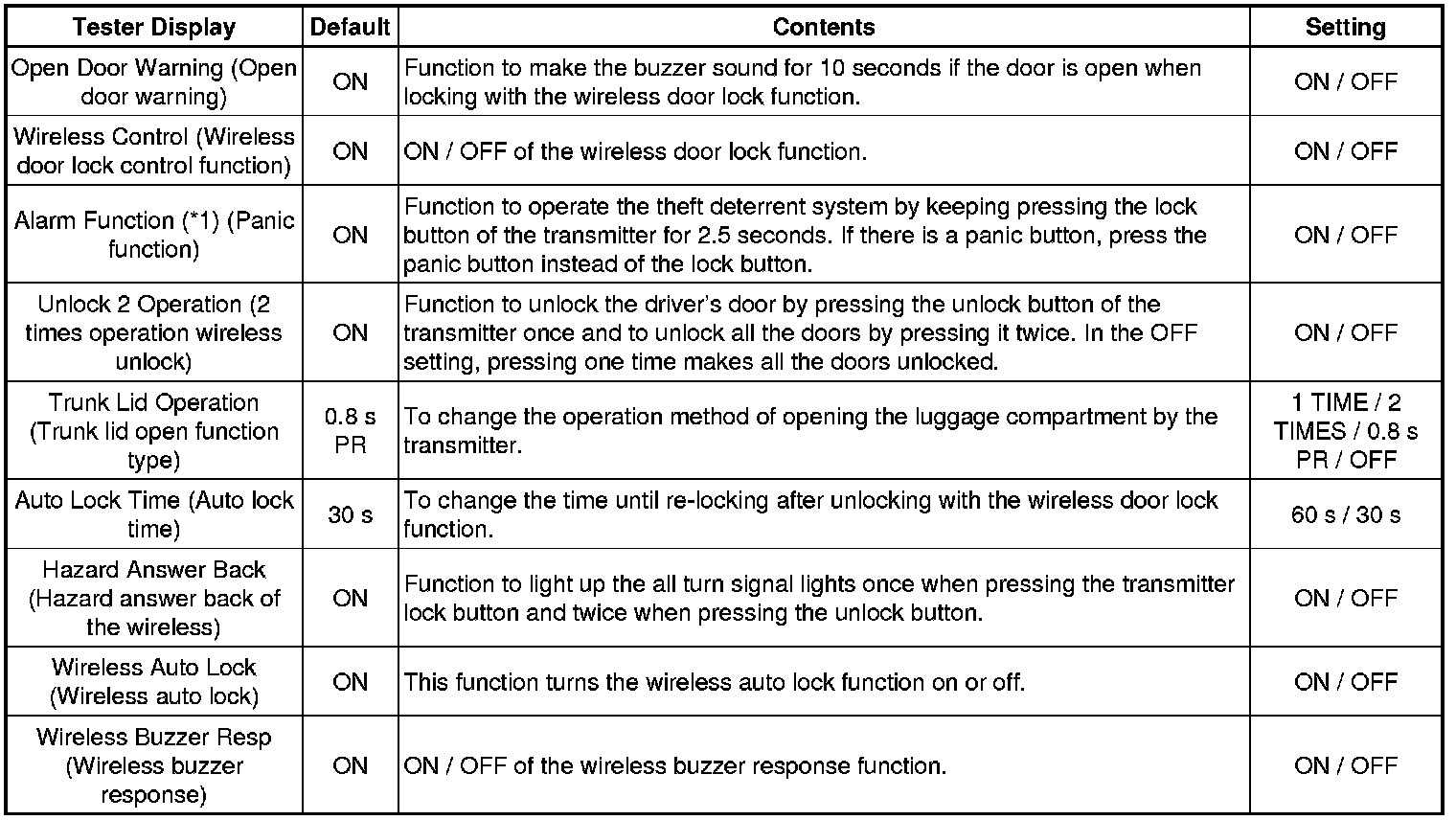

(a) Using Techstream.
Wireless Door Lock
*1: w/ Theft deterrent system
Warning (Combination Meter)

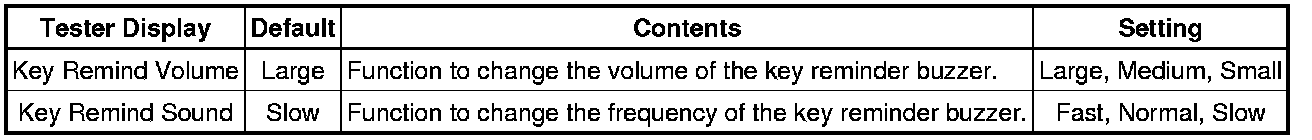

Smart
(b) Entry Unlock Mode Switching
(1) Check that the power source mode is OFF and the LED on the key does not blink. Press the LOCK button and one of the other buttons on the key at the same time for approximately 5 seconds while the key is in the actuation area.
(2) Certification ECU receives this signal from the tuner and switches the entry unlock mode.
(3) The certification ECU sounds the buzzer of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.
HINT
* The function only switches the entry unlock of the smart key system. It does not switch the unlocking of the wireless door lock remote control.
* The entry unlock mode cannot be changed for 5 seconds after the previous change.
(c) Key Cancel
Key cancel is operated when certain operations are performed with the vehicle in the following conditions.
* A function that allows you to lock / unlock the doors and open the luggage compartment by simply carrying a key.
* A function that causes the vehicle to beep if keys are left inside the vehicle or luggage compartment and a door is closed.
* A function that recalls the position of the driver's seat and side rear view mirrors.
(1) The operation procedures are as follows:
1 Unlock the driver side door once with the UNLOCK button of the key.
2 Open the driver door within 5 seconds.
3 Unlock the driver side door twice with the UNLOCK button of the key within 5 seconds.
4 Close and open the driver door twice within 30 seconds.
(Driver Door: Close -> Open -> Close -> Open)
5 Unlock the driver side door twice with the UNLOCK button of the key within 5 seconds.
6 Close and open the driver door within 30 seconds.
(Driver Door: Close -> Open)
7 Close the driver door within 5 seconds.
* When key cancel is activated, the wireless door lock buzzer sounds once.
* To return to the original condition, perform the procedures again. When key cancel is returned, the wireless door lock buzzer sounds twice.
8. METER / GAUGE SYSTEM
(a) BUZZER ON/OFF SETTING
(1) The buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver's seat belt buzzer and front passenger's seat belt buzzer.
NOTICE:
Basically, these buzzers should be set on for safe driving. However, perform the following procedures only if it is necessary to set the buzzer off.

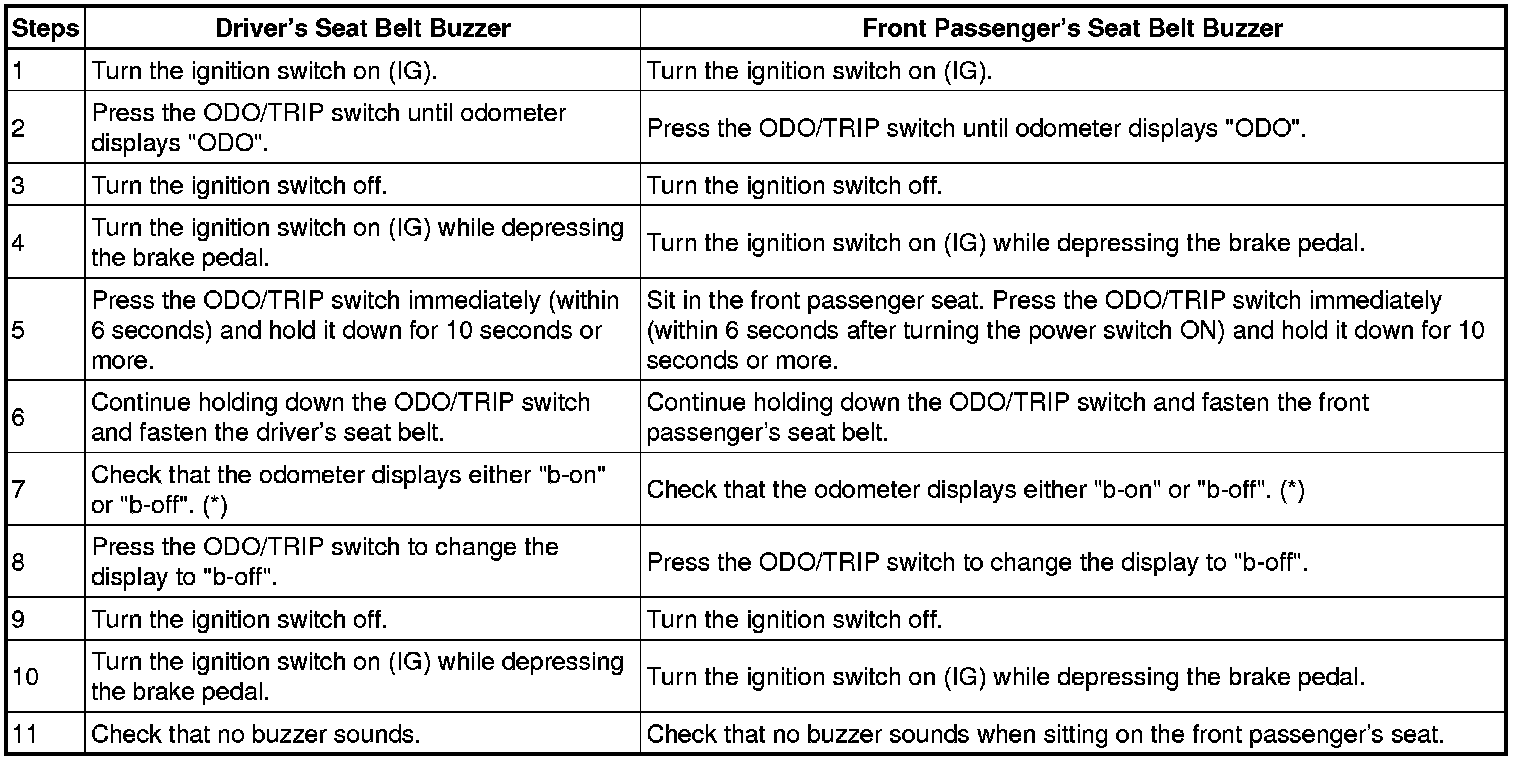

PROCEDURE
*:"b-off" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that buzzer ON/OFF setting is complete. If it is not complete, start from step 1 again.
NOTICE:
When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.
(b) CUSTOMIZE PARAMETER (Using Techstream)
Combination Meter
9. REAR SUNSHADE SYSTEM

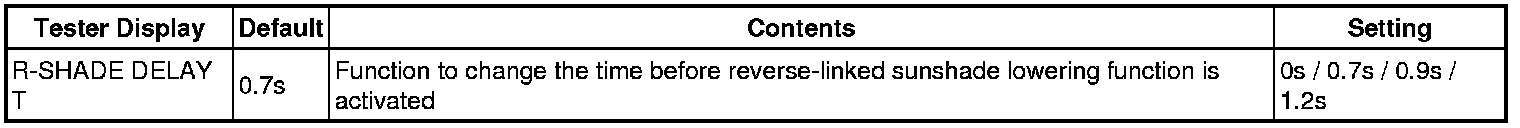

Others
