DTC Check / Clear (to 12/2010)

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DTC CHECK / CLEAR

1. DTC CHECK (Using SST Check Wire)

(a) Check DTCs.





(1) Make sure that the ignition switch is off.

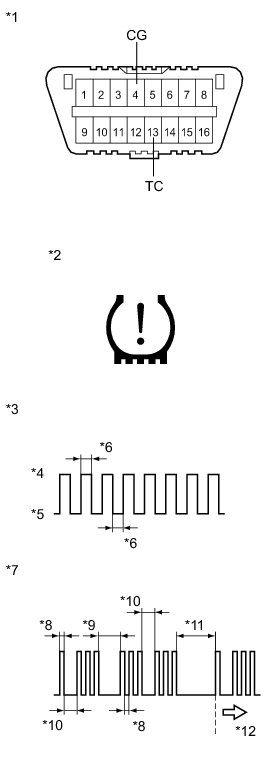

(2) Using SST, connect terminals TC and CG of DLC3.

SST : 09843-18040

(3) Turn the ignition switch on (IG).

(4) Read and record any DTCs from the tire pressure warning light on the combination meter. Refer to the illustration as examples of a normal system code and codes 13 and 33.

HINT

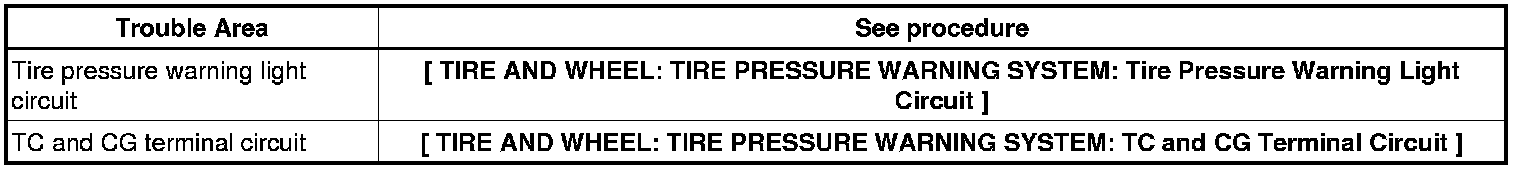

* If the tire pressure warning light does not indicate any DTCs or the normal system code, inspect the tire pressure warning light circuit or TC and CG terminal circuit.






* If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.

(5) Refer to the DIAGNOSTIC TROUBLE CODE CHART Diagnostic Trouble Code Chart (to 12/2010) for DTC information.

(6) After completing the check, turn the ignition switch off and remove SST from DLC3.

SST : 09843-18040

Text in Illustration





2. DTC CHECK (Using Techstream)

(a) Check DTCs.

(1) Make sure that the ignition switch is off.

(2) Connect the Techstream to the DLC3.

(3) Turn the ignition switch on (IG).

(4) Turn the Techstream on.

(5) Read the DTCs following the prompts on the tester screen. Enter the following menus: Chassis / Tire Pressure Monitor / Trouble Codes.

(6) Check the details of the DTCs Diagnostic Trouble Code Chart (to 12/2010).

(b) Clear the DTCs.

HINT
After repairing the malfunctions, clear the DTCs.

(1) Make sure that the ignition switch is off.

(2) Connect the Techstream to the DLC3.

(3) Turn the ignition switch on (IG).

(4) Turn the Techstream on.

(5) Clear the DTCs following the prompts on the tester screen. Enter the following menus: Chassis / Tire Pressure Monitor / Trouble Codes.

(6) According to the displayed on the Techstream, select the trouble code data display with the clear button.
