Problem Symptoms Table (from 12/2010)
2GR-FE STARTING: SMART KEY SYSTEM: PROBLEM SYMPTOMS TABLE
HINT

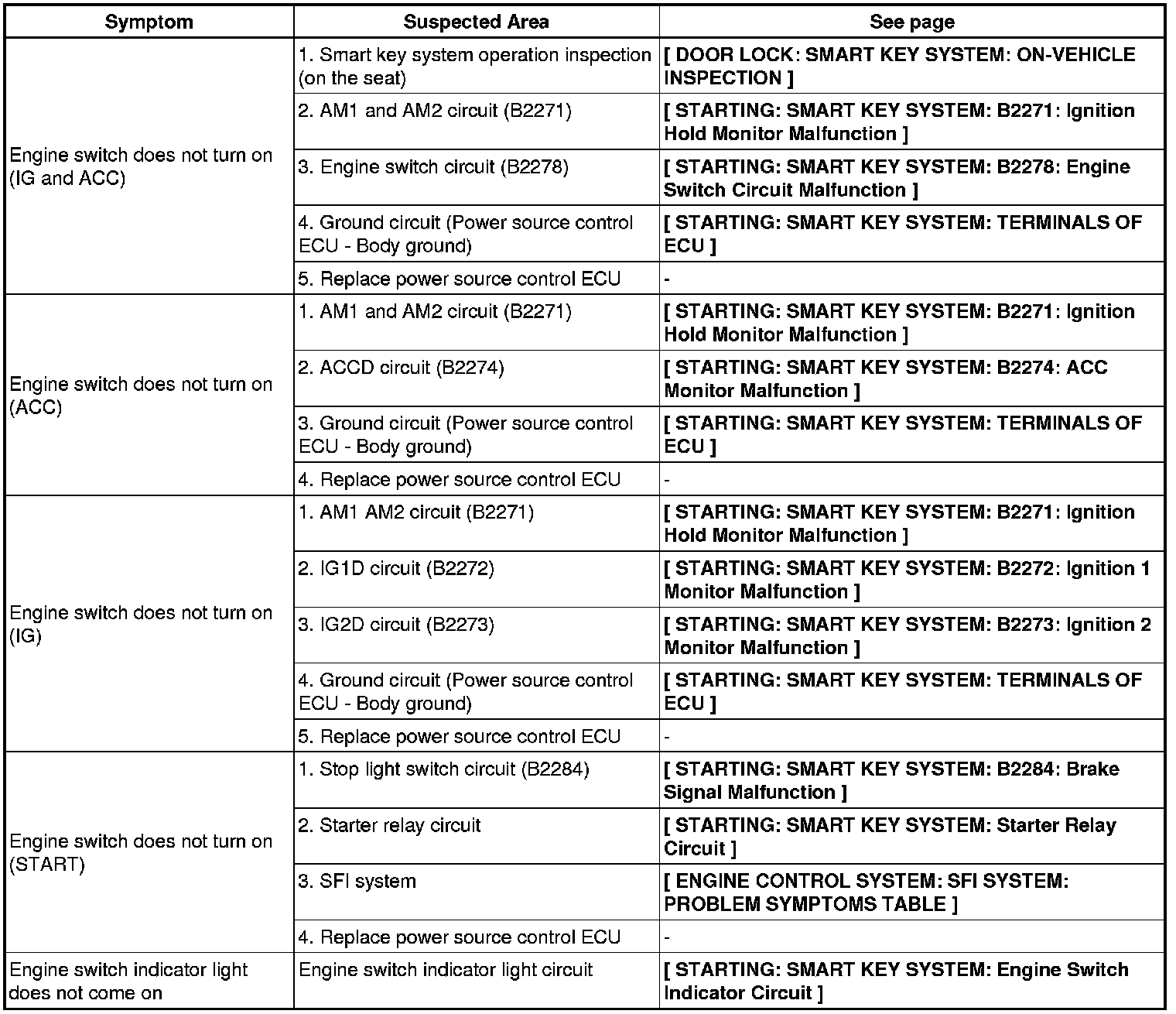

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting page.
SMART KEY SYSTEM
