Removal (to 12/2010)

U660E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal (to 12/2010)

3. REMOVE NO. 2 AIR CLEANER INLET Removal (to 12/2010)

4. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Removal (to 12/2010)

5. REMOVE AIR CLEANER CASE Removal (to 12/2010)

6. REMOVE NO. 1 AIR CLEANER INLET Removal (to 12/2010)

7. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Remove the clip from the transmission cable bracket.





(b) Remove the nut, washer and control shaft lever with transmission control cable assembly from the control shaft.





8. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Disconnect the connector from the park/neutral position switch.

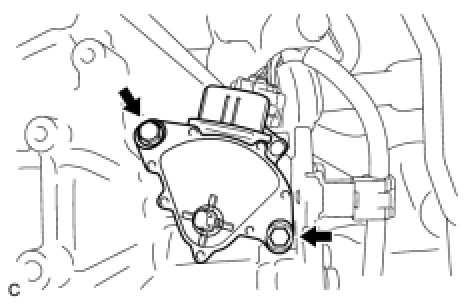

(b) Remove the 2 bolts and park/neutral position switch from the control shaft.





NOTICE:
Before removing the park/neutral position switch, remove any dirt or rust on the installation portion of the control shaft. Be sure to remove the switch straight along the shaft while being careful not to deform the plate spring that supports the shaft. If the plate spring is deformed, the park/neutral position switch cannot be reinstalled correctly.
