Electrical Diagrams

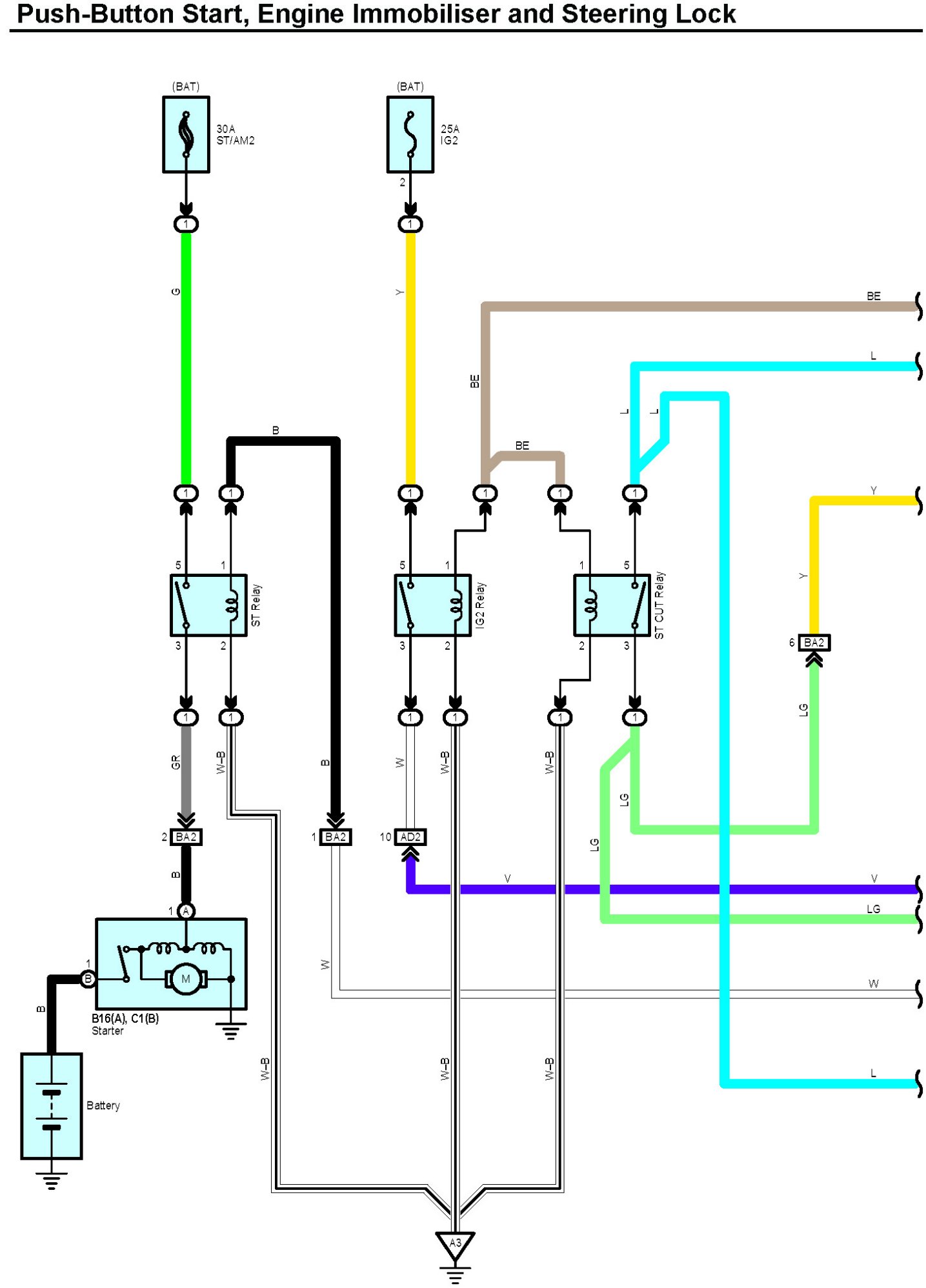

Push-Button Start, Engine Immobiliser and Steering Lock Part 1:

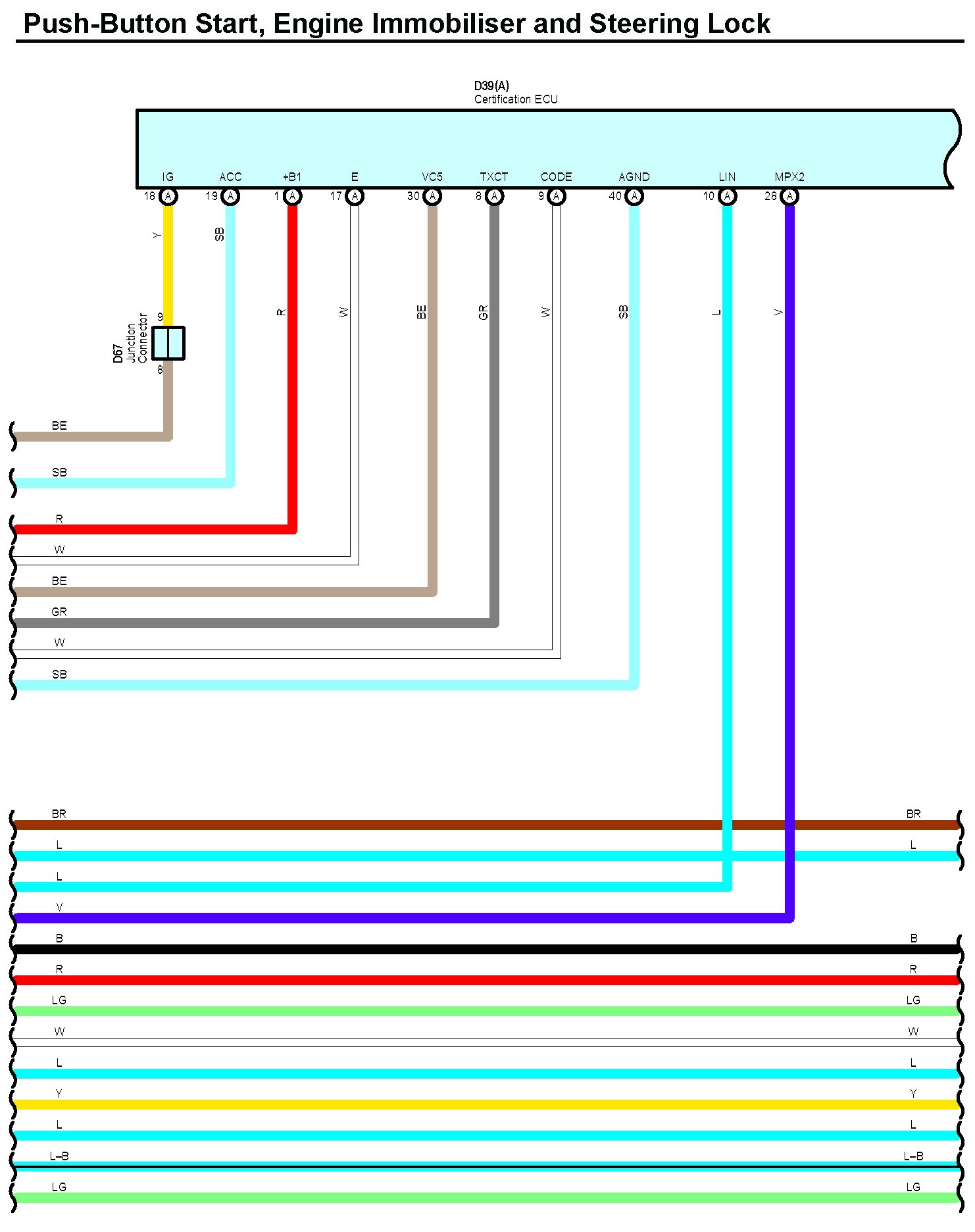

Push-Button Start, Engine Immobiliser and Steering Lock Part 2:

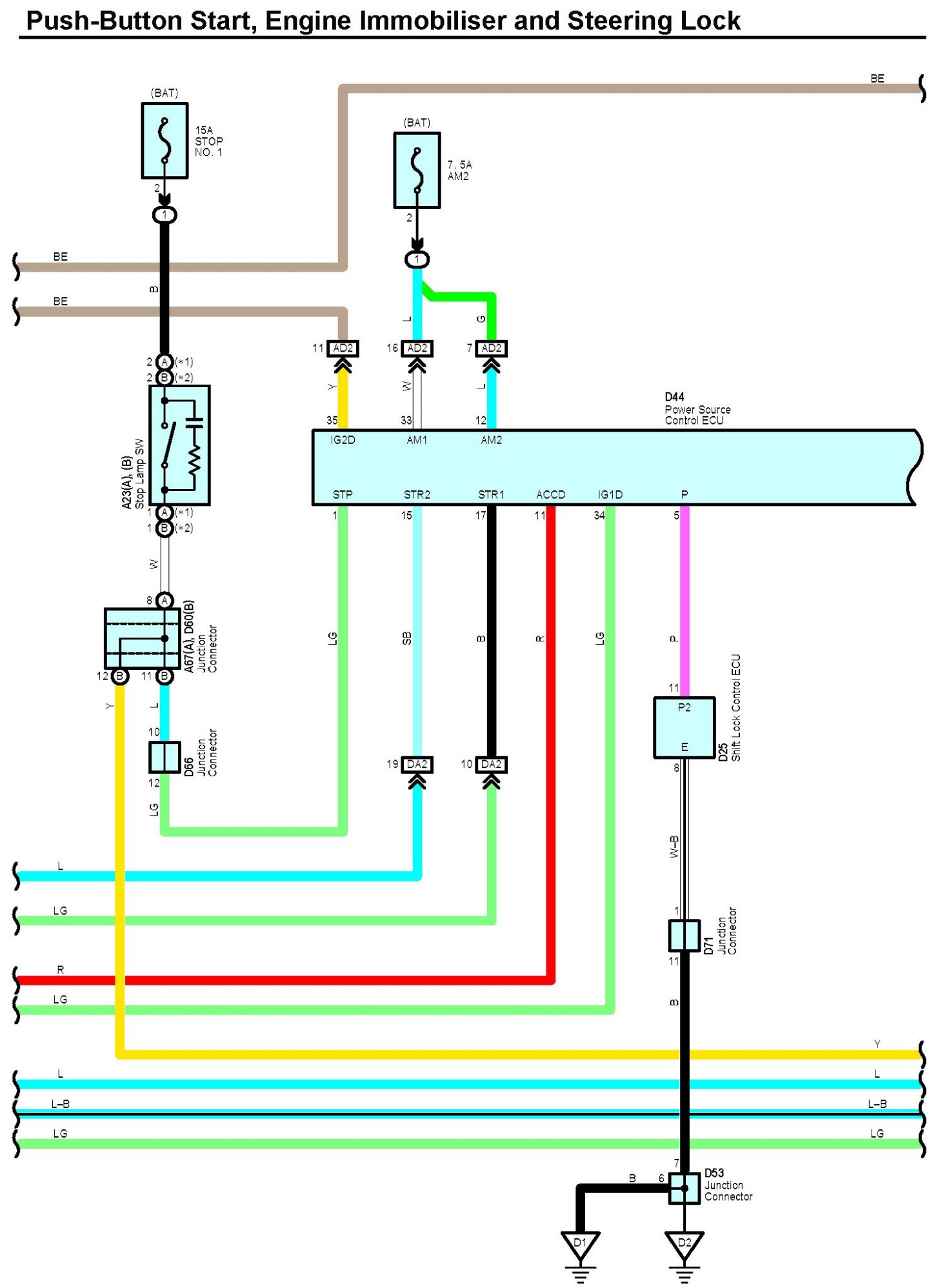

Push-Button Start, Engine Immobiliser and Steering Lock Part 3:

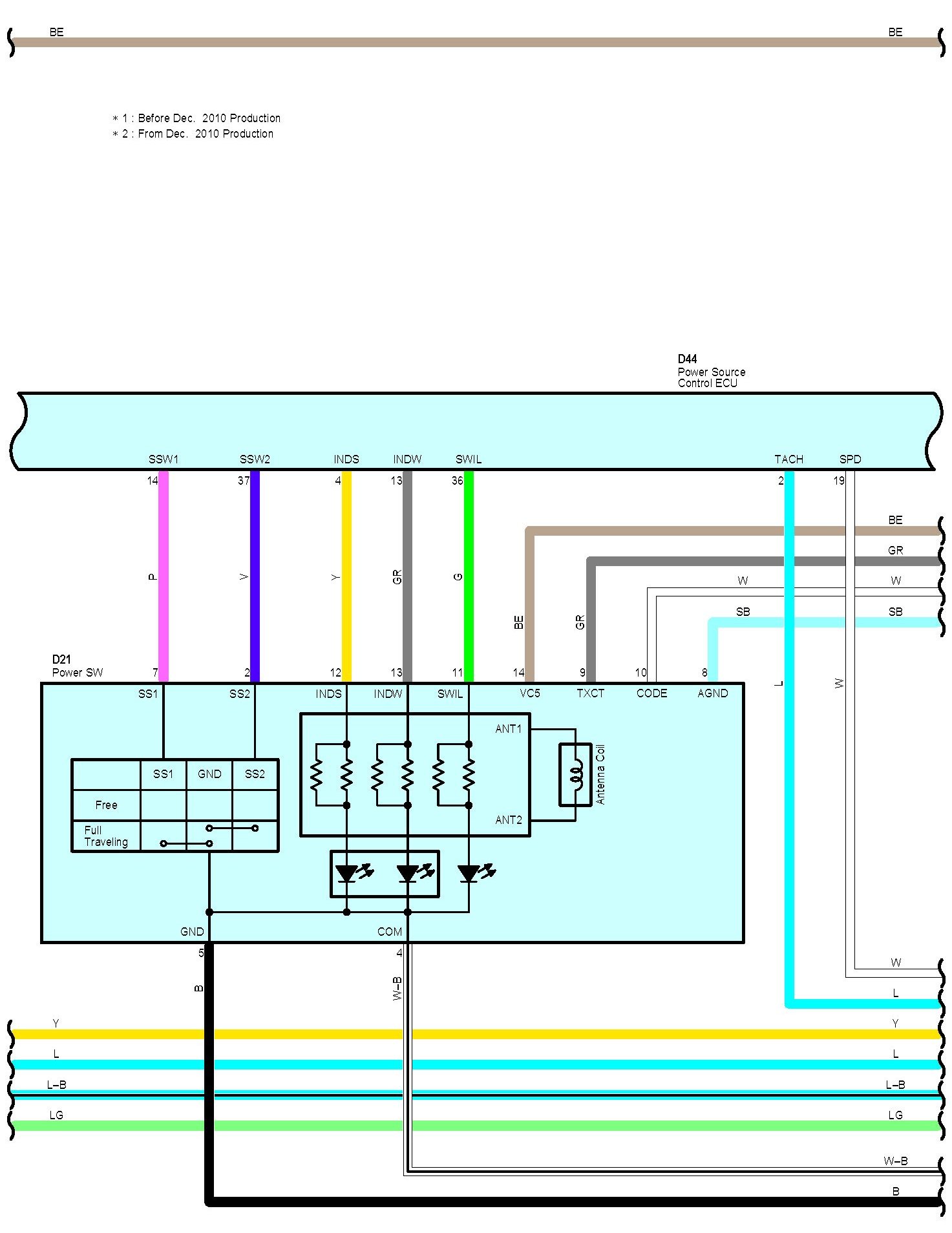

Push-Button Start, Engine Immobiliser and Steering Lock Part 4:

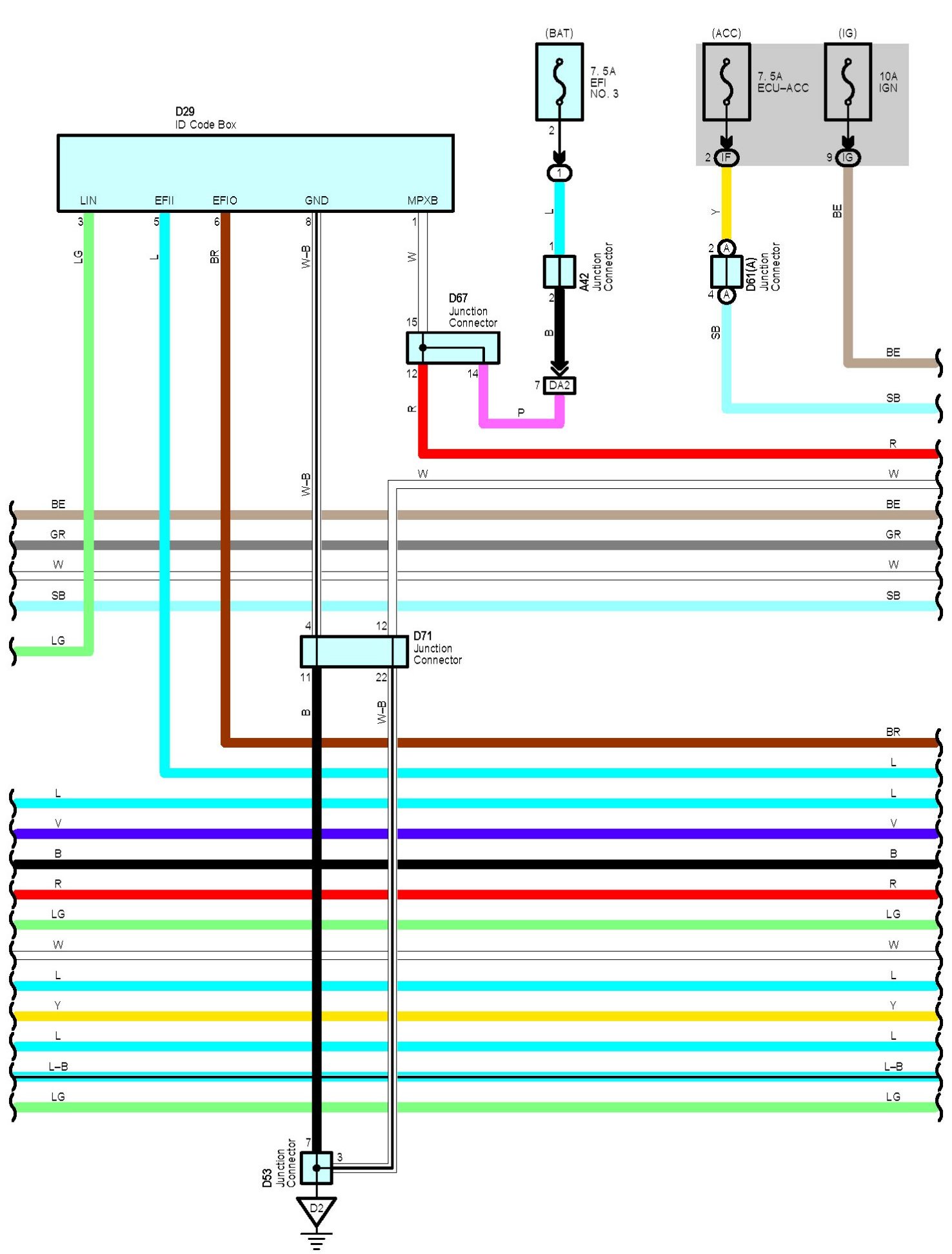

Push-Button Start, Engine Immobiliser and Steering Lock Part 5:

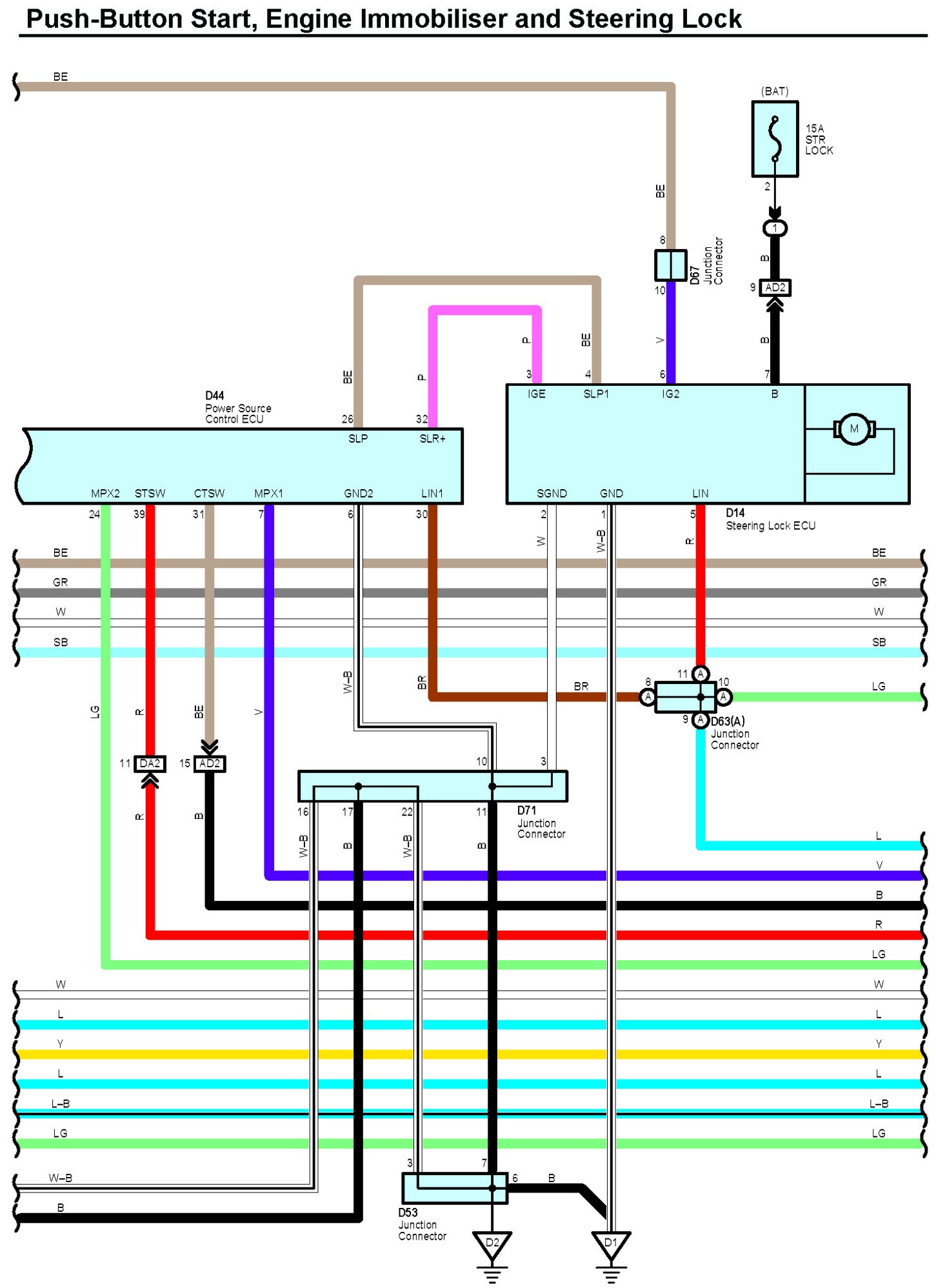

Push-Button Start, Engine Immobiliser and Steering Lock Part 6:

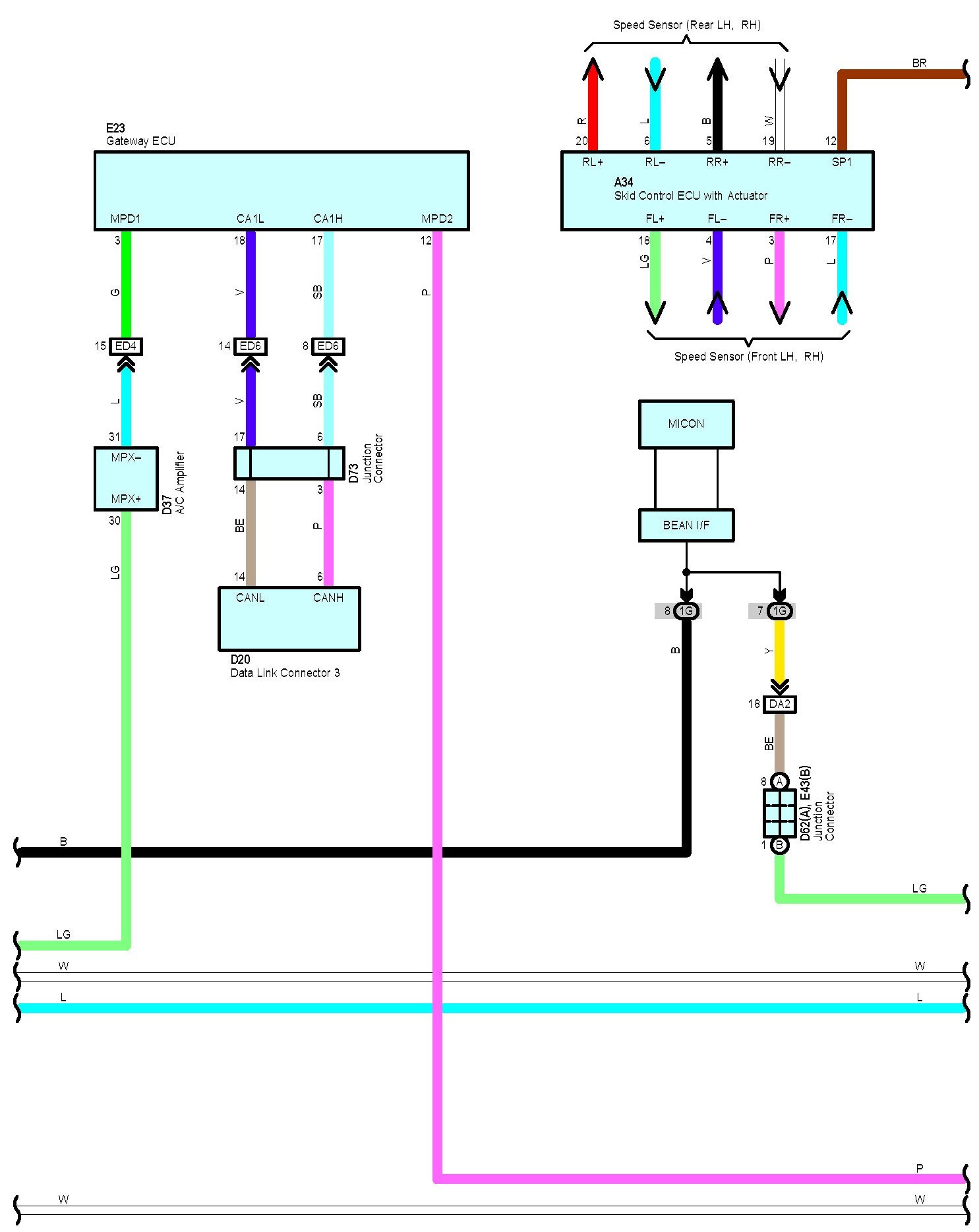

Push-Button Start, Engine Immobiliser and Steering Lock Part 7:

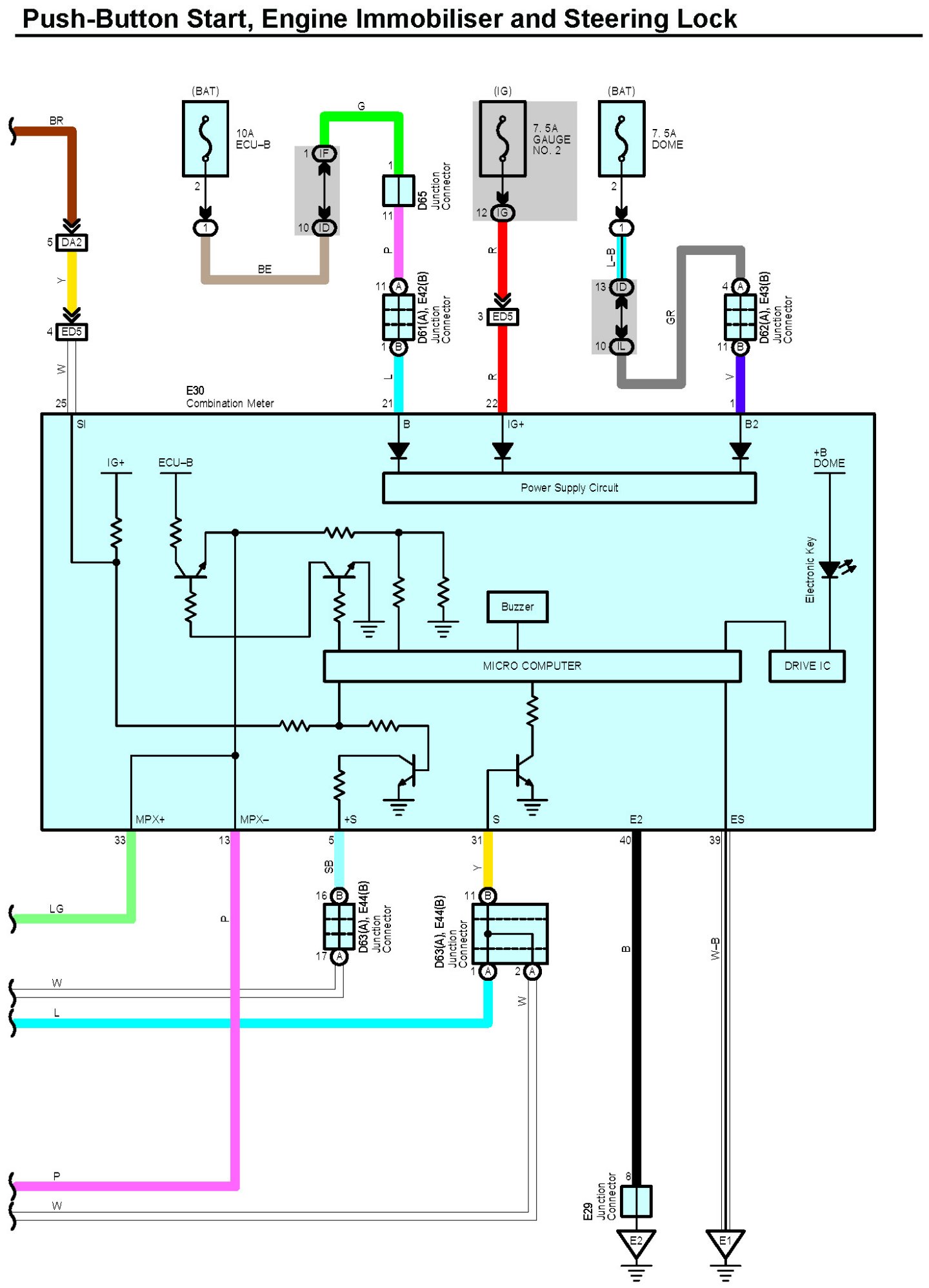

Push-Button Start, Engine Immobiliser and Steering Lock Part 8:

Push-Button Start, Engine Immobiliser and Steering Lock Part 9:

Push-Button Start, Engine Immobiliser and Steering Lock Part 10:

Push-Button Start, Engine Immobiliser and Steering Lock Part 11:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connectors Views By Connector Number
