Charging System: Service Precautions

2GR-FE CHARGING: CHARGING SYSTEM: PRECAUTION

CAUTION:
* Check that the battery cables are connected to the correct terminals.
* Disconnect the battery cables when the battery is charged quickly.
* Do not perform tests with a high voltage insulation resistance tester.
* Never disconnect the battery while the engine is running.
* Check that the charging cable is connected to terminal B of the generator and the fuse box.
* Do not perform inspection of the generator in which terminal F is connected to the other terminal.
1. EXPRESSIONS OF IGNITION SWITCH

(a) The type of ignition switch used on this model differs according to the specifications of the vehicle.

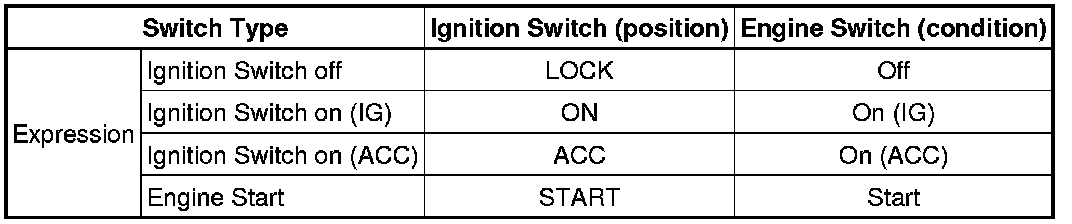

The expressions listed in the table below are used in this section.
