Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING RESET SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE TIRE PRESSURE WARNING RESET SWITCH

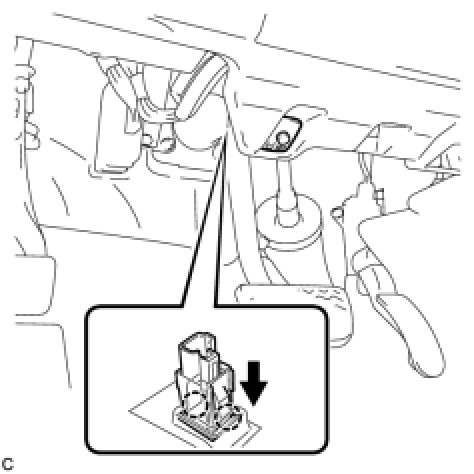

(a) Disengage the 2 claws and remove the tire pressure warning reset switch from the No. 2 instrument panel under cover sub-assembly.
