Front Speed Sensor

BRAKE CONTROL: FRONT SPEED SENSOR: INSPECTION

1. INSPECT FRONT SPEED SENSOR

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

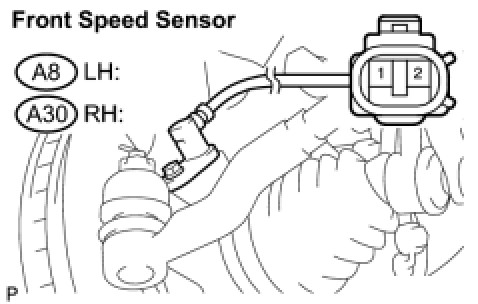

(b) Disconnect the front speed sensor connectors.

(c) Measure the resistance according to the value(s) in the table below.

Resistance:

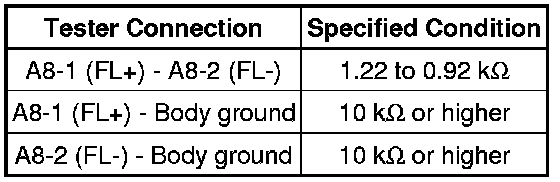

LH

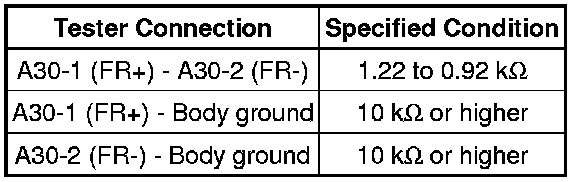

RH
