Meter / Gauge System

METER: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH ASSEMBLY

(a) Disconnect the steering pad switch assembly connector.

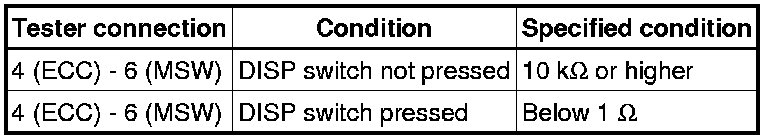

(b) Measure the resistance according to the values in the table below.

Standard Resistance:





If the result is not as specified, replace the steering pad switch assembly.
