Audio / Visual System

AUDIO / VISUAL: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH ASSEMBLY

(a) Disconnect the steering pad switch assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

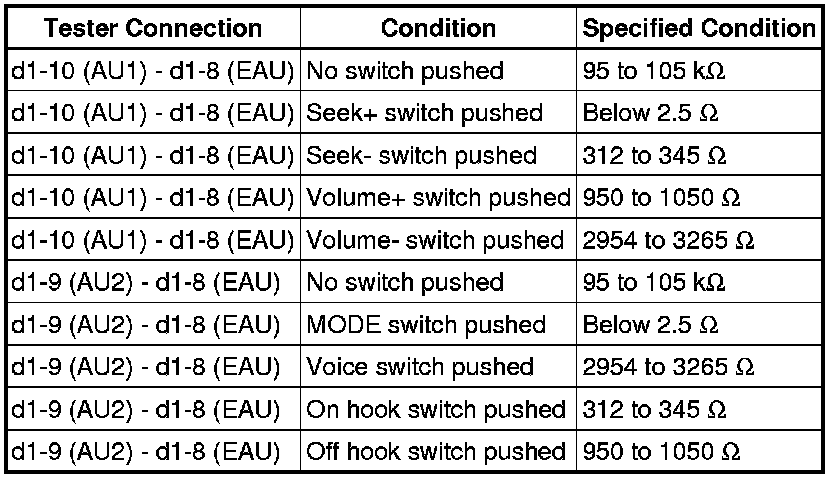

Standard Resistance:

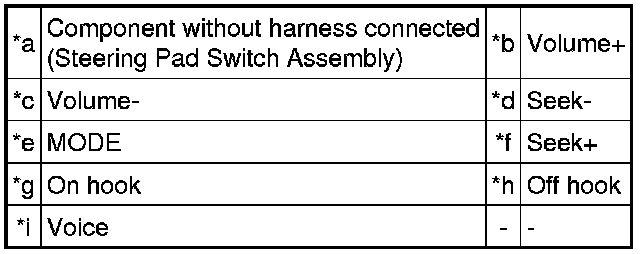

Text in Illustration
