Removal (to 12/2010)

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

1. PRECAUTION

CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Occupant Classification System.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE FRONT RH SEAT ASSEMBLY Removal (to 12/2010)

4. REMOVE OCCUPANT CLASSIFICATION ECU

(a) Disconnect the 2 connectors from the occupant classification ECU.

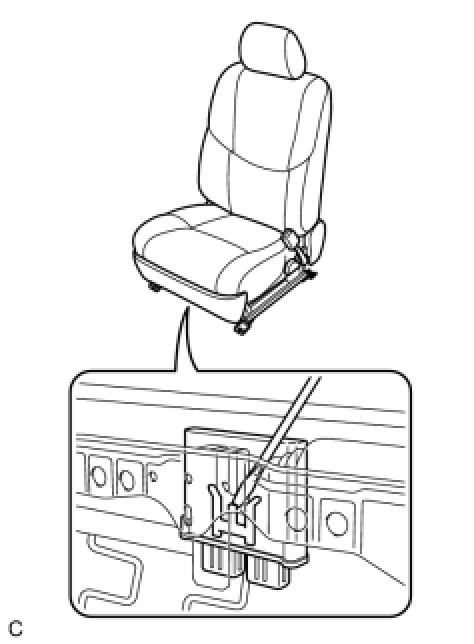

(b) Using a screwdriver, remove the occupant classification ECU.
