Problem Symptoms Table (to 12/2010)





SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PROBLEM SYMPTOMS TABLE

HINT

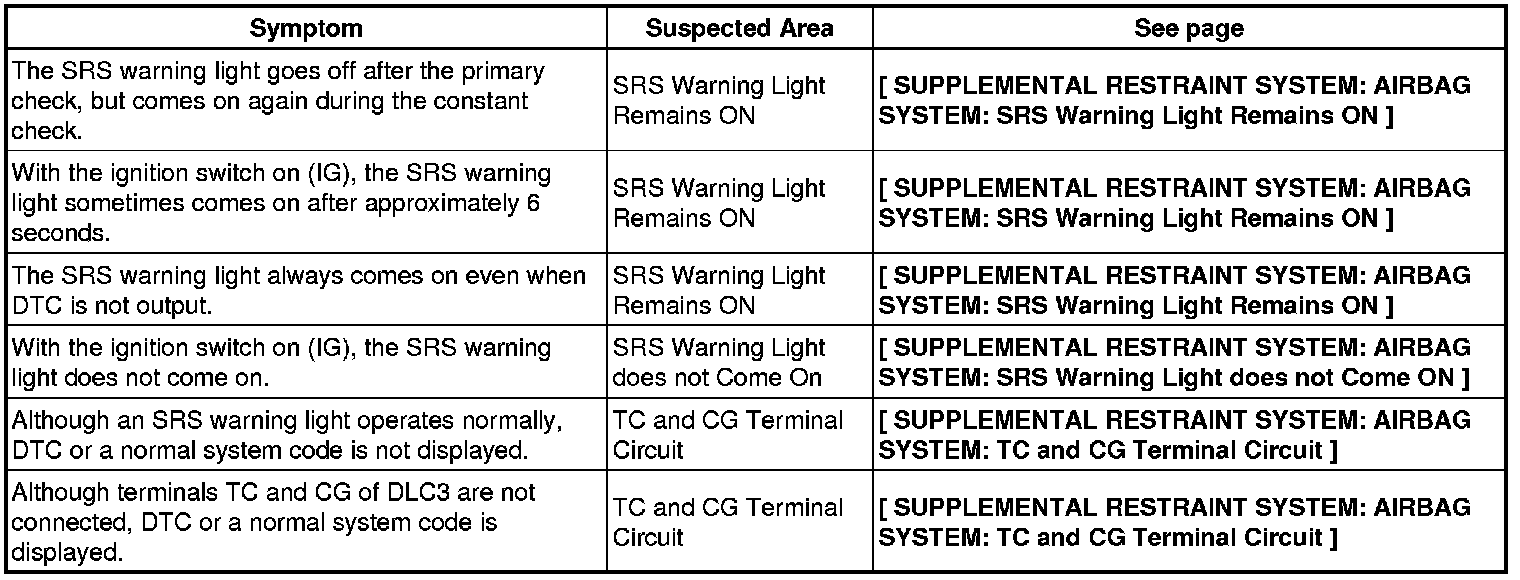

Proceed to the troubleshooting for each circuit in the table below.

AIRBAG SYSTEM:
