Terminals of ECU (from 12/2010)





SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: TERMINALS OF ECU

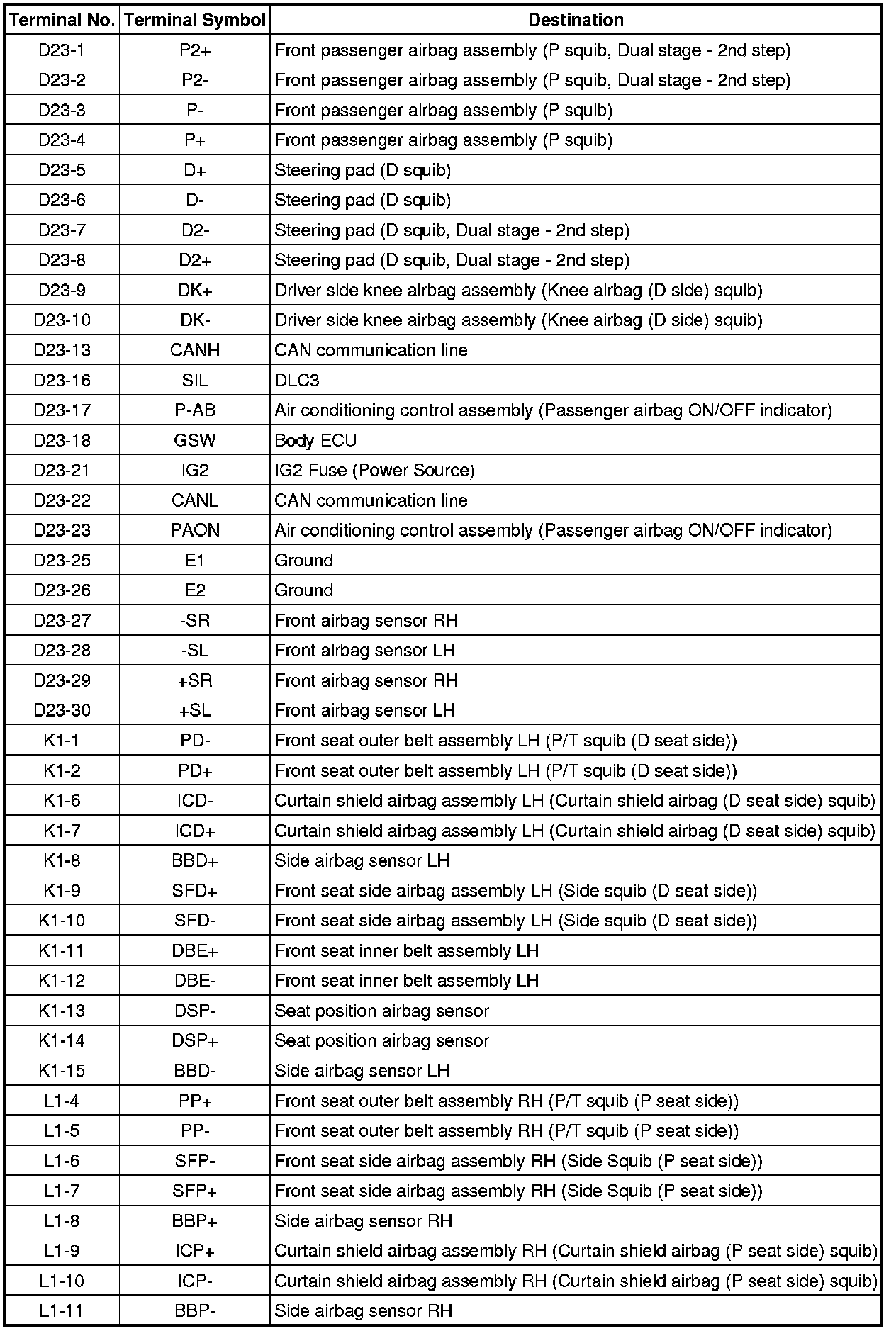

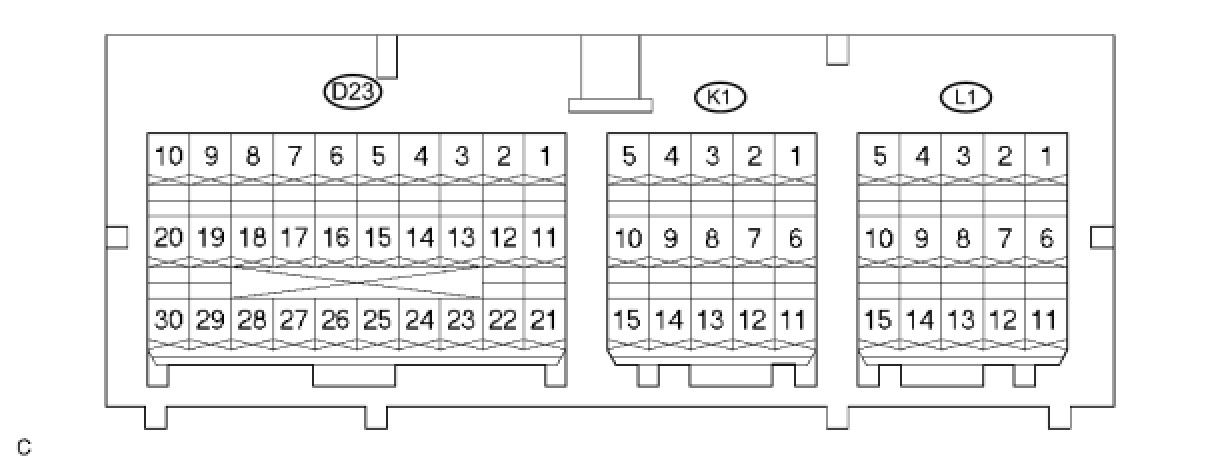

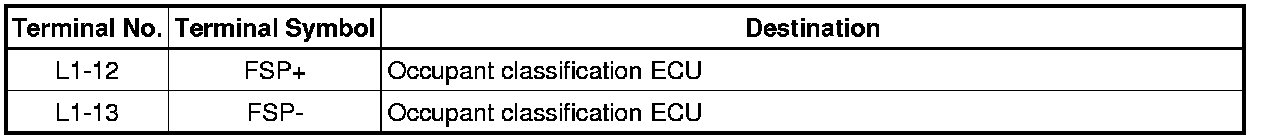

1. CENTER AIRBAG SENSOR ASSEMBLY
