SRS (Before Dec. 2010 Production)

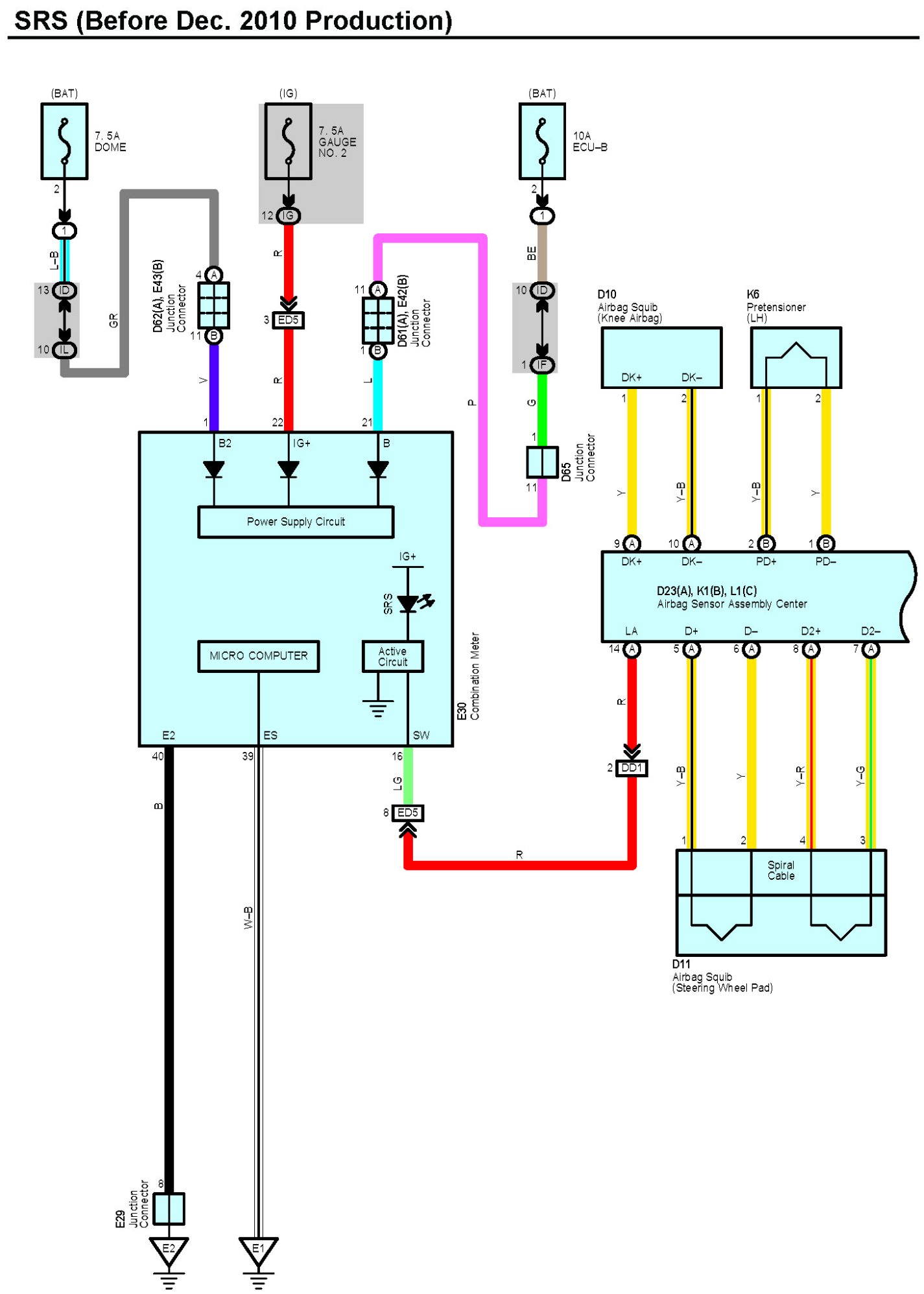

SRS Part 1:

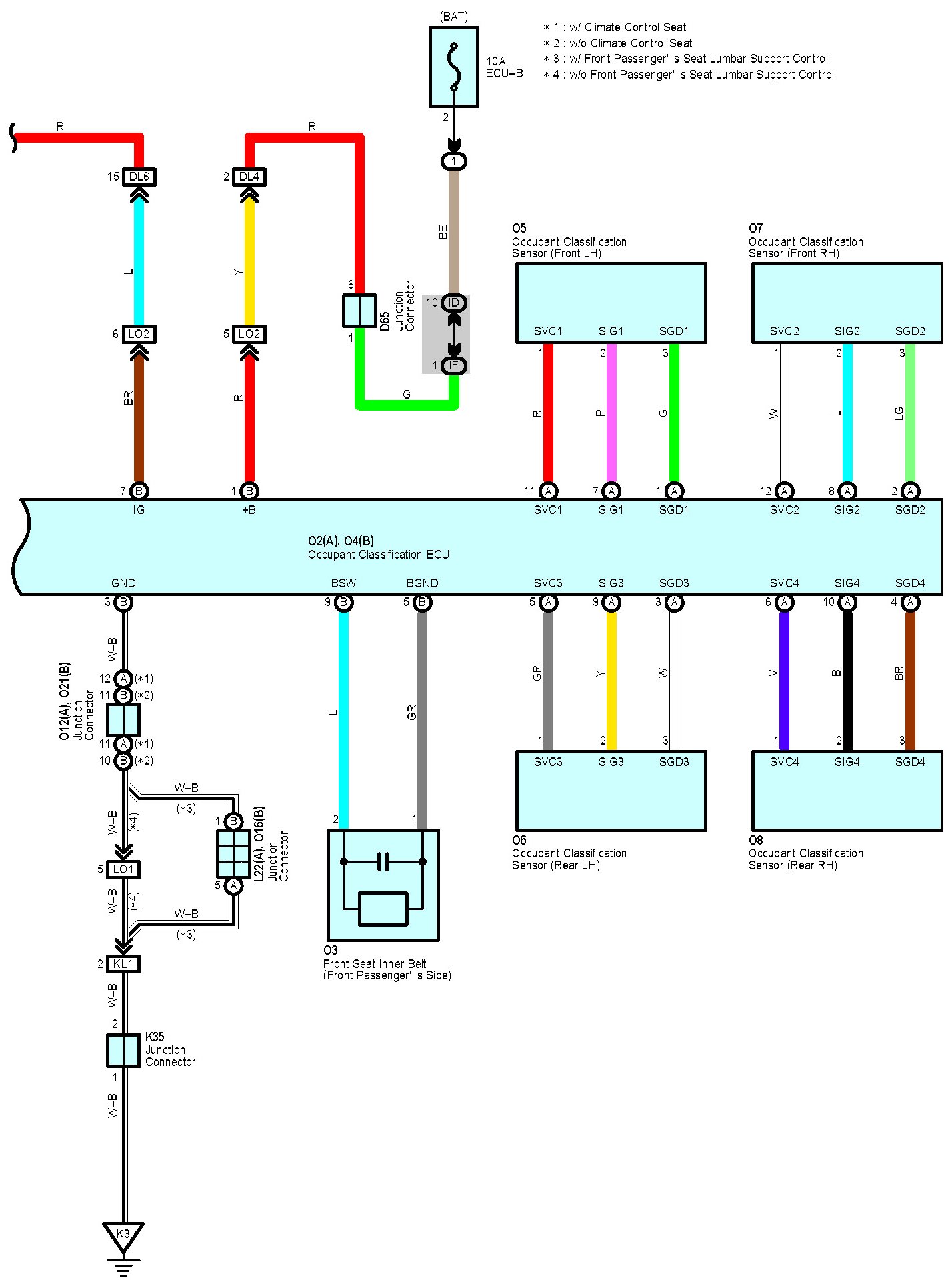

SRS Part 2:

SRS Part 3:

SRS Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connectors Views By Connector Number
