Circuit Opening Relay

2GR-FE ENGINE CONTROL SYSTEM: CIRCUIT OPENING RELAY: INSPECTION

1. INSPECT CIRCUIT OPENING RELAY

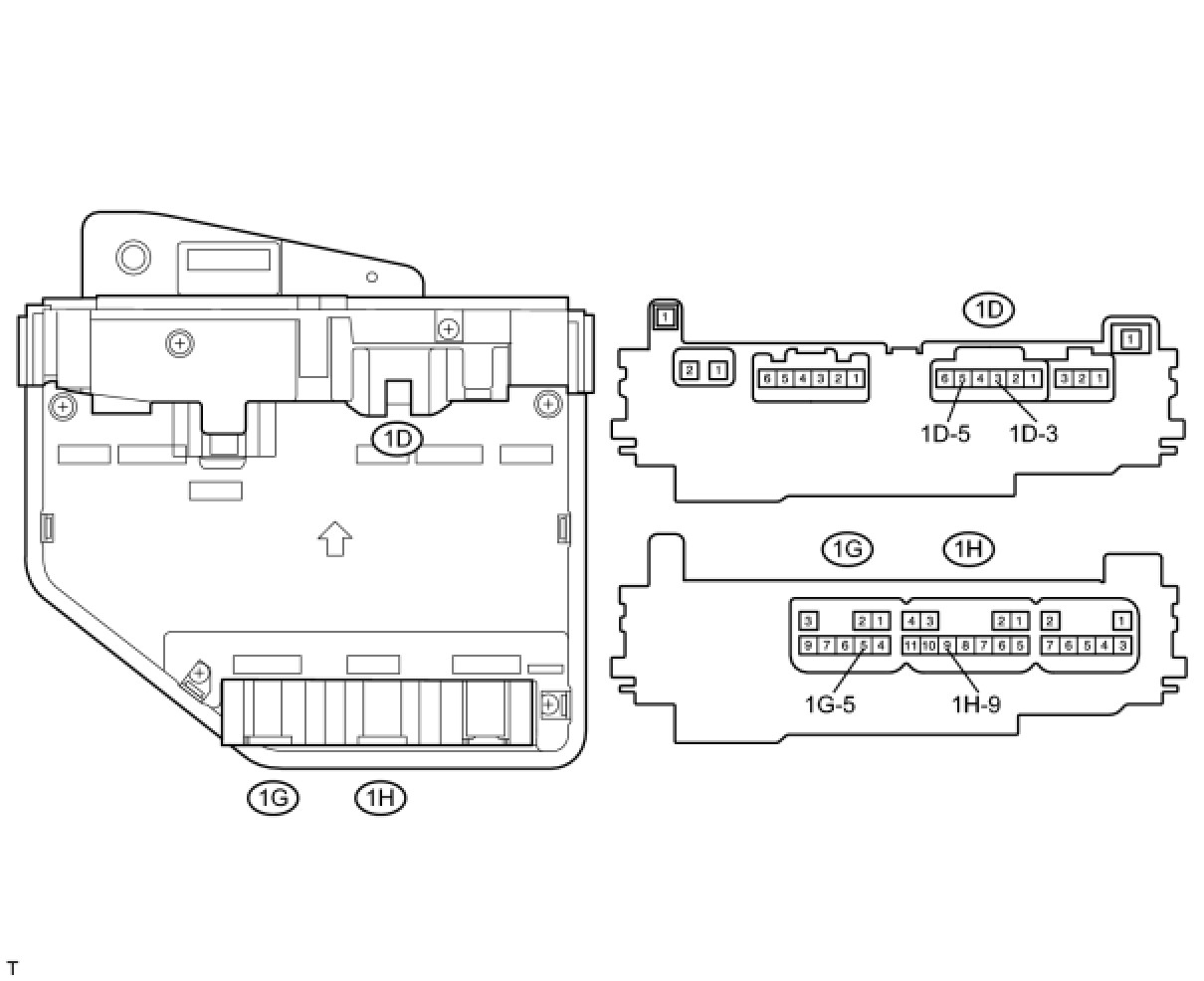

(a) Inspect circuit opening relay

(1) Using an ohmmeter, measure the resistance between the terminals.

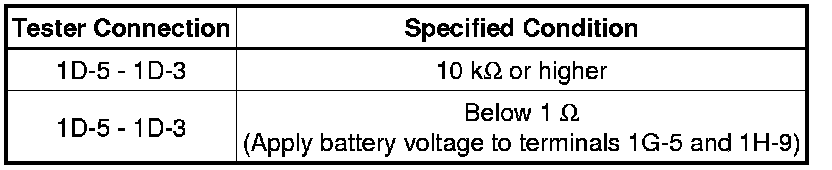

Resistance:





If the result is not as specified, replace the engine room junction block assembly.
