On-Vehicle Inspection (from 12/2010)

2GR-FE IGNITION: IGNITION SYSTEM: ON-VEHICLE INSPECTION

NOTICE:
In this section, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10°C (14°F) to 50°C (122°F). "HOT" means approximately 50°C (122°F) to 100°C (212°F).

1. INSPECT IGNITION COIL ASSEMBLY

(a) Check for DTCs DTC Check / Clear (from 12/2010).

NOTICE:
If any DTC is present, perform troubleshooting procedures for that DTC.

(b) Check that spark occurs.

(1) Remove the V-bank cover Removal (from 12/2010).

(2) Remove the intake air surge tank Removal (from 12/2010).

(3) Remove the ignition coils.

(4) Using a 16 mm (0.63 in.) plug wrench, remove the spark plugs.

(5) Install the spark plugs to each ignition coil, and connect the ignition coil connectors.

(6) Disconnect the 6 injector connectors.

(7) Ground the spark plugs.

(8) Check that spark occurs at each spark plug while the engine is being cranked.

NOTICE:
* Be sure to ground the spark plugs when checking them.
* If an ignition coil has been struck or dropped, replace it.
* Do not crank the engine for more than 2 seconds.

HINT
If spark does not occur, perform the following procedure (go to step "c").

(c) Perform the following spark test procedure (Step "c").

(1) Check that the wire harness side connector of the ignition coil is securely connected.

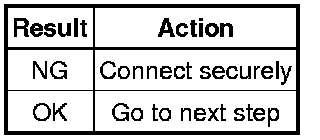

Result:





(2) Perform a speak test on each ignition coil.

1 Replace the ignition coil with igniter with a known good one.

2 Perform the spark test again.

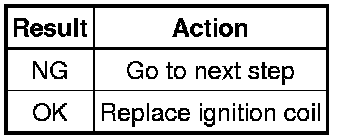

Result:





(3) Perform a spark test on each spark plug.

1 Replace the spark plug with a known good one.

2 Perform the spark test again.

Result:





(4) Check the power supply to the ignition coil.

1 Turn the engine switch on (IG).

2 Measure the voltage according to the value(s) in the table below.

Standard Voltage:

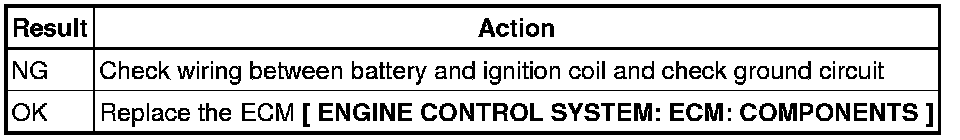

Result:





Text in Illustration





(d) Using a 16 mm (0.63 in.) plug wrench, install the spark plugs.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

(e) Install the ignition coils.

Torque : 7.5 Nm (76 kgf-cm, 66 in-lbf)

(f) Install the intake air surge tank Installation (from 12/2010).

(g) Install the V-bank cover Installation (from 12/2010).
